Knock Sensor: Replacement
- DISCHARGE FUEL SYSTEM PRESSURE (See PRECAUTION )
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- DRAIN ENGINE COOLANT
- REMOVE INTAKE MANIFOLD ASSY (See REPLACEMENT )
- REMOVE KNOCK SENSOR
- Disconnect the sensor connector.

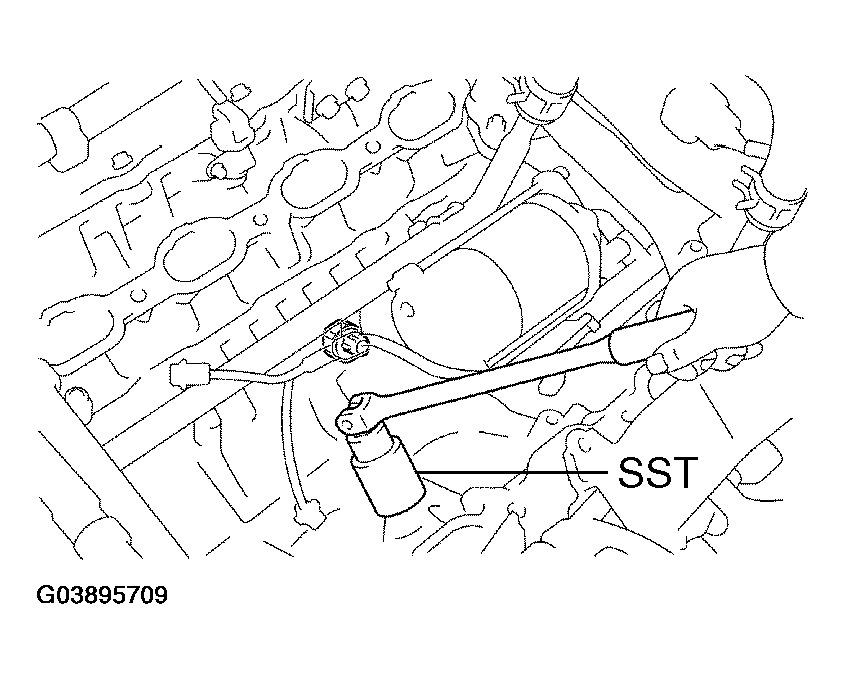

- Using SST, remove the sensor.
SST 09816-30010
- INSTALL KNOCK SENSOR
- Using SST, install the sensor.
SST 09816-30010
Torque: 44 N.m (449 kgf.cm, 32 ft.lbf)
- Connect the sensor connector.
- Using SST, install the sensor.
- INSTALL INTAKE MANIFOLD ASSY (See REPLACEMENT )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION (See INITIALIZATION
) NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- ADD ENGINE COOLANT
- CHECK FOR ENGINE COOLANT LEAKS (See COOLING SYSTEM )
- CHECK FOR FUEL LEAKS (See PRECAUTION )
