Ignition Coil: Replacement
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE V-BANK COVER
- REMOVE INTAKE AIR CONNECTOR PIPE
- REMOVE OIL LEVEL GAGE GUIDE

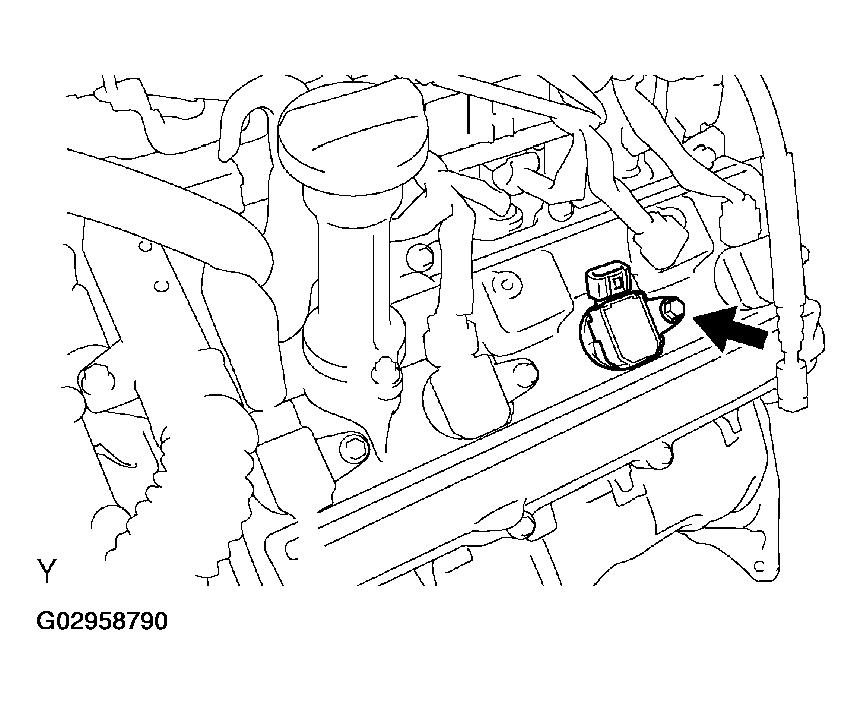

- REMOVE IGNITION COIL ASSY
- Disconnect the ignition coil connector.
- Remove the bolt and pull out the ignition coil.
- INSTALL IGNITION COIL ASSY
- Connect a new ignition coil to the spark plug, attach the ignition coil to the cylinder head cover, and install the bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
- Connect the ignition coil connector.
- Connect a new ignition coil to the spark plug, attach the ignition coil to the cylinder head cover, and install the bolt.
- INSTALL OIL LEVEL GAUGE GUIDE
- INSTALL INTAKE AIR CONNECTOR PIPE
- INSTALL V-BANK COVER
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION (See INITIALIZATION
) NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
