2006 Lexus RX 400h FWDFACTORY OEM SERVICE PROCEDURE

Crankshaft Position Sensor: Removal

  1. REMOVE ENGINE UNDER COVER NO.1 (See  REMOVAL  )
  2. REMOVE FRONT FENDER SPLASH SHIELD SUBASSEMBLY RH
    1. Remove the screw, and then open the front fender splash shield sub-assembly RH.

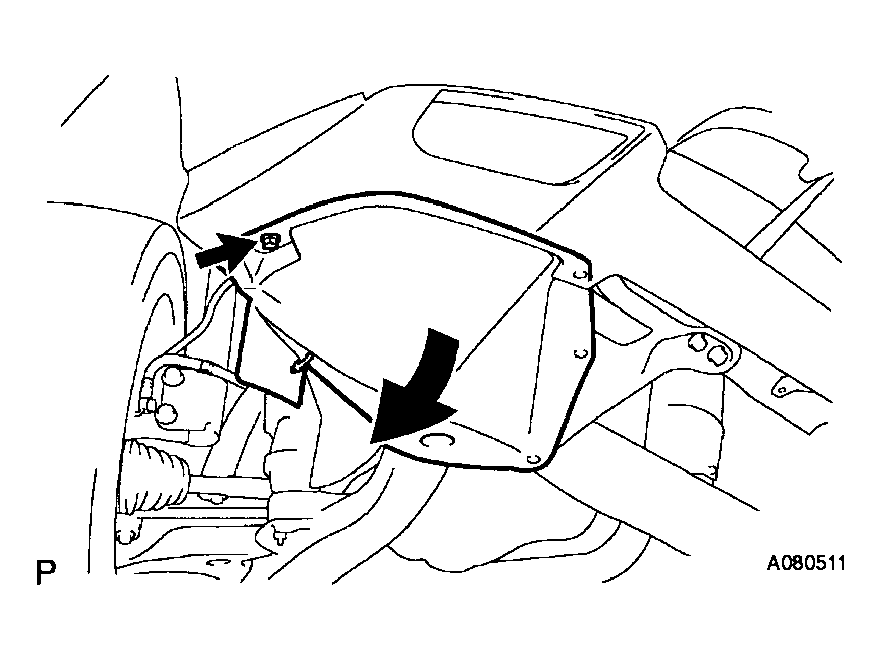

      Fig 1: Identifying Screw, And Front Fender Splash Shield Sub-Assembly RH
      G04110858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT FENDER APRON SEAL RH
    1. Remove the clip and 2 bolts, and then remove the front fender apron seal RH.

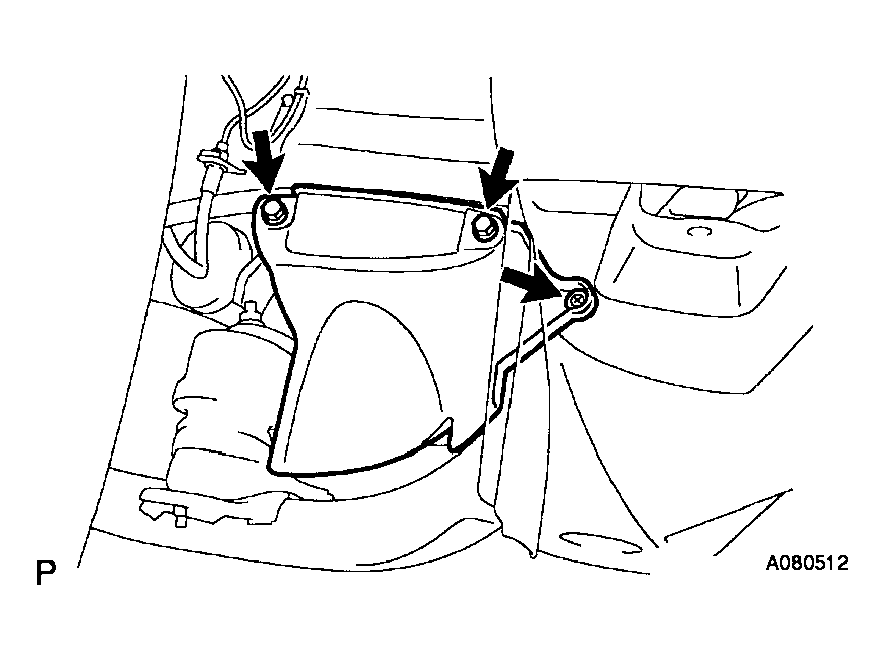

      Fig 2: Identifying Clip And Bolts
      G04110859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt, and then remove the crankshaft position sensor.

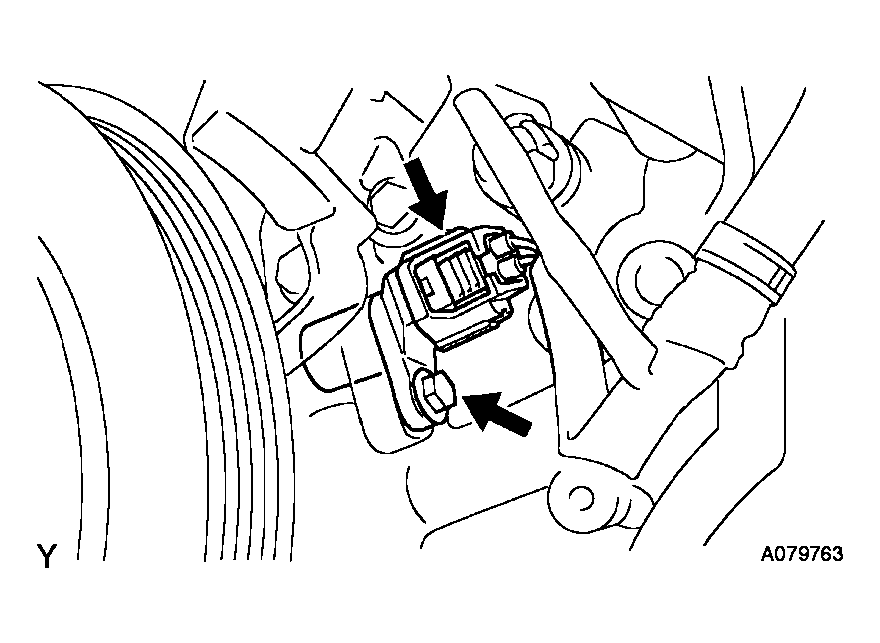

      Fig 3: Identifying Crankshaft Position Sensor And Bolts
      G04110860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
