Knock Sensor: Removal
- KNOCK CONTROL SENSOR

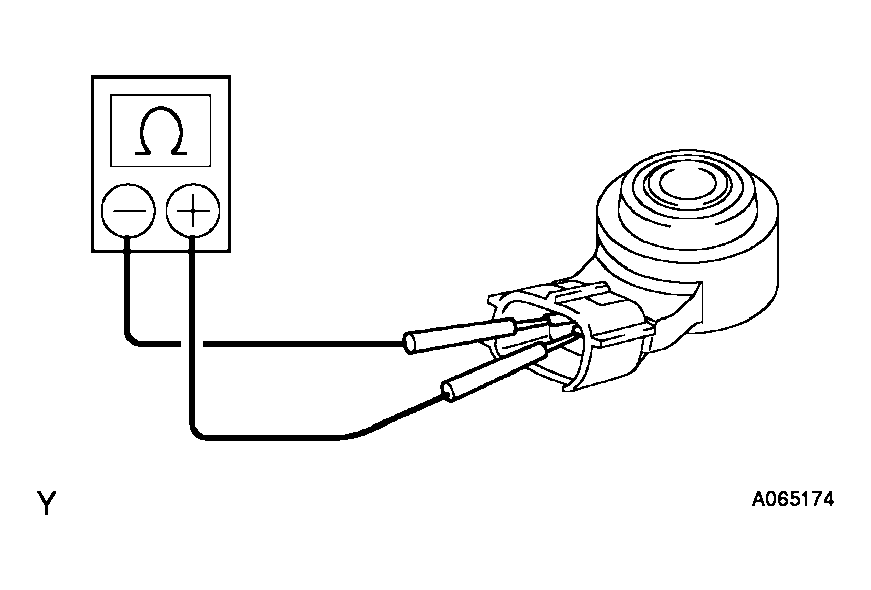

- Using an ohmmeter, measure the resistance between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Resistance:
120 to 280 kΩ at 20°C (68°F)
If the resistance is not specified, replace the sensor.

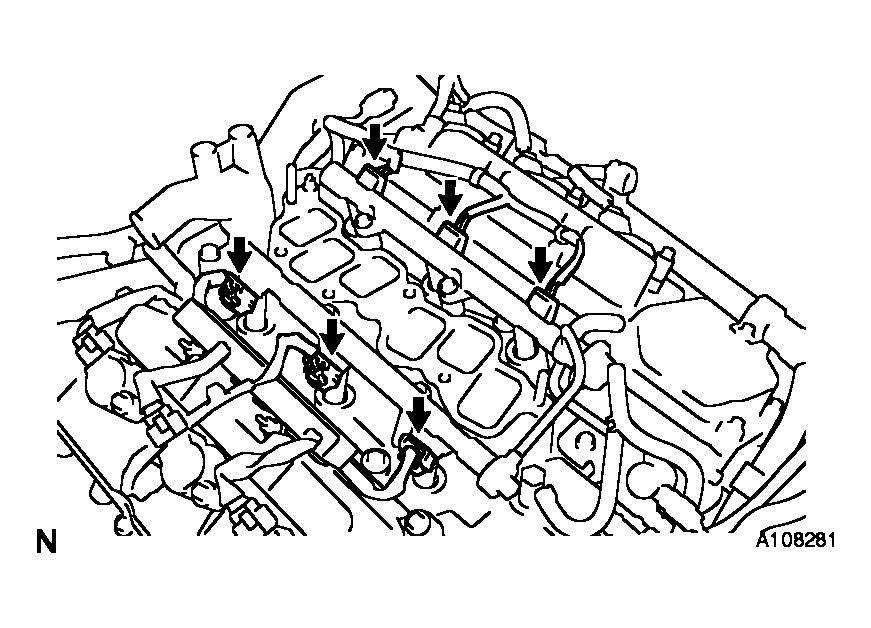

- Disconnect the 6 fuel injector connectors.

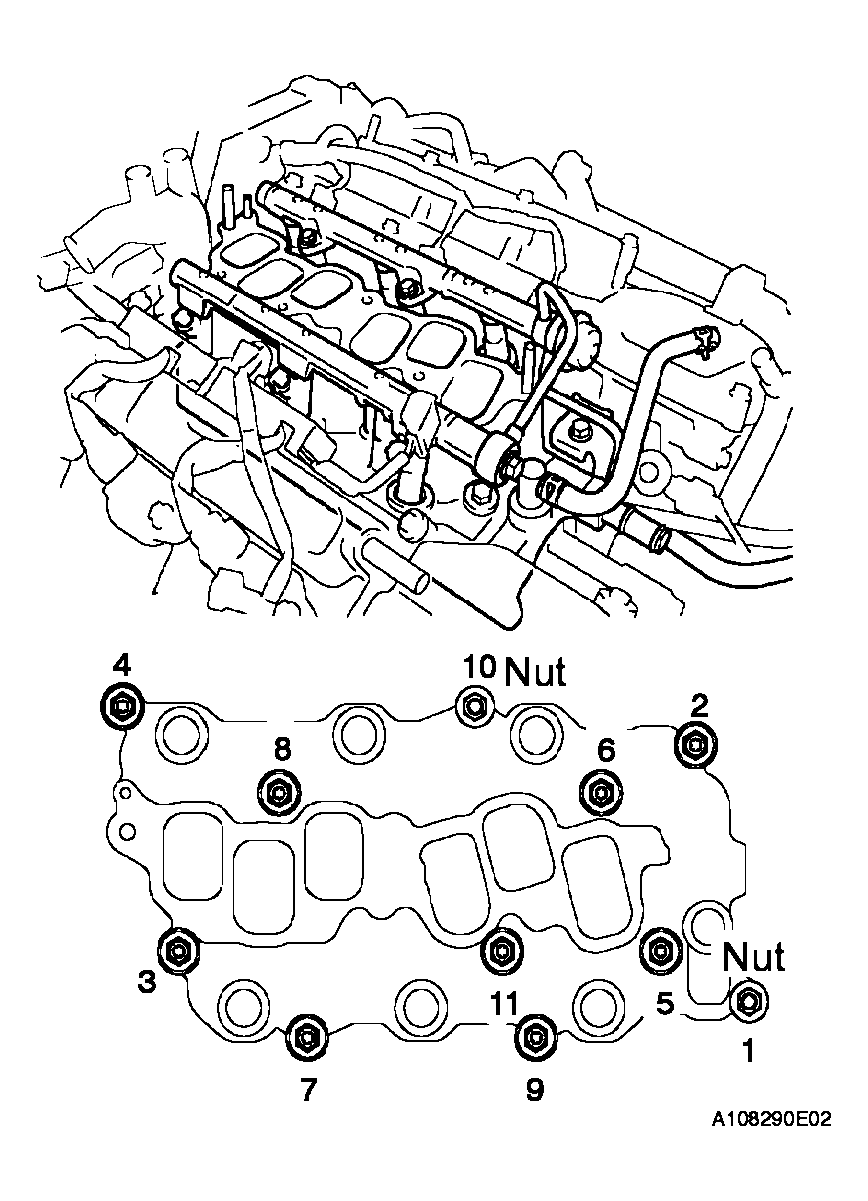

- In order to remove the intake manifold, using several steps, remove the 9 bolts and 2 nuts in the sequence shown in the illustration.
- Using an ohmmeter, measure the resistance between the terminals.
- REMOVE WATER OUTLET (See REMOVAL )
- REMOVE KNOCK CONTROL SENSOR

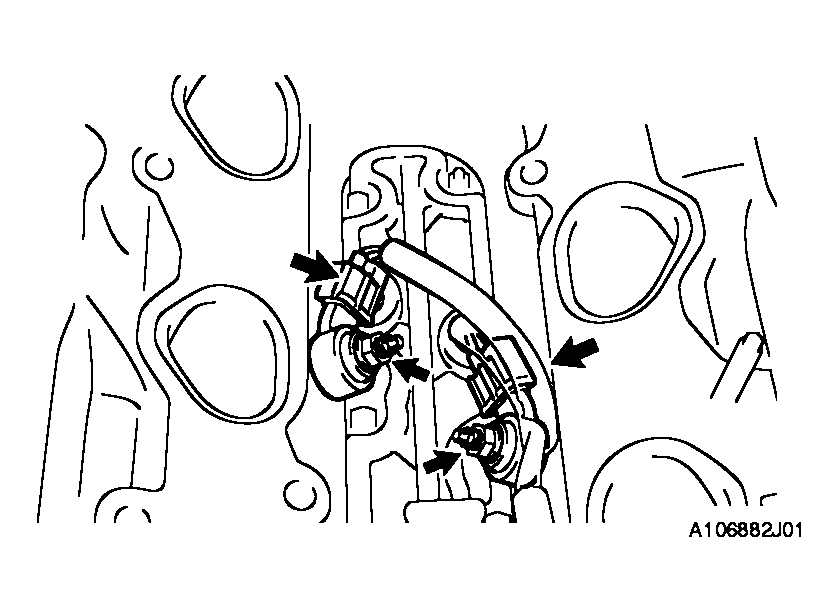

- Disconnect the 2 knock sensor connectors.
- Remove the 2 nuts, and then remove the 2 knock sensors.
