2006 Lexus RX 330 FWDFACTORY OEM SERVICE PROCEDURE

Mass Air Flow Meter: Inspection

INSPECT MASS AIR FLOW METER

Output voltage inspection.
1. Apply battery voltage across terminals 1 (+B) and 2 (E2G).
2. Connect the position (+) tester probe to terminal VG, and negative (-) tester probe to terminal E2G.
3. Blow air into the MAF meter, and check that the voltage output fluctuates.
Resistance inspection.

Using an ohmmeter, measure the resistance between terminals 4 (THA) and 5 (E2).

Resistance

MASS AIR FLOW METER

Symbols (Terminal No.)	Resistance	Temperature
THA (4) - E2 (5)	13.6 to 18.4 kΩ	-20°C (-4°F)
	2.21 to 2.69 kΩ	20°C (68°F)
	0.493 to 0.667 kΩ	60°C (140°F)

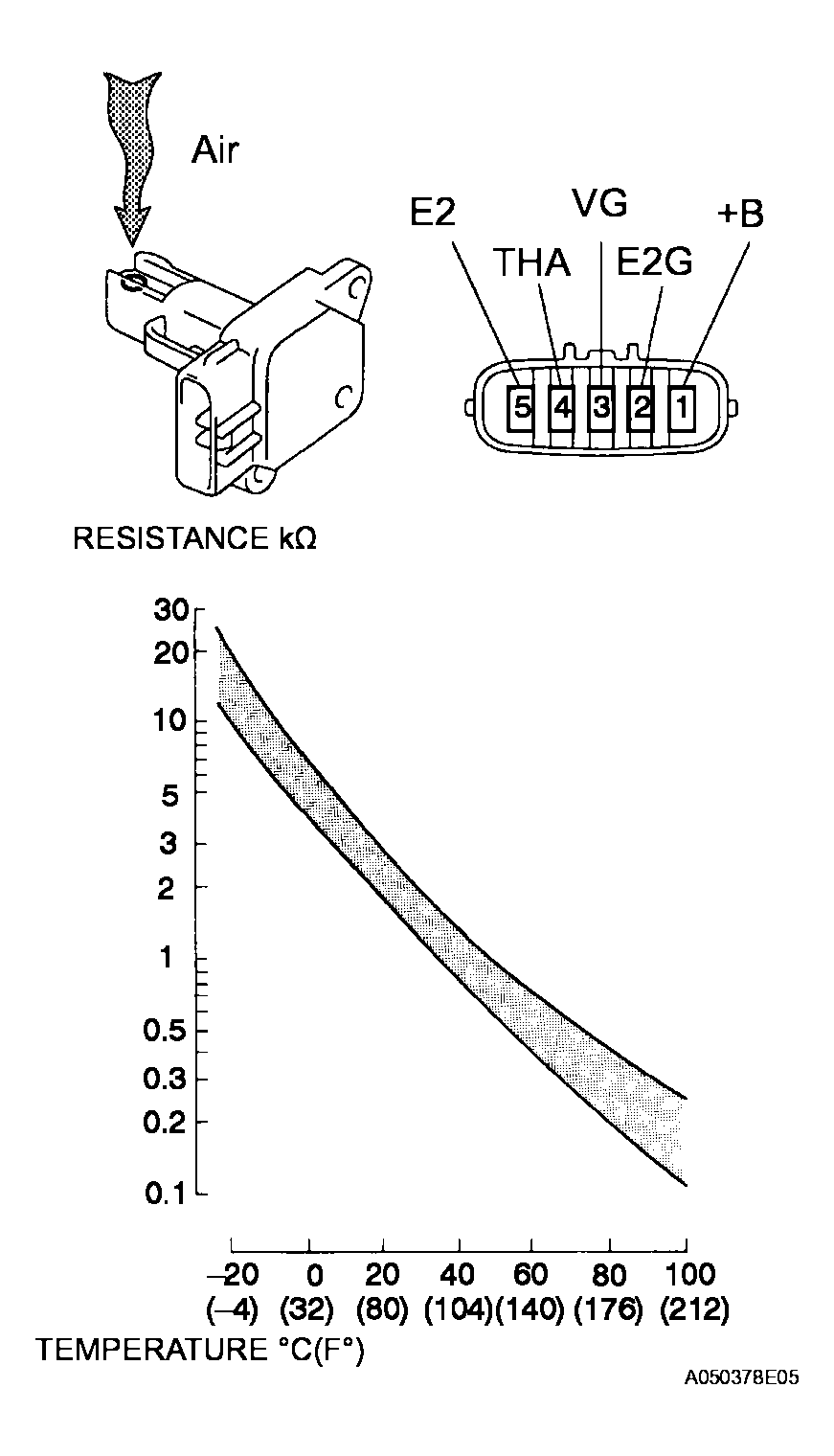

Fig 1: Inspecting Mass Air Flow Meter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
