2006 Lexus RX 330 FWDFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Rod: Inspection
- INSPECT ACCELERATOR PEDAL ROD ASSEMBLY
- Resistance inspection

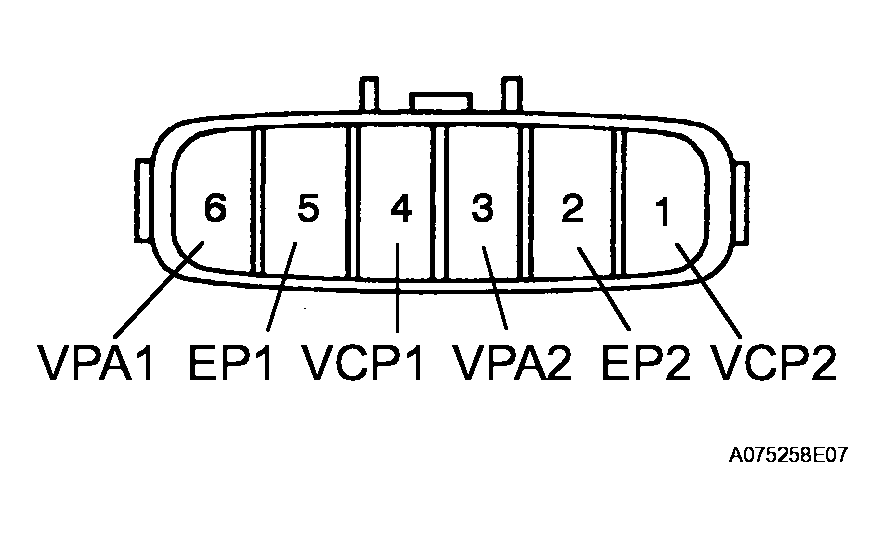

- Using an ohmmeter, measure the resistance between the terminals.
Resistance
ACCELERATOR PEDAL ROD ASSEMBLYSymbols (Terminal No.) Resistance VPA2 (3) - EP1 (5) 5.0 kΩ or less VPA1 (6) - EP2 (2) 5.0 kΩ or less VCP1 (4) - EP1 (5) 2.25 to 4.75 kΩ VCP2 (1) - EP2 (2) 2.25 to 4.75 kΩ
- Resistance inspection
