2006 Lexus RX 330 AWDFACTORY OEM SERVICE PROCEDURE

Throttle Body: Installation

  1. INSTALL THROTTLE BODY ASSEMBLY
    1. Install a new gasket to the intake air connector.
    2. TMC Made
      1. Install the throttle body with the 4 bolts.

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

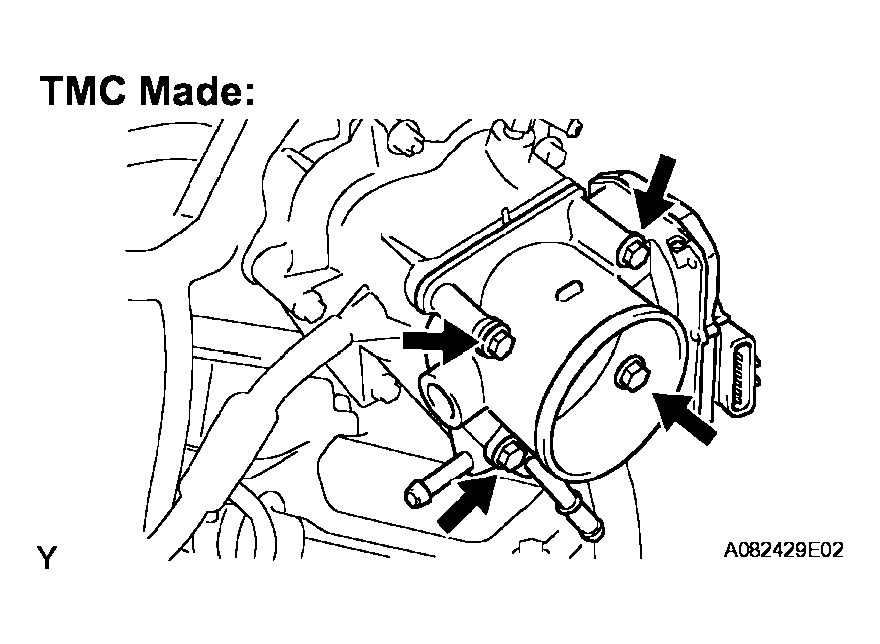

      Fig 1: Installing Throttle Body With Bolts (TMC Made)
      G04087503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. TMMWV Made
      1. Install the throttle body with the 2 bolts and 2 nuts.

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      Fig 2: Installing Throttle Body With Bolts (MWV Made)
      G04087504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the water by-pass hose No. 3.
    5. Connect the water by-pass hose No. 2.
    6. Connect the throttle motor connector.

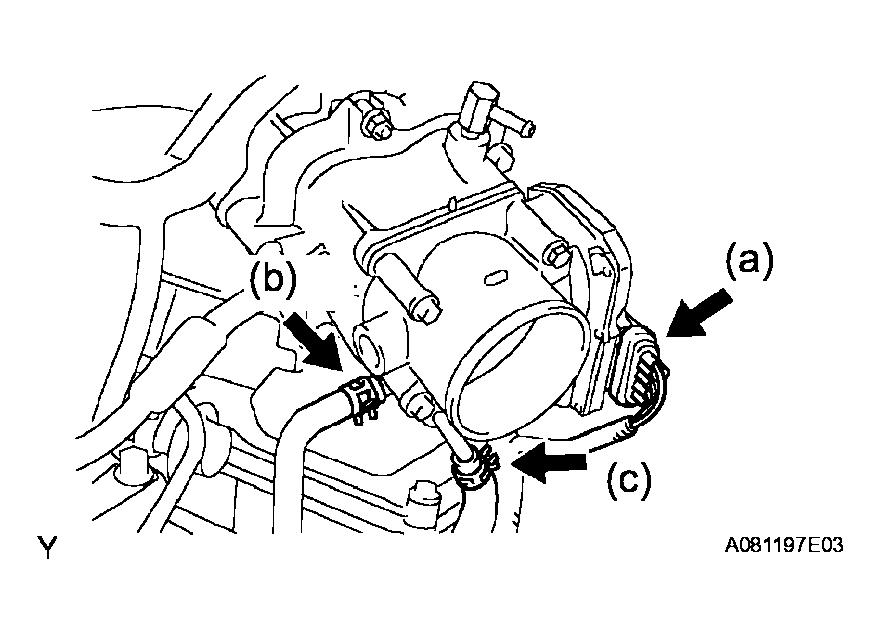

    Fig 3: Connecting Throttle Motor Connector
    G04087505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INTAKE AIR RESONATOR
  3. INSTALL AIR CLEANER ASSEMBLY (See  INSTALLATION  )
  4. INSTALL AIR CLEANER INLET NO. 2 (See  INSTALLATION  )
  5. CHECK CONNECTION OF VACUUM HOSE (See  INSTALLATION  )
  6. ADD ENGINE COOLANT (See  COOLANT  )
  7. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
  8. INSTALL V-BANK COVER SUB-ASSEMBLY
    1. Fit the 2 retainers and install the V-bank cover.
    2. Using a socket hexagon wrench 5, tighten the 3 nuts.

    Torque: 7.9 N*m (81 kgf*cm, 70 in.*lbf)
