2006 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Speed Sensor: Removal

REMOVE SPEEDOMETER SENSOR
1. Disconnect the sensor connector.

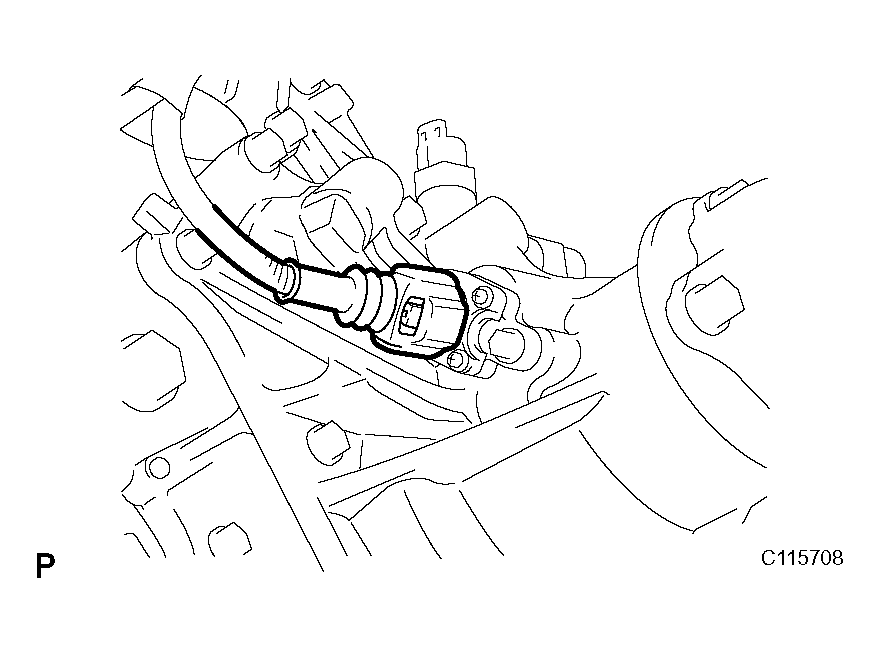

  Fig 1: Identifying Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and the sensor.
3. Remove the clip and the driven gear from the sensor.
4. Remove the O-ring from the sensor.

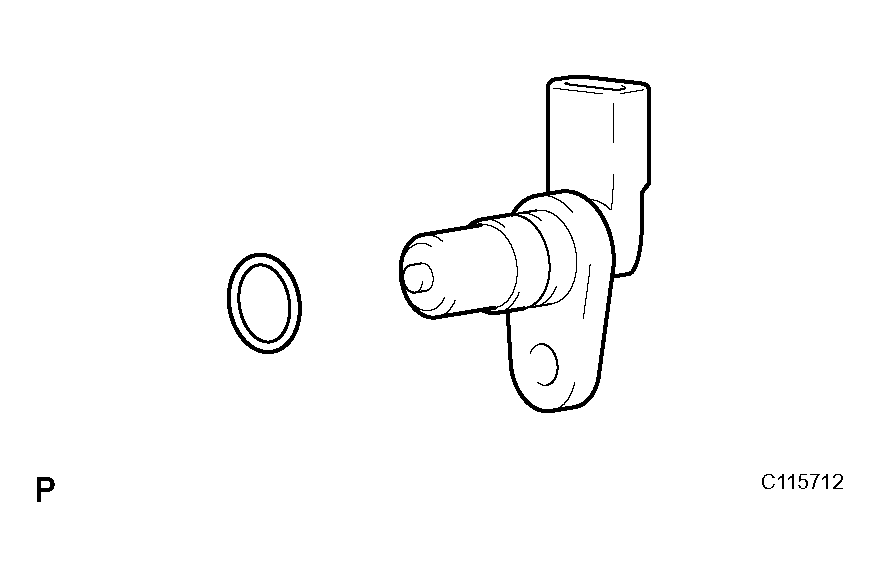

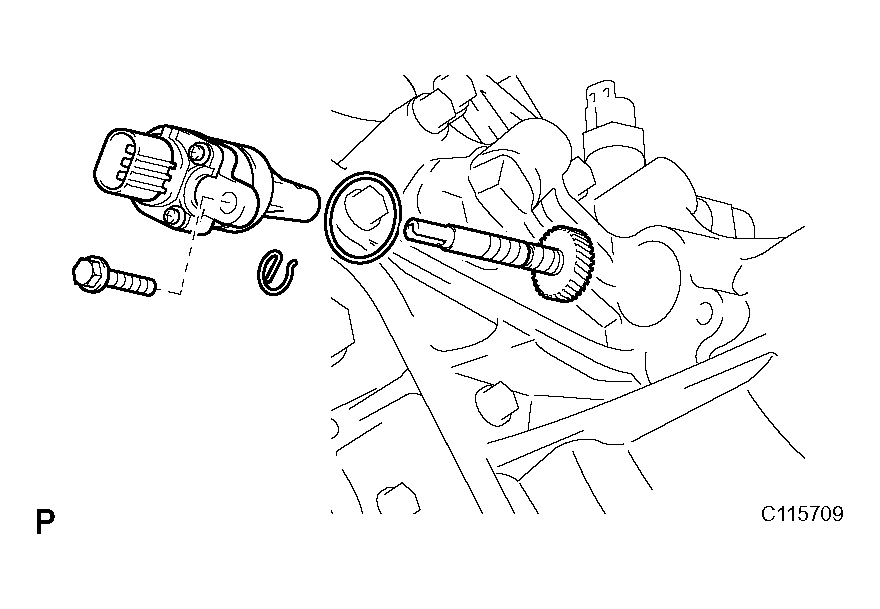

Fig 2: Removing O-Ring From Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION REVOLUTION SENSOR (NT) AND (SP2)
1. Disconnect the sensor connectors.
2. Remove the 2 bolts, revolution sensor (SP2) and (NT).

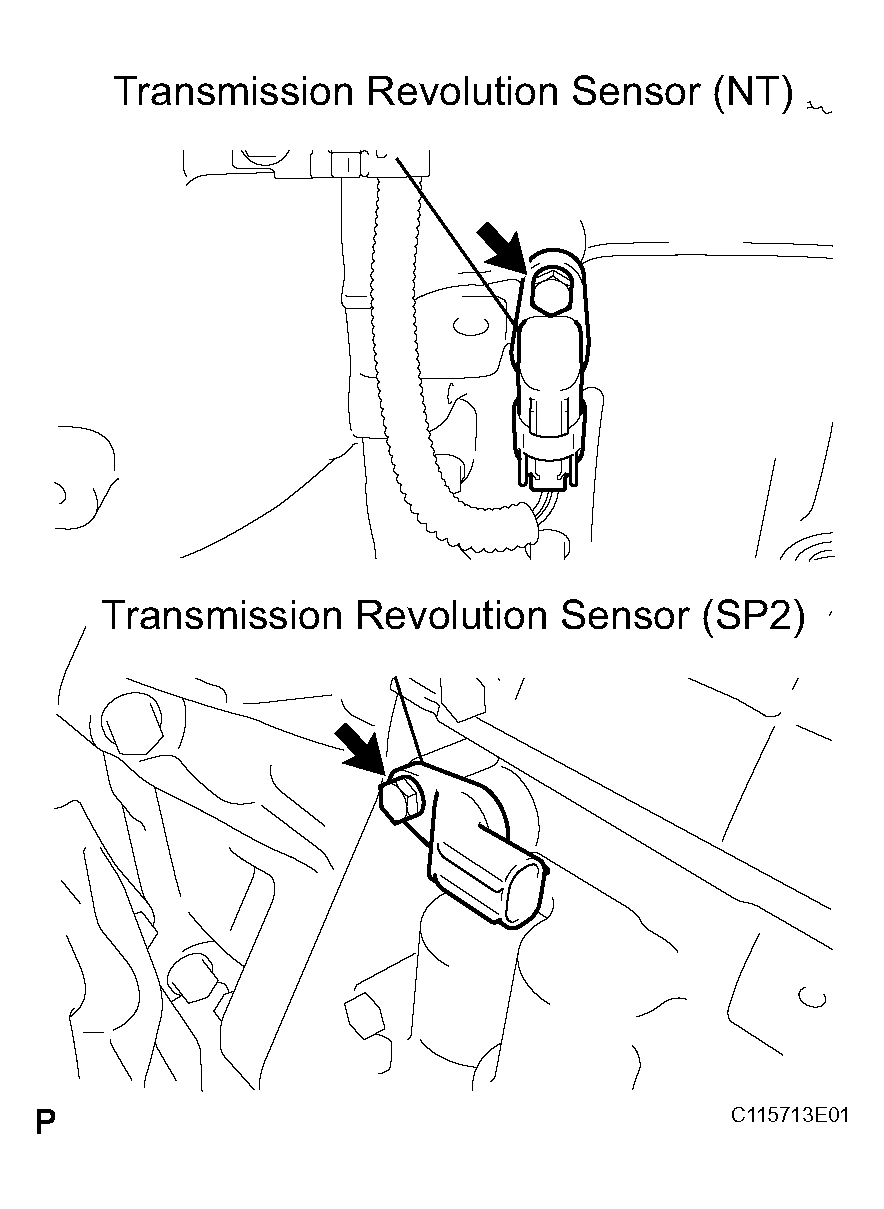

  Fig 3: Identifying Bolts, Revolution Sensor (SP2) And (NT)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 O-rings from the revolution sensor (SP2) and (NT).
Fig 4: Removing 2 O-Rings From Revolution Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
