2006 Lexus LX 470FACTORY OEM SERVICE PROCEDURE
Speed Sensor: Inspection
- INSPECT TRANSMISSION REVOLUTION SENSOR (NT)
- Disconnect the sensor connector from the transmission.

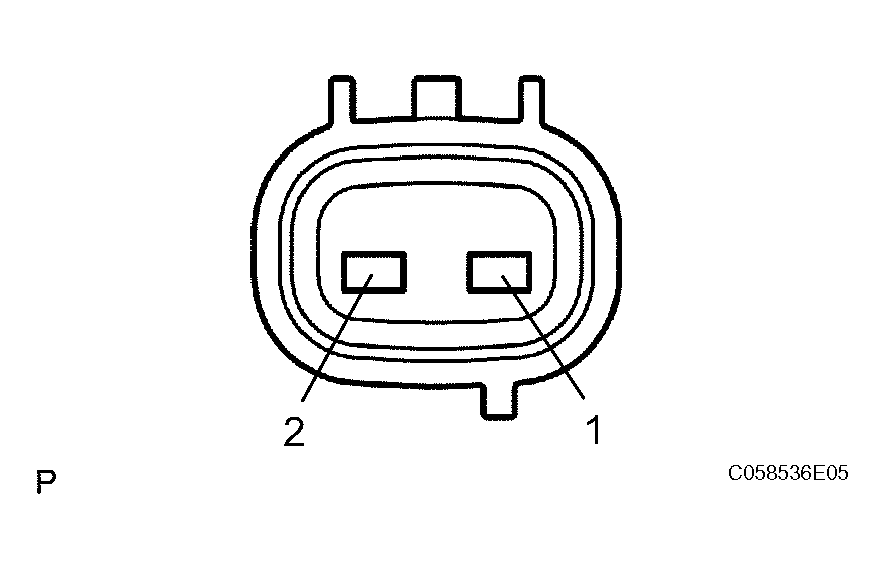

- Measure the resistance of the sensor.
Standard resistance
OSCILLOSCOPE REFERENCE CHARTTester Connection Condition Specified Condition 1 - 2 20°C (68°F) 560 to 680 Ω - INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)
- Disconnect the sensor connector from the transmission.
- Measure the resistance of the sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
MONITOR STRATEGY CHARTTester Connection Condition Specified Condition 1 - 2 20°C (68°F) 560 to 680 Ω
