2006 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Front Speed Sensor: Installation

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

INSTALL FRONT SPEED SENSOR LH
1. Install the speed sensor to the steering knuckle with the bolt.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.
2. Install the sensor harness to the steering knuckle and upper arm with the resin clip and 4 clamp bolts.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

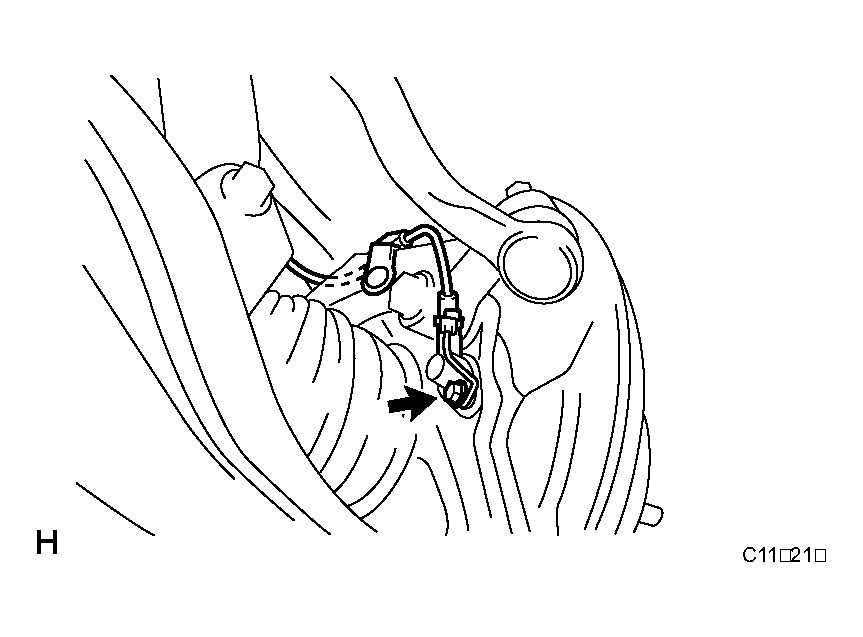

  Fig 1: Identifying Speed Sensor, Steering Knuckle And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
