2006 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Transmission Revolution Sensor: Replacement

REMOVE TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
1. Disconnect the transmission revolution sensor connector.
2. Remove the bolt and transmission revolution sensor.
3. Remove the O-ring from the transmission revolution sensor.

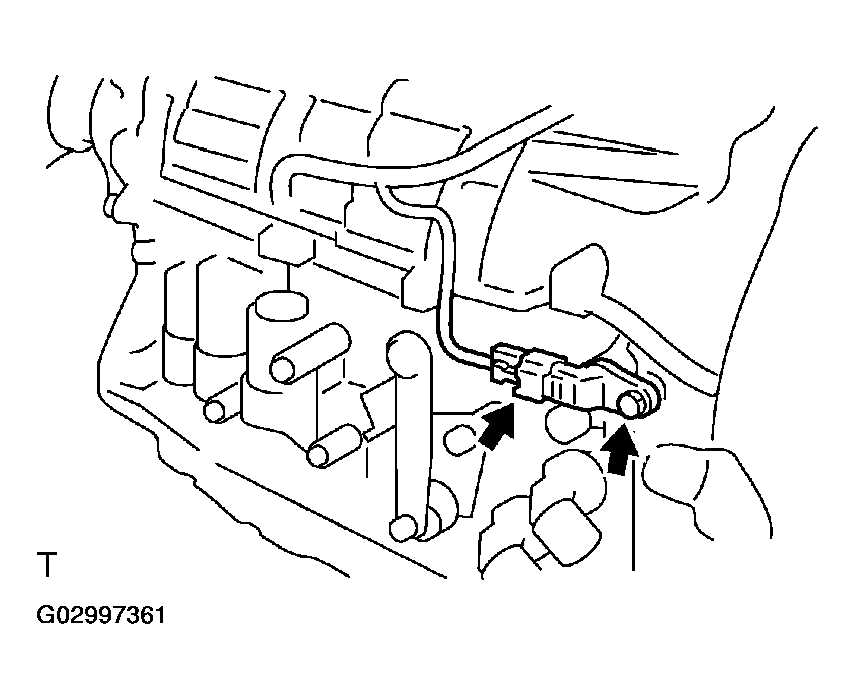

Fig 1: Removing Bolt And Transmission Revolution Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
1. Disconnect the transmission revolution sensor connector.
2. Remove the bolt and transmission revolution sensor.
3. Remove the O-ring from the transmission revolution sensor.

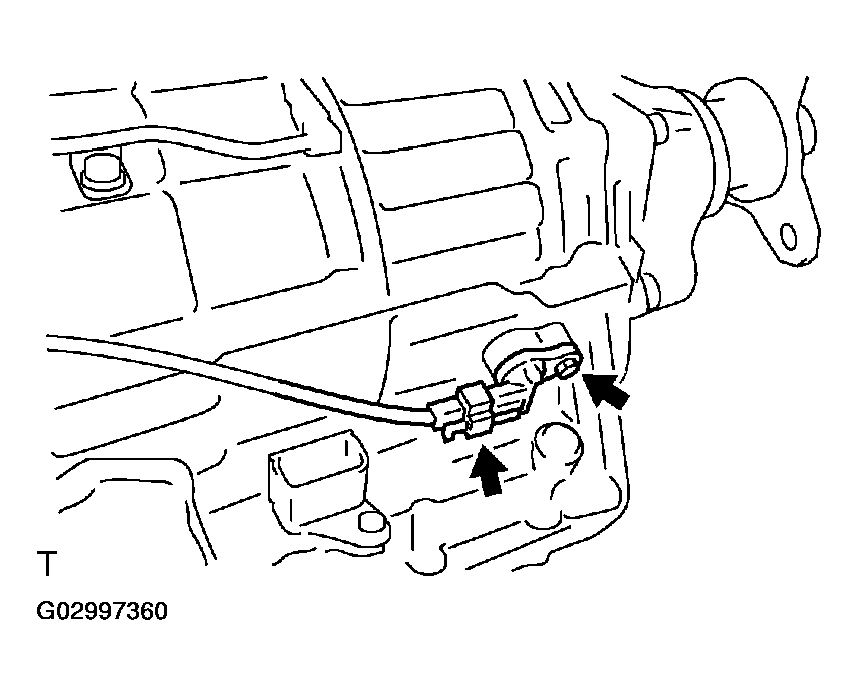

Fig 2: Removing Bolt And Transmission Revolution Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION REVOLUTION SENSOR (SP2 SENSOR)
1. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
2. Install the transmission revolution sensor with the bolt.
  1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
3. Connect the transmission revolution sensor connector.

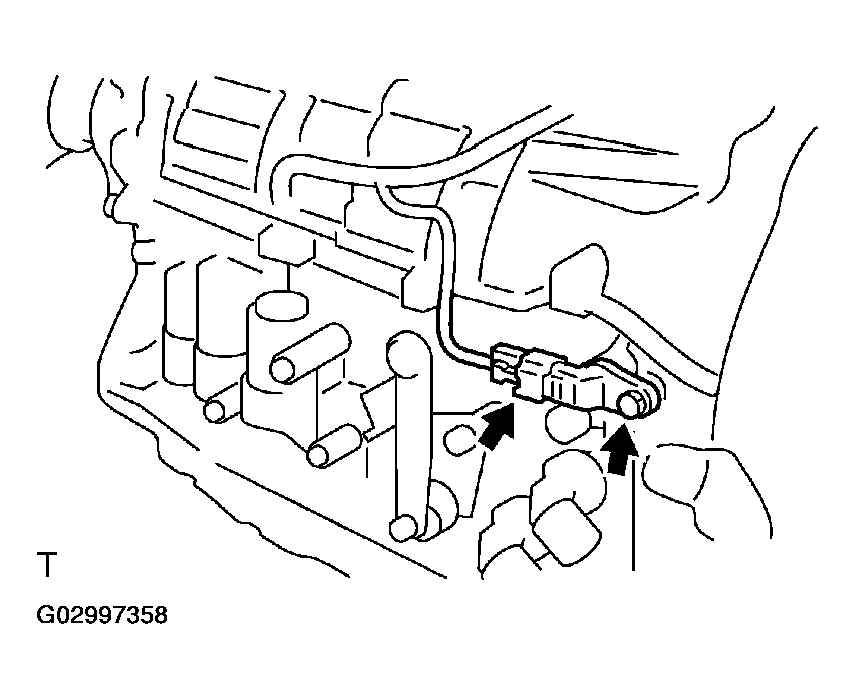

Fig 3: Installing Transmission Revolution Sensor With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION REVOLUTION SENSOR (NC0 SENSOR)
1. Coat a new O-ring with ATF and install it to the transmission revolution sensor.
2. Install the transmission revolution sensor with the bolt.
  1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
3. Connect the transmission revolution sensor connector.
Fig 4: Installing Transmission Revolution Sensor With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
