2006 Lexus LS 430FACTORY OEM SERVICE PROCEDURE

Inspection Procedure

  1. PERFORM ACTIVE TEST (OPERATE C/OPN RELAY)
    1. Connect the hand-held tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
    2. Turn the ignition switch ON and turn the hand-held tester ON.
    3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / FUEL PUMP / SPD.
    4. Check the relay operation while operating it using the hand-held tester.

    OK: Operating noise can be heard from the relay.

    OK: Go to step   6

    NG: Go to next step

  2. INSPECT FUSE (IGN)
    1. Remove the IGN fuse from the engine room No. 1 R/B.
    2. Measure the resistance of the fuse.

    Standard: Below 1 Ω

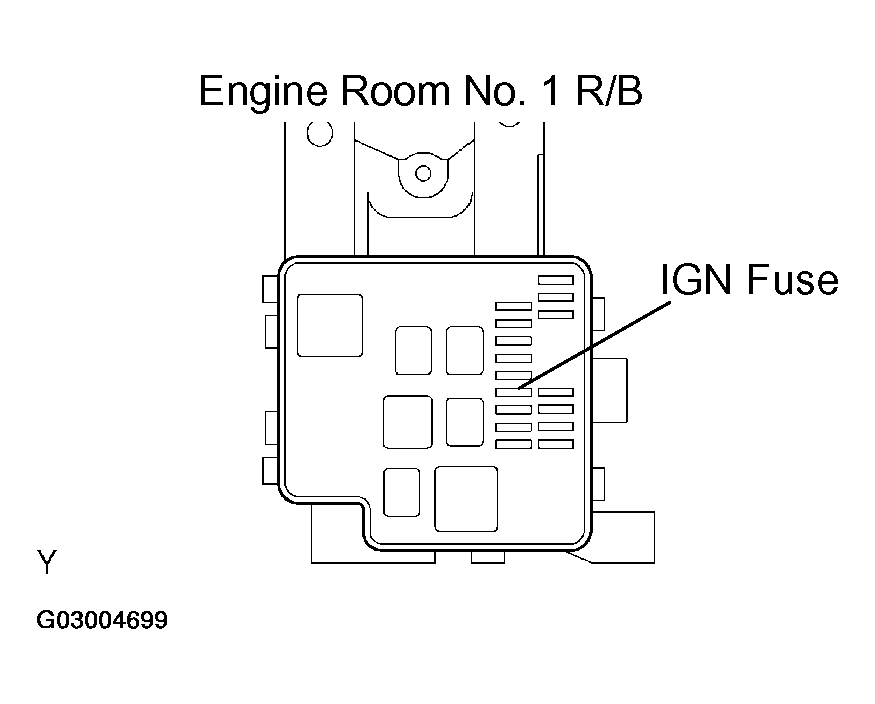

    Fig 1: Identifying IGN Fuse
    G03004699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE FUSE

    OK: Go to next step

  3. INSPECT RELAY (Marking: C/OPN)
    1. Remove the C/OPN relay from the engine room No. 1 R/B.
    2. Measure the resistance of the relay.

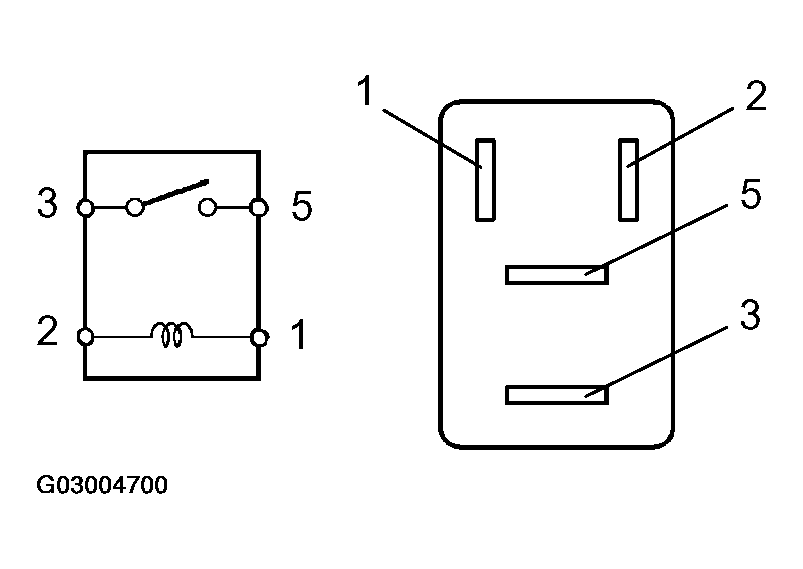

    Fig 2: Inspecting C/OPN Relay
    G03004700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    C/OPN RELAY - RESISTANCE TABLE

    Tester Connection Specified Condition
    3 - 5 10 kΩ or higher
    3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

    NG: REPLACE RELAY

    OK: Go to next step

  4. INSPECT RELAY (Marking: IG2)
    1. Remove the IG2 relay from the engine room No. 1 R/B.
    2. Measure the resistance of the relay.
      3. Fig 3: Inspecting IG2 Relay
      G03004701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    IG2 RELAY - RESISTANCE TABLE

    Tester Connection Specified Condition
    3 - 5 10 kΩ or higher
    3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

    NG: REPLACE RELAY

    OK: Go to next step

  5. CHECK ECM (FC VOLTAGE)
    1. Turn the ignition switch ON.
    2. Measure the voltage of the ECM connector.

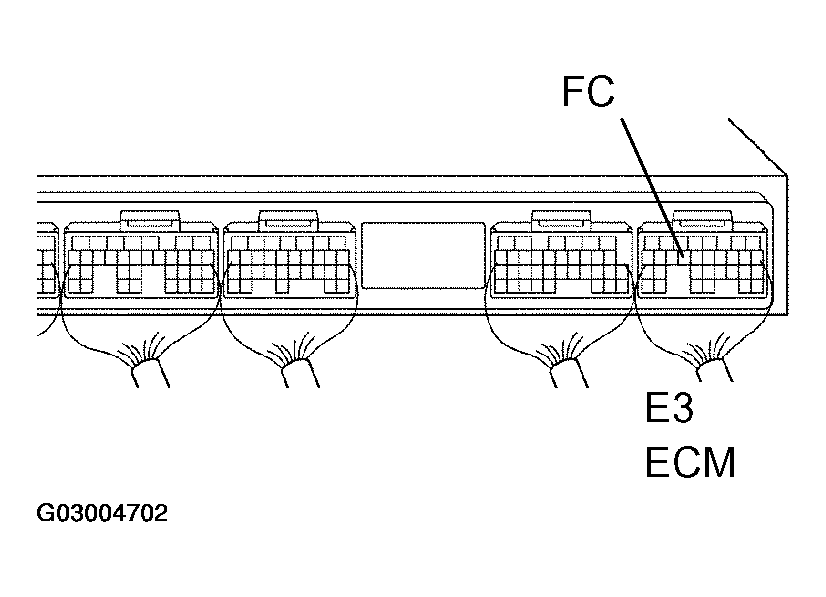

      3. Fig 4: Identifying ECM Connector Terminal
      G03004702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    ECM CONNECTOR - VOLTAGE TABLE

    Tester Connection Specified Condition
    E3-14 (FC) - Body ground 9 to 14 V

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: REPLACE ECM (See  REPLACEMENT  )

  6. INSPECT RELAY (Marking: F/PMP)
    1. Remove the F/PMP relay from the engine room No. 1 R/B.
    2. Measure the resistance of the relay.

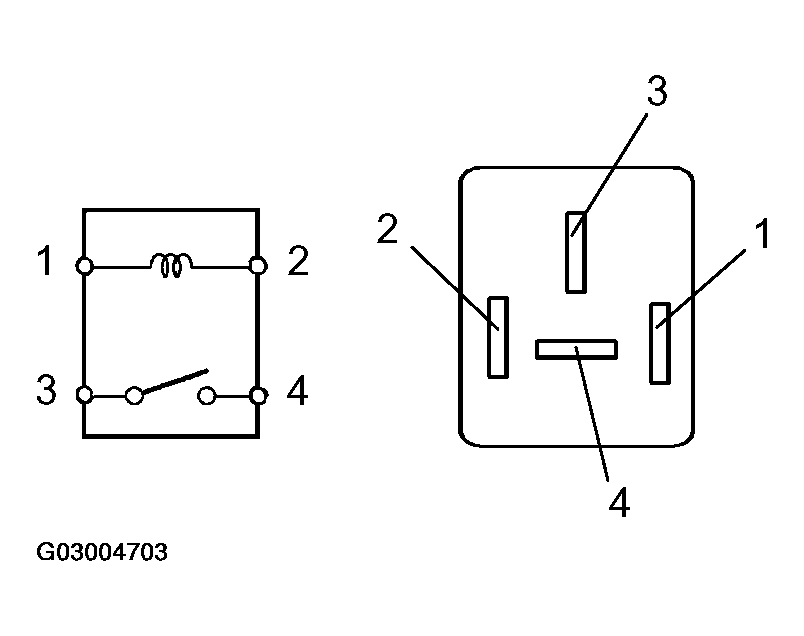

      3. Fig 5: Inspecting F/PMP Relay
      G03004703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    F/PMP RELAY - RESISTANCE TABLE

    Tester Connection Specified Condition
    3 - 4 Below 1 Ω
    3 - 4 10 kΩ or more (when battery voltage is applied to terminals 1 and 2)

    NG: REPLACE RELAY

    OK: Go to next step

  7. INSPECT FUEL PUMP
    1. Check the resistance of the fuel pump.
      1. Measure the resistance between terminals 4 and 5.

      Standard: 0.2 to 3.0 Ω at 20°C (68°F)

    2. Check the operation of the fuel pump.
      1. Apply battery voltage to both the terminals. Check that the pump operates.
    NOTE:
    • These tests must be done quickly (within 10 seconds) to prevent the coil from burning out.
    • Keep fuel pump as far away from the battery as possible.
