2006 Lexus LS 430FACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Rod ASSY: Replacement
- REMOVE ACCELERATOR PEDAL ROD ASSY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

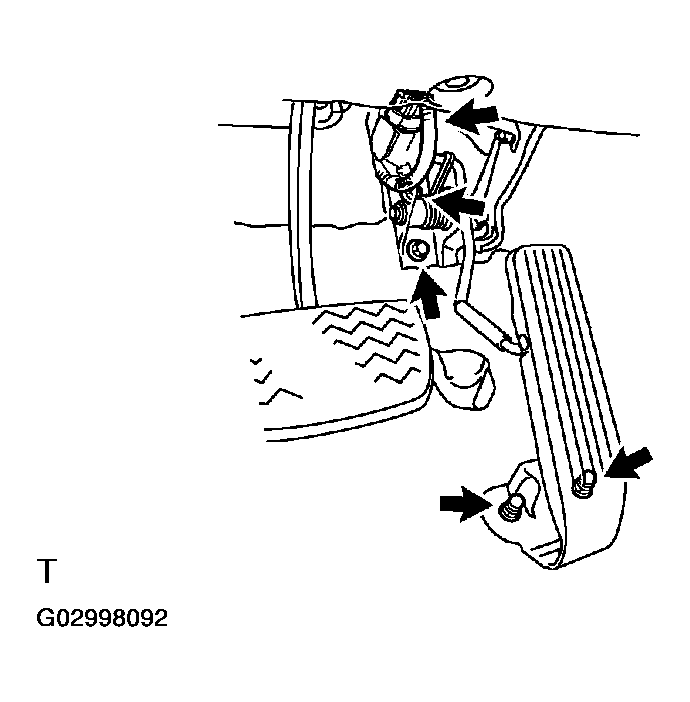

- Disconnect the accelerator pedal position sensor connector.
- Remove the 2 bolts, 2 nuts and accelerator pedal rod.
- INSTALL ACCELERATOR PEDAL ROD ASSY
- Connect the accelerator pedal position sensor connector.
- Install the accelerator pedal rod with the 2 bolts and 2 nuts.
- Torque: 7.5 N.m (76 kgf.cm, 66 in..lbf)
