Window Defogger System: Inspection

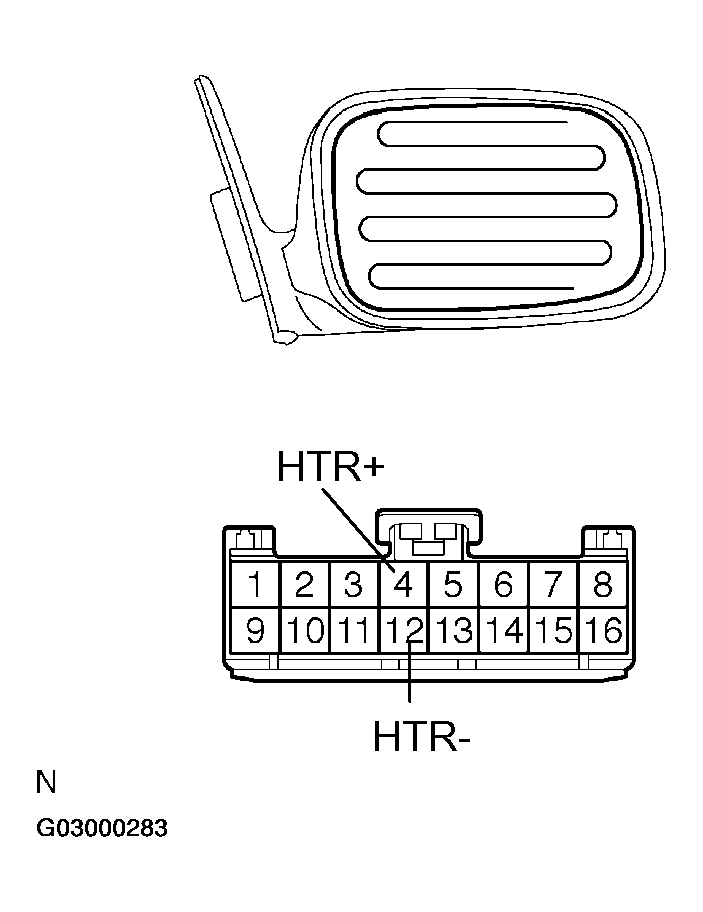

- INSPECT OUTER REAR VIEW MIRROR ASSY LH
- Apply battery voltage and check operation of the mirror heater.
OK:
OUTER REAR VIEW MIRROR ASSY LH - REFERENCE TABLEMeasurement Condition Specified Condition Battery positive (+) -> Terminal R39-4 (HTR+) Mirror becomes warm Battery negative (-) -> Terminal R39-12 (HTR-) If the result is not as specified, replace the mirror assy.

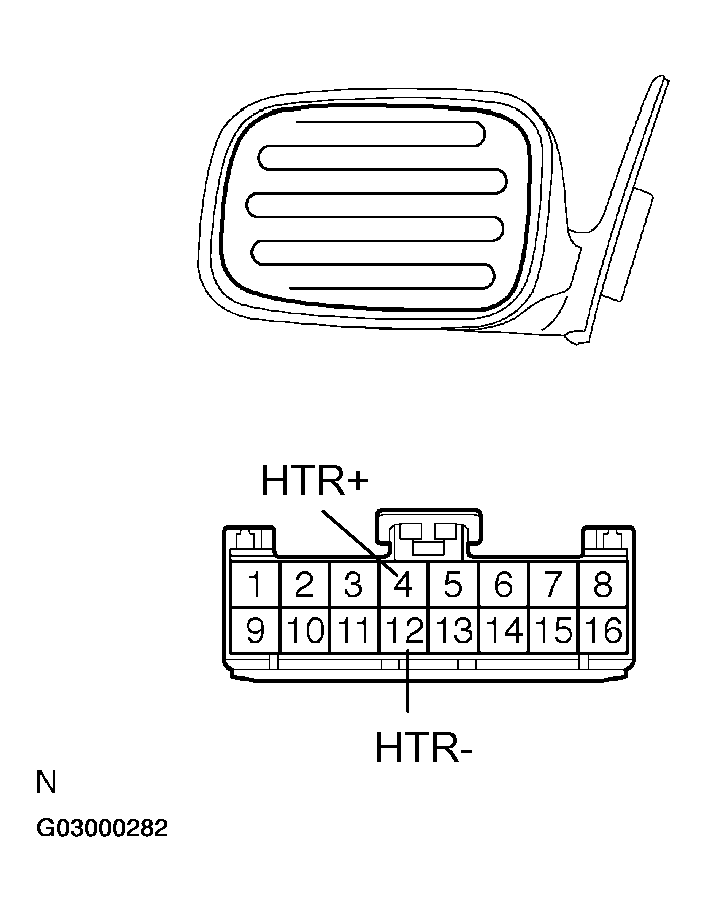

- INSPECT OUTER REAR VIEW MIRROR ASSY RH
- Apply battery voltage and check operation of the mirror heater.
OK:
OUTER REAR VIEW MIRROR ASSY RH - REFERENCE TABLEMeasurement Condition Specified Condition Battery positive (+) -> Terminal R40-4 (HTR+) Mirror becomes warm Battery negative (-) -> Terminal R40-12 (HTR-) If the result is not as specified, replace the mirror assy.
- INSPECT BACK WINDOW (DEFOGGER WIRE) NOTE:
- When cleaning the glass, wipe the glass along the wire using a soft and dry cloth. Take care not to damage the wires.
- Do not use detergents or glass cleaners that have abrasive ingredients.
- When measuring voltage, wrap a piece of tin foil around the tip of the negative tester probe and press the foil against the wire with your finger, as shown in Fig 3 .
