2006 Lexus IS 350FACTORY OEM SERVICE PROCEDURE
Speed Sensor: Removal

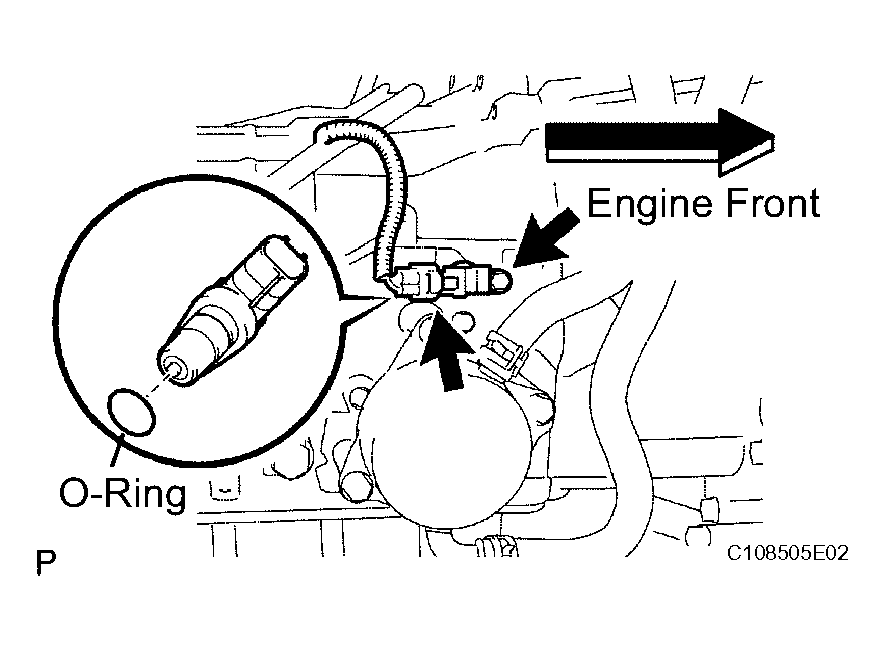

- REMOVE TRANSMISSION REVOLUTION SENSOR (NT)
- Disconnect the transmission revolution sensor connector.
- Remove the bolt and transmission revolution sensor.
- Remove the O-ring from the transmission revolution sensor.

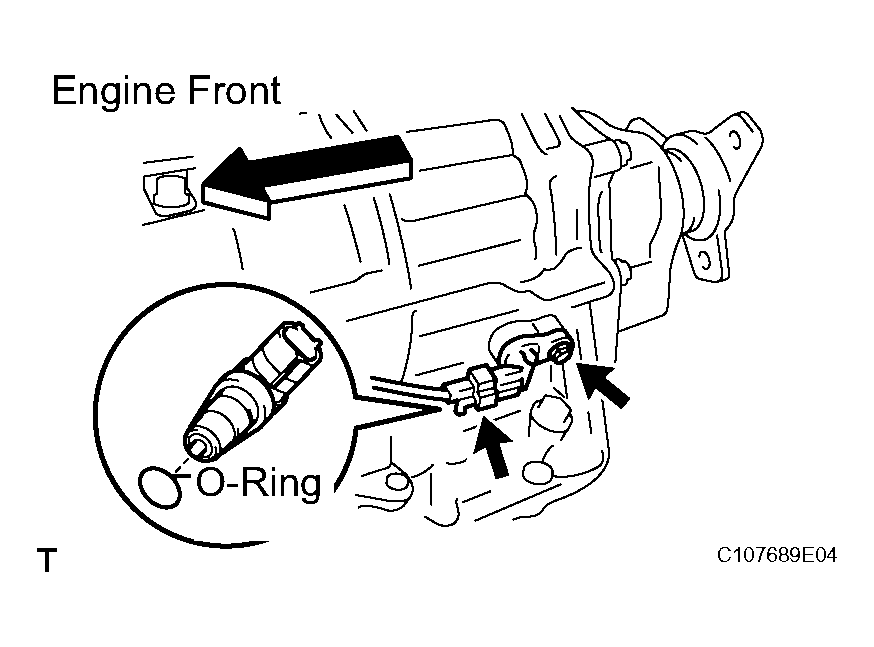

- REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)
- Disconnect the transmission revolution sensor connector.
- Remove the bolt and transmission revolution sensor.
- Remove the O-ring from the transmission revolution sensor.
