2006 Lexus IS 350FACTORY OEM SERVICE PROCEDURE

Shift Lever Assembly: Disassembly

REMOVE SHIFT POSITION INDICATOR
1. Remove the 4 screws and shift position indicator.

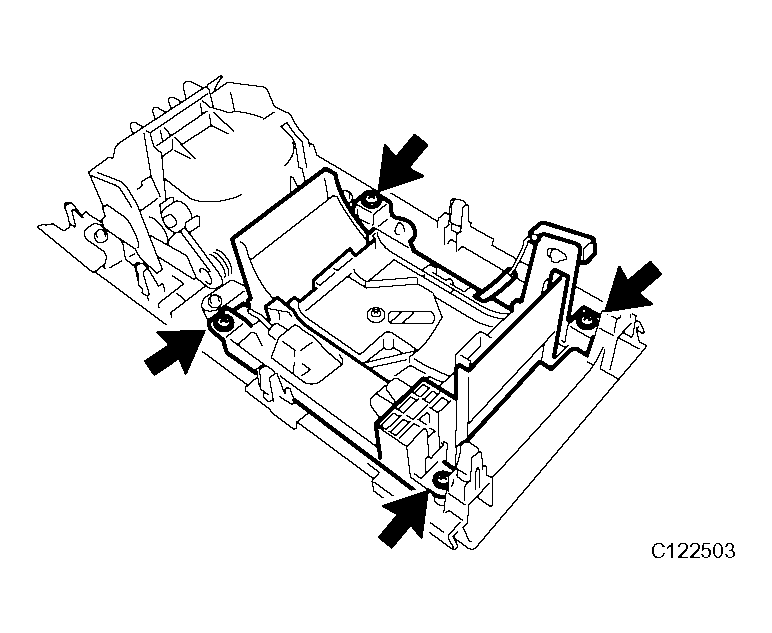

  Fig 1: Identifying Screws And Shift Position Indicator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL SWITCH
1. Remove the transmission control switch connector from the floor shift assembly.

  Fig 2: Identifying Transmission Control Switch Connector And Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the shift lever support and lock pin from the floor shift assembly.
3. Remove the shift lever guide housing from the floor shift assembly.

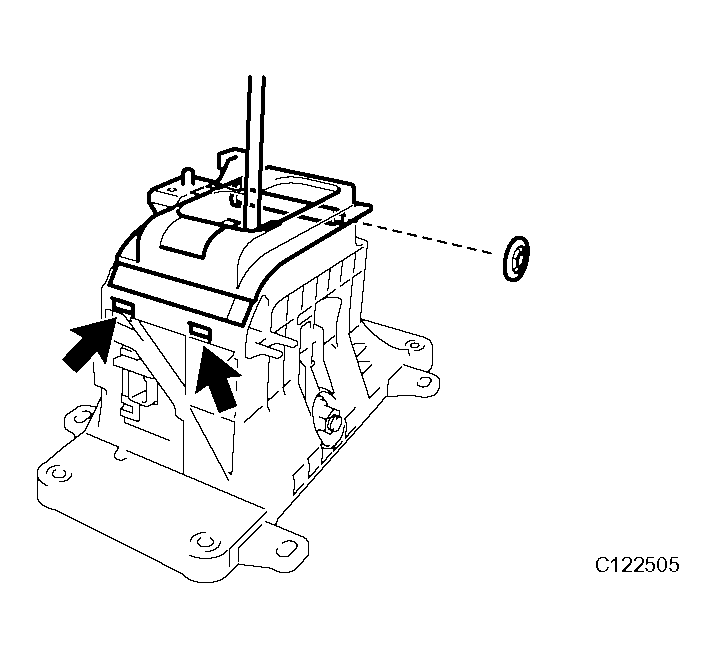

  Fig 3: Identifying Shift Lever Guide Housing And Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
