INSTALL STEERING ANGLE SENSOR
1. Align the locating pins, engage the 6 claws and install the steering angle sensor to the spiral cable sub-assembly.
INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR (See INSTALLATION )
INSTALL STEERING COLUMN COVER (See INSTALLATION )
INSTALL STEERING WHEEL ASSEMBLY (See INSTALLATION )
INSTALL STEERING PAD (See INSTALLATION )
INSTALL NO. 3 LOWER STEERING WHEEL COVER (See INSTALLATION )
INSTALL NO. 2 LOWER STEERING WHEEL COVER (See INSTALLATION )
INSPECT STEERING WHEEL CENTER POINT
1. Inspect the steering wheel center point.
CONNECT BATTERY NEGATIVE TERMINAL (See INSTALLATION )
INSPECT STEERING PAD (See INSTALLATION )
INSPECT SRS WARNING LIGHT
HINT:

(See PROBLEM SYMPTOMS TABLE )
PERFORM INITIALIZATION
HINT:

(See INITIALIZATION )

Some systems need initialization after reconnecting the cable to the negative battery cable.

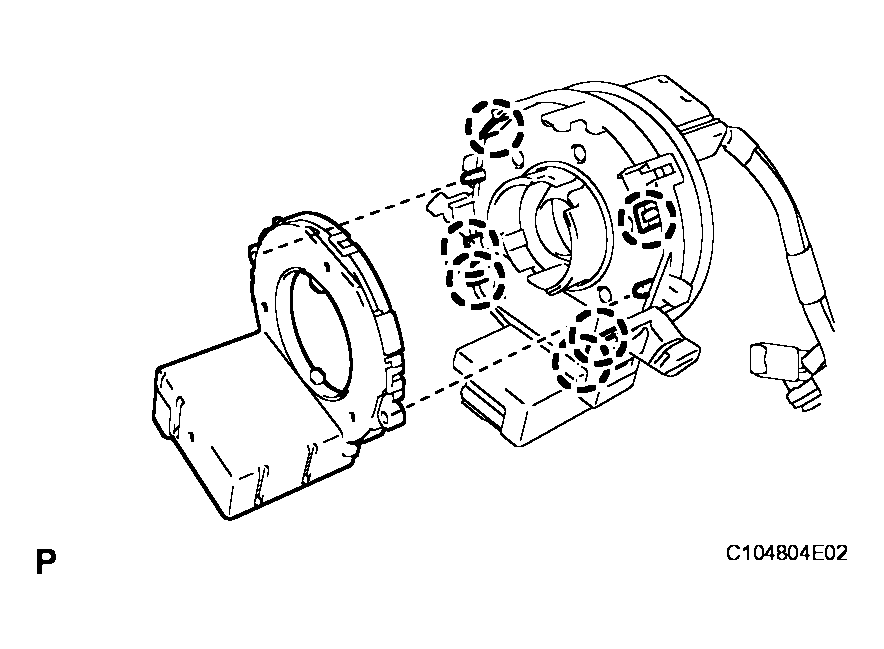

Fig 1: Identifying Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
