2006 Lexus IS 350FACTORY OEM SERVICE PROCEDURE

VVT Sensor: Removal

REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE VVT SENSOR (for Intake Side of Bank 1)
1. Disconnect the VVT sensor connector.
2. Remove the bolt and VVT sensor.

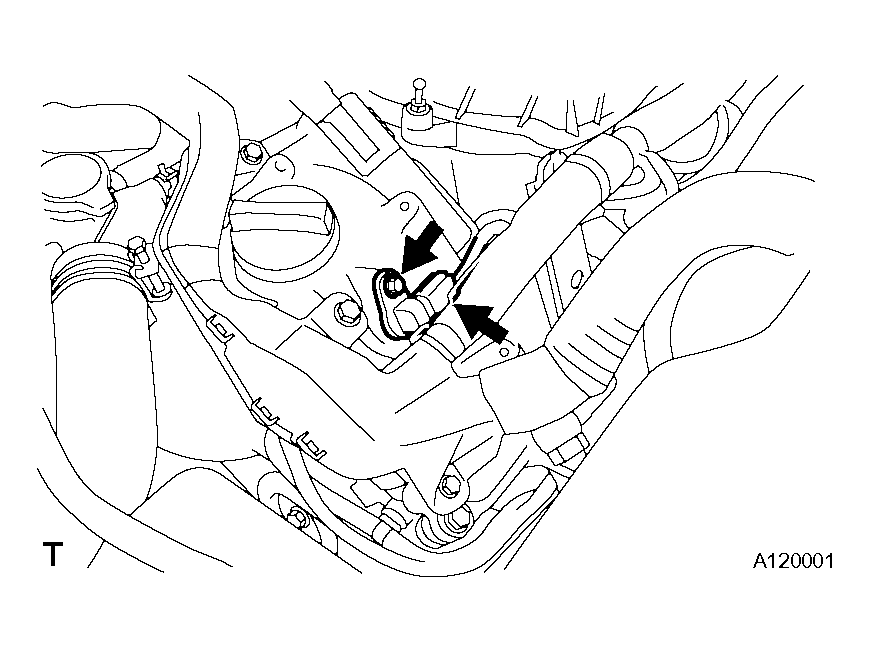

  Fig 1: Identifying VVT Sensor (For Intake Side Of Bank 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
1. Disconnect the VVT sensor connector.
2. Remove the bolt and VVT sensor.

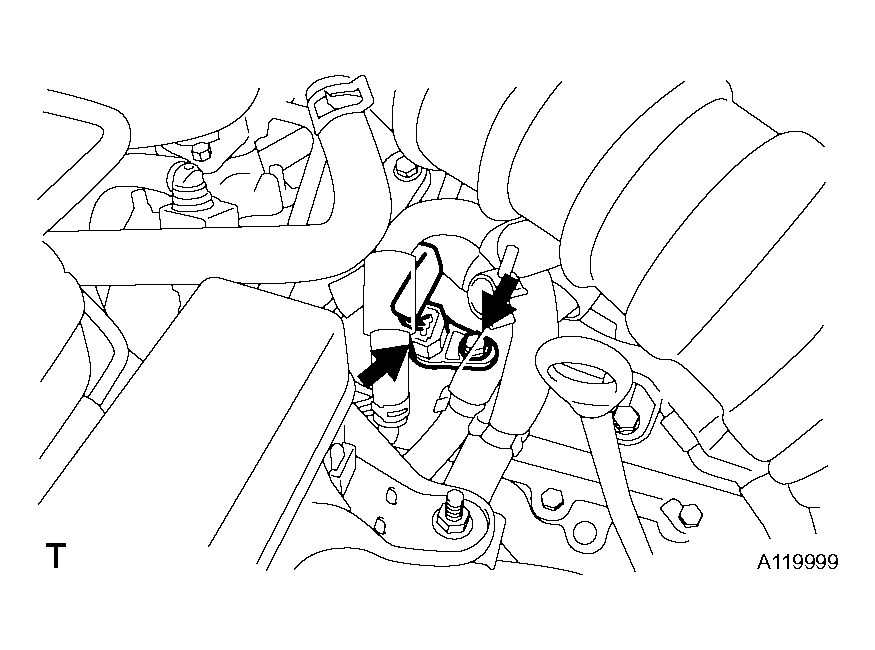

  Fig 2: Identifying VVT Sensor (For Exhaust Side Of Bank 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VVT SENSOR (for Intake Side of Bank 2)
1. Disconnect the VVT sensor connector.
2. Remove the bolt and VVT sensor.

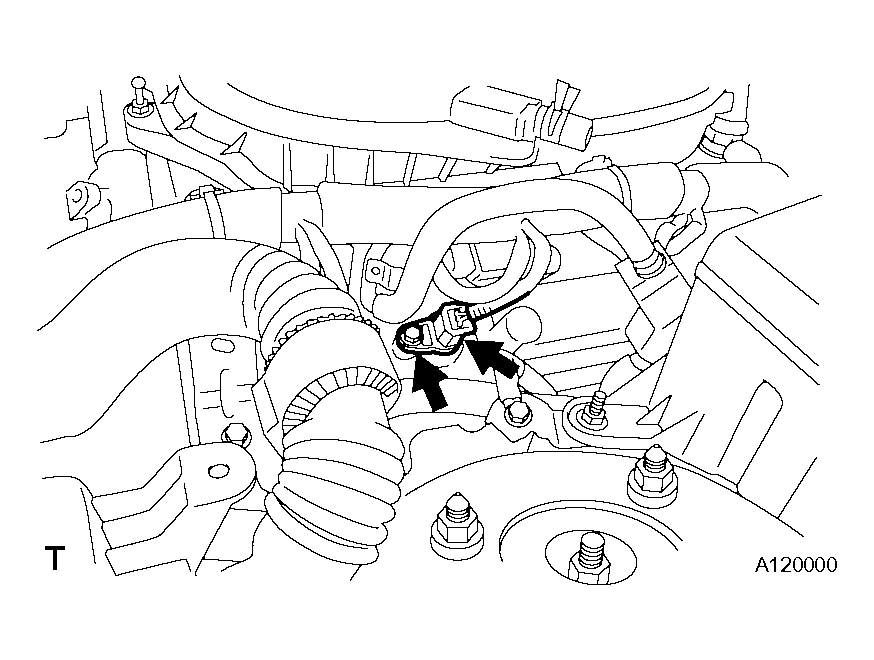

  Fig 3: Identifying VVT Sensor (For Intake Side Of Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
1. Disconnect the VVT sensor connector.
2. Remove the bolt and VVT sensor.

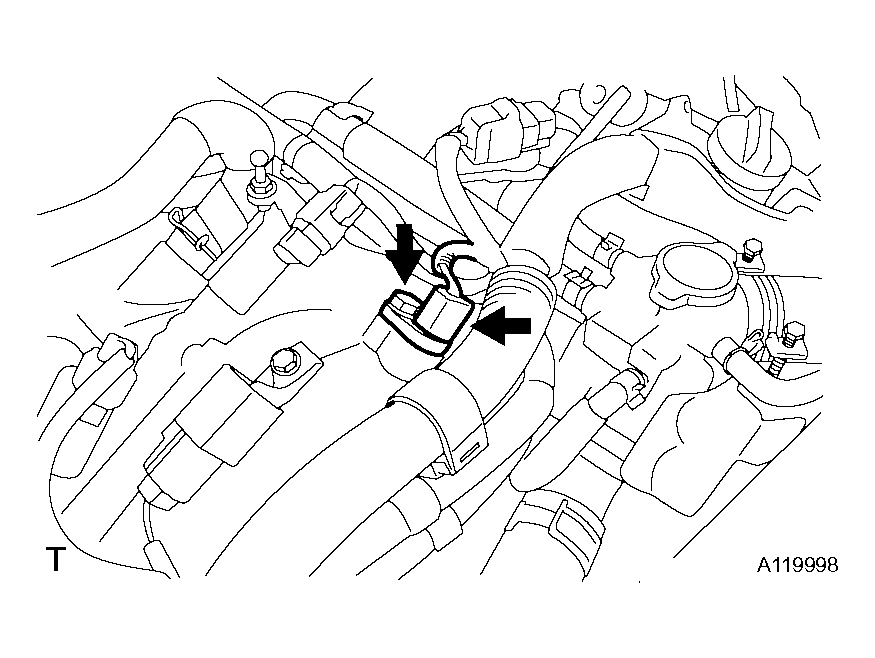

  Fig 4: Identifying VVT Sensor (For Exhaust Side Of Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
