2006 Lexus IS 350FACTORY OEM SERVICE PROCEDURE

Throttle Body: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  2. DRAIN ENGINE COOLANT (See  COOLANT  )
  3. REMOVE ENGINE ROOM SIDE COVER RH (See  REMOVAL  )
  4. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  5. DISCONNECT NO. 2 VENTILATION HOSE
    1. Disconnect the ventilation hose from the cylinder head.

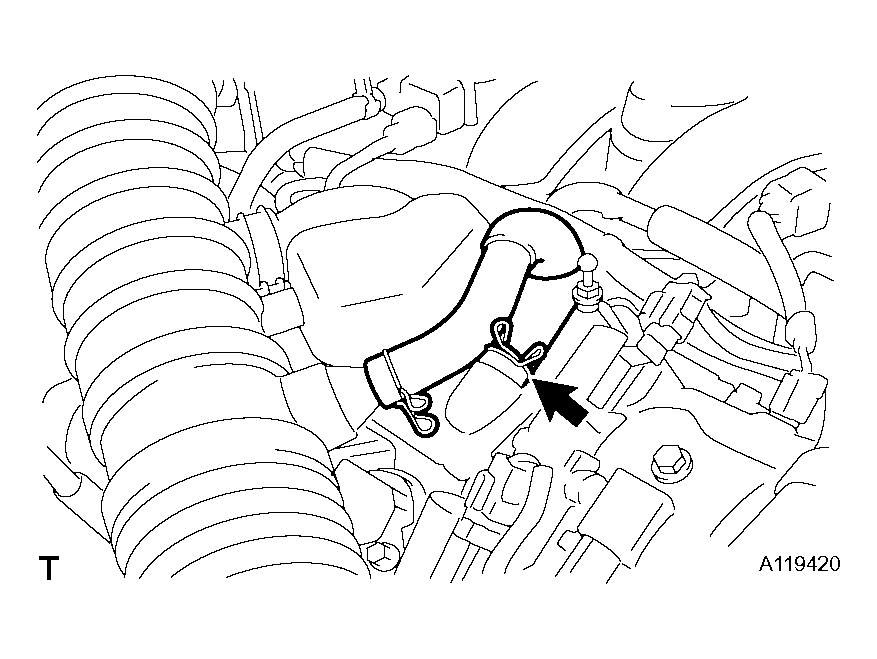

      Fig 1: Identifying Ventilation Hose
      G04054955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
    1. Disconnect the MAF meter connector.
    2. Disconnect the clamp from the air cleaner.

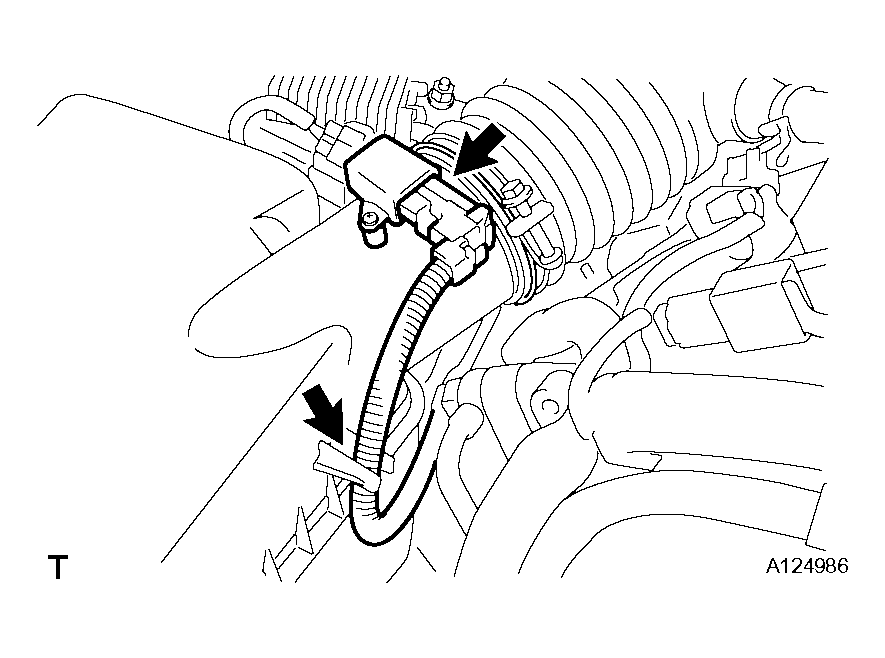

      Fig 2: Identifying MAF Meter Connector
      G04054956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the VSV hose.

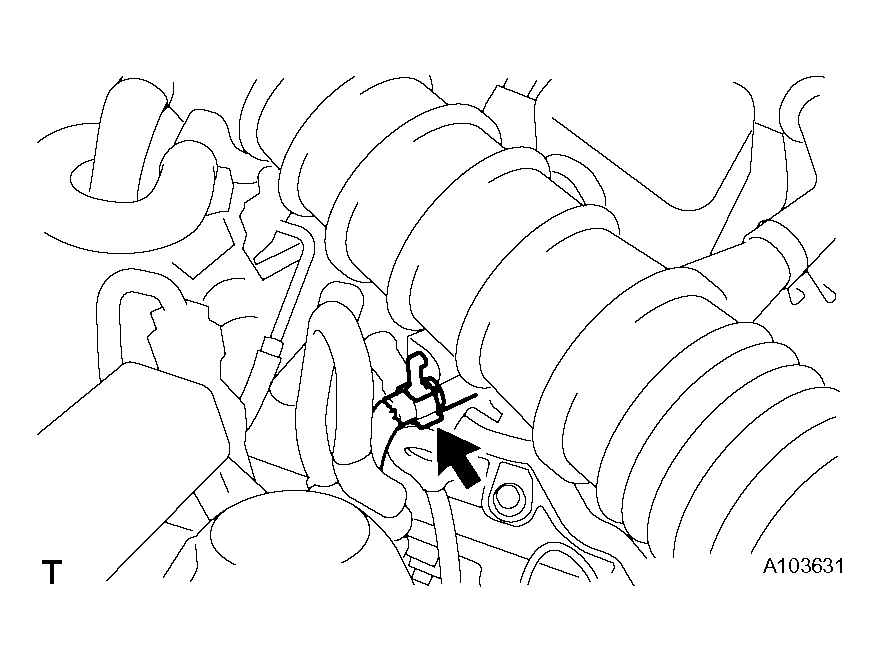

      Fig 3: Identifying VSV Hose
      G04054957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 4 clamps.
    5. Remove the hose clamp and air cleaner cap with air cleaner hose.

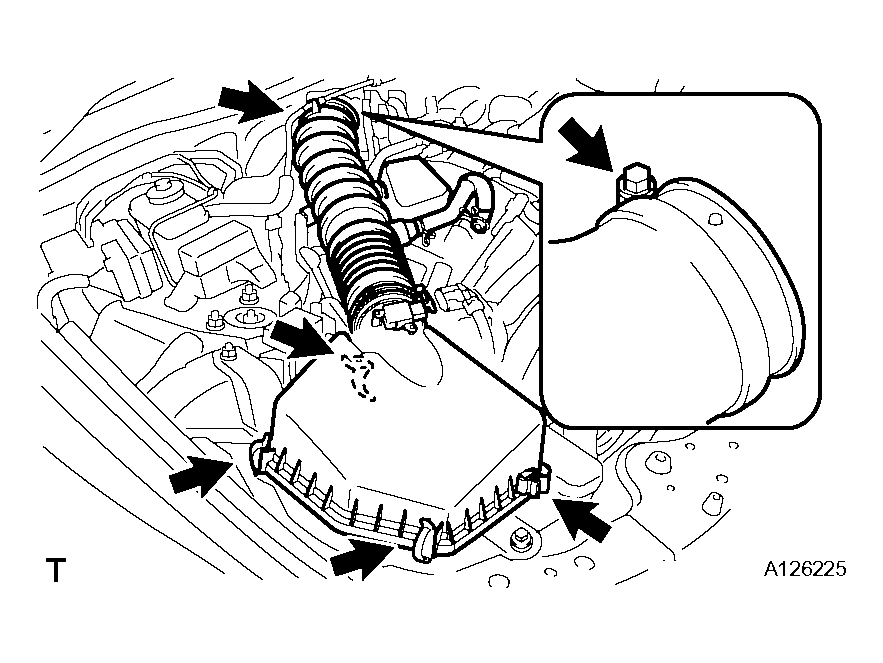

      Fig 4: Identifying Hose Clamp And Air Cleaner Cap With Air Cleaner Hose
      G04054958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE THROTTLE BODY
    1. Disconnect the throttle motor connector.
    2. Remove the 4 bolts and disconnect the throttle body from the intake air surge tank.

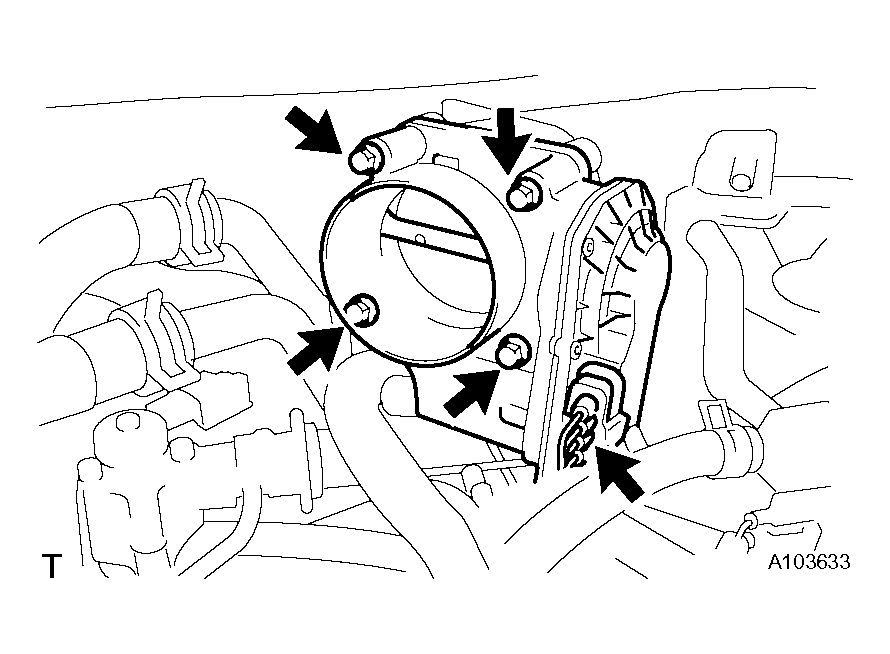

      Fig 5: Disconnecting Throttle Body From Intake Air Surge Tank
      G04054959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 2 water by-pass hoses from the throttle body.
    4. Remove the throttle body and gasket.

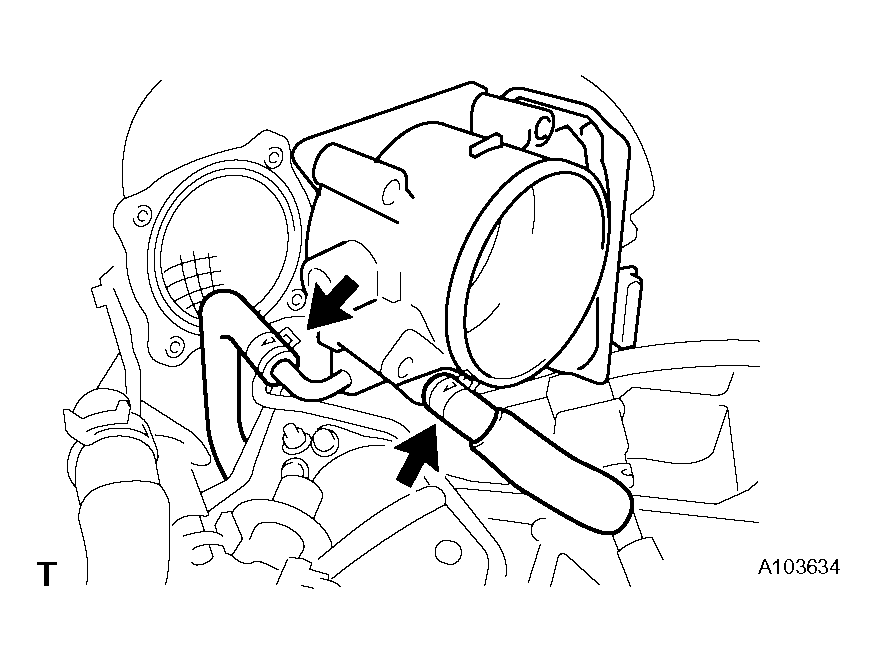

      Fig 6: Disconnecting Water By-Pass Hoses From Throttle Body
      G04054960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
