Related DTCS
| DTC No. | Monitoring Item |
|---|---|
| P043E | 0.02 inch orifice clogged (built into pump module) |
| P043F | 0.02 inch orifice high-flow (built into pump module) |
| P0441 |
|
| P0450 | Pressure sensor (built into pump module) voltage abnormal fluctuation |
| P0451 |
|
| P0452 | Pressure sensor (built into pump module) voltage low |
| P0453 | Pressure sensor (built into pump module) voltage high |
| P0455 | EVAP gross leak |
| P0456 | EVAP small leak |
| P2401 | Vacuum pump stuck OFF (built into pump module) |
| P2402 | Vacuum pump stuck ON (built into pump module) |
| P2419 | Vent valve stuck closed (built into pump module) |
| P2420 | Vent valve stuck open (vent) (built into pump module) |
| P2610 | Soak timer (built into ECM) |

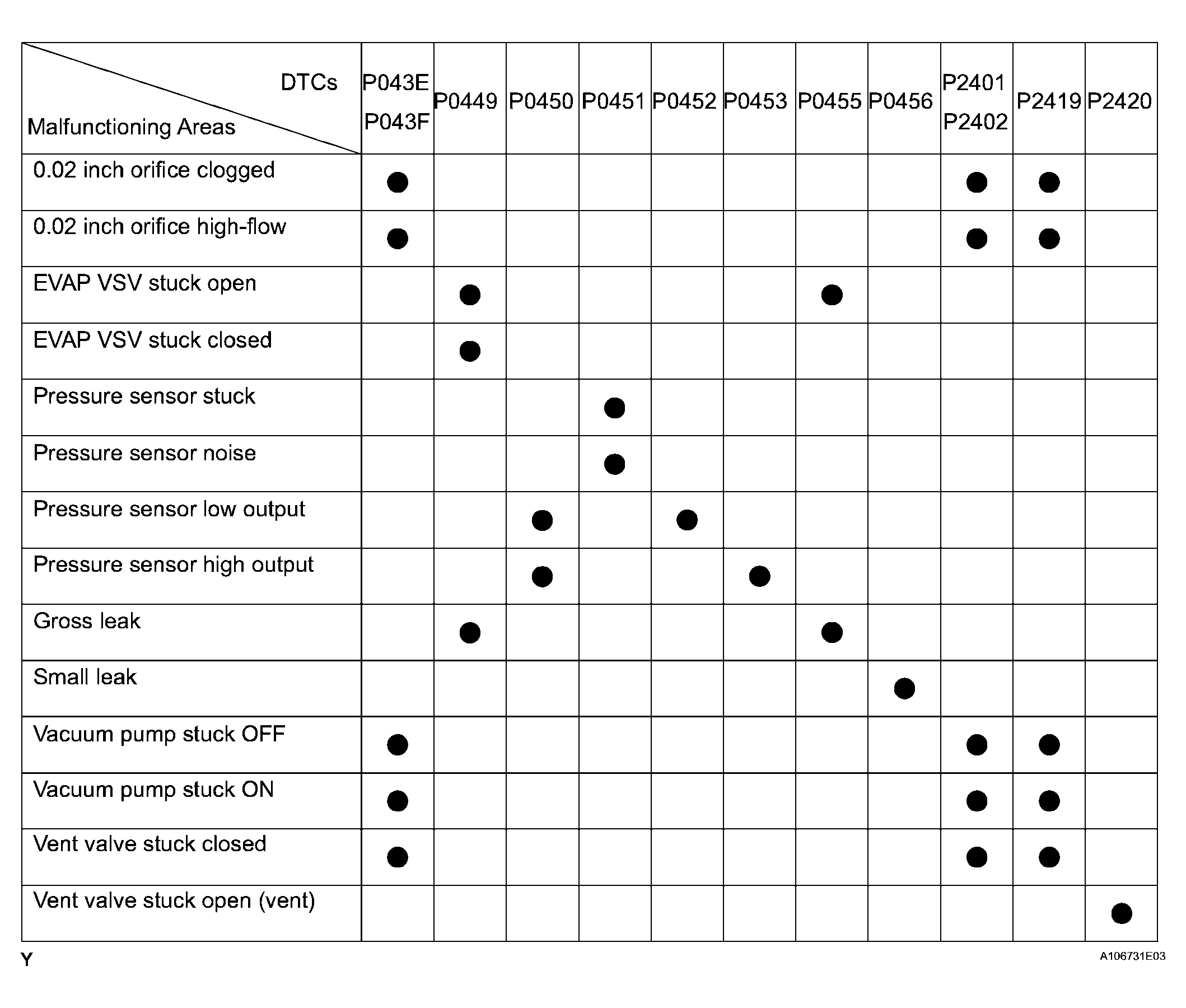

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.
