2006 Lexus IS 350FACTORY OEM SERVICE PROCEDURE

Mass Air Flow Meter: Installation

INSTALL MASS AIR FLOW METER
1. Install a new O-ring to the MAF meter.

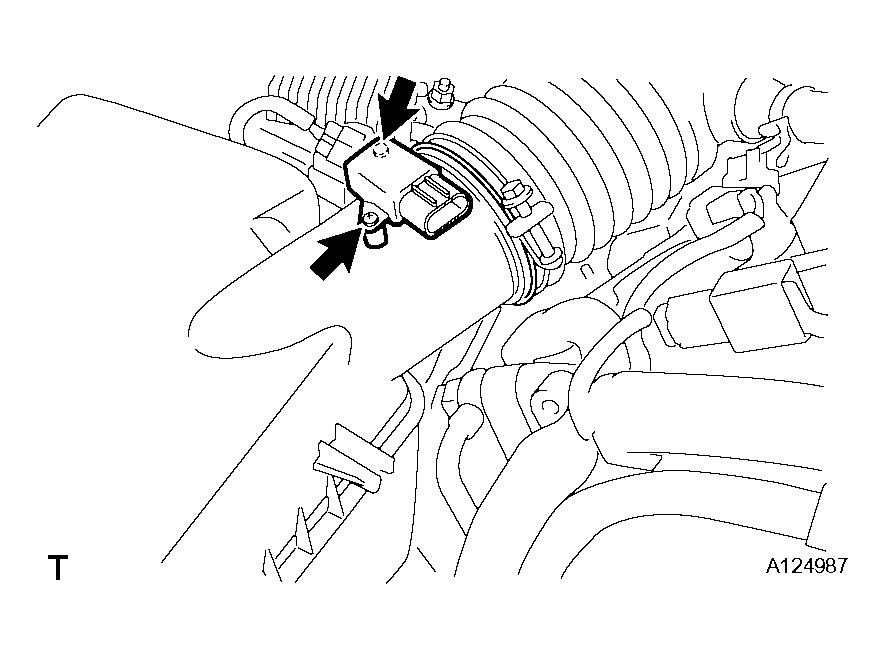

  Fig 1: Identifying Mass Air Flow Meter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the MAF meter with the 2 screws.
3. Connect the MAF meter connector.
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )

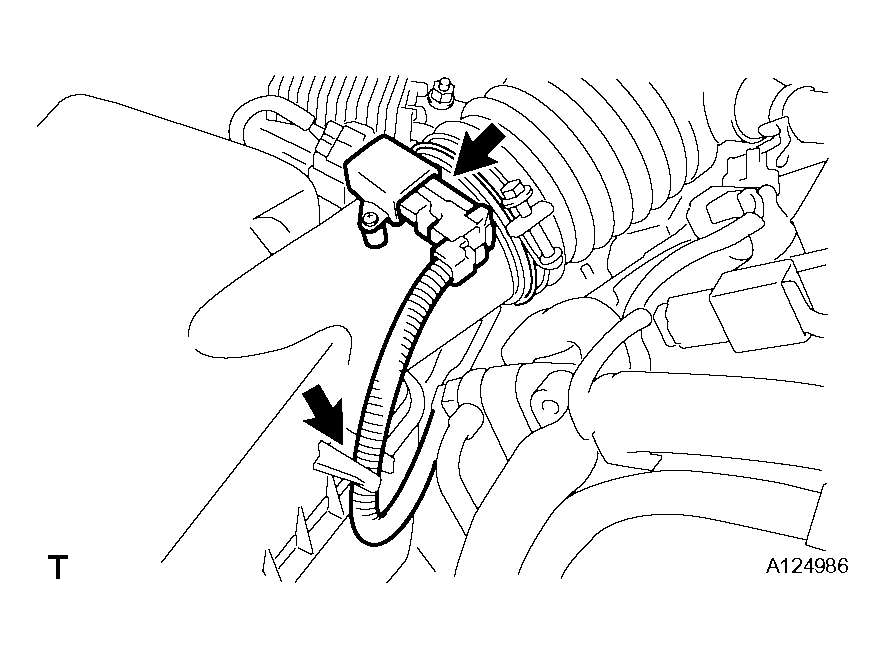

Fig 2: Identifying MAF Meter Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
