2006 Lexus IS 350FACTORY OEM SERVICE PROCEDURE
On-Vehicle Inspection
- INSPECT FUEL PUMP RELAY (Marking: F/PMP)
- Remove the No. 2 relay block cover.
- Remove the fuel pump from the engine room No. 2 junction block.

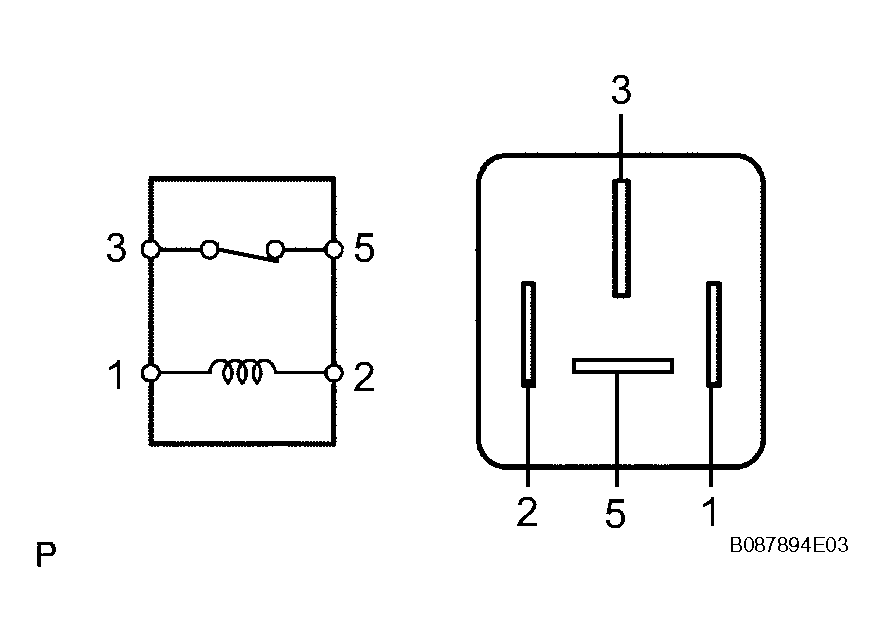

- Measure the fuel pump relay resistance.
Standard resistance
RESISTANCE SPECIFICATIONTester Condition Specified Condition 1 - 2 63 to 91 Ω 3 - 5 Below 1 Ω 3 - 5 10 kΩ or higher (when battery voltage is applied to terminals 1 and 2) - Reinstall the fuel pump relay to the engine room No. 2 relay block.
- Reinstall the No. 2 junction block cover.
