2006 Lexus IS 350FACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature Sensor: Installation

  1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
    1. Install a new gasket to the engine coolant temperature sensor.
    2. Install the engine coolant temperature sensor.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    3. Connect the engine coolant temperature sensor connector.

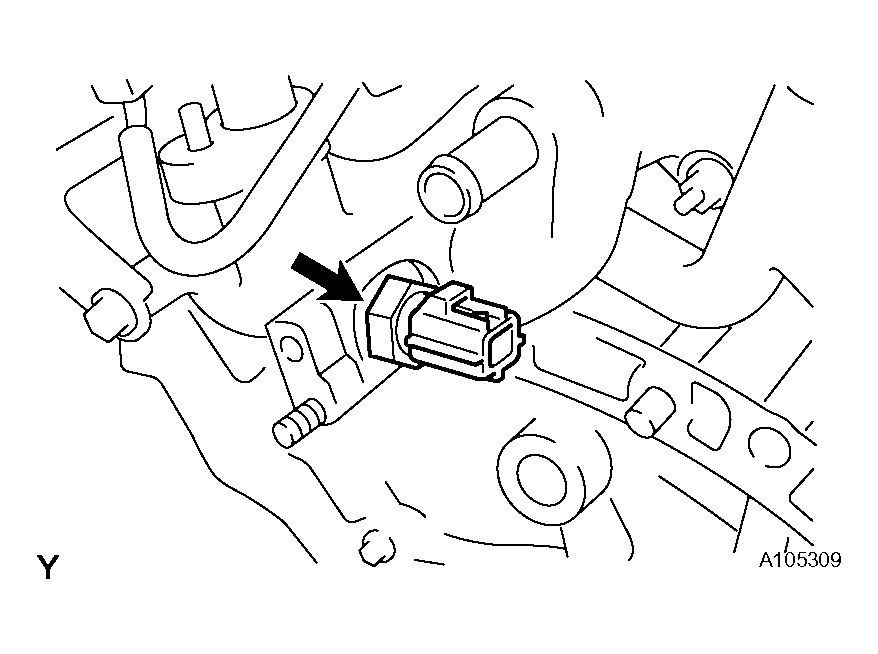

      Fig 1: Identifying Engine Coolant Temperature Sensor
      G04054951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INTAKE MANIFOLD (See  INSTALLATION  )
  3. INSTALL INTAKE AIR SURGE TANK ASSEMBLY (See  INSTALLATION  )
  4. INSTALL THROTTLE BODY (See  INSTALLATION   )
  5. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See  INSTALLATION   )
  6. CONNECT NO. 2 VENTILATION HOSE (See  INSTALLATION   )
  7. ADD ENGINE COOLANT (See  COOLANT  )
  8. CHECK FOR ENGINE COOLANT LEAKS (See  COOLANT  )
  9. FUEL LEAKAGE (See  ON-VEHICLE INSPECTION  )
  10. INSTALL COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  INSTALLATION  )
  11. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH (See  INSTALLATION  )
  12. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH (See  INSTALLATION  )
  13. INSTALL FRONT WIPER ARM HEAD CAP (See  INSTALLATION  )
  14. INSTALL ROOF DRIP SIDE FINISH MOULDING LH
  15. INSTALL ROOF DRIP SIDE FINISH MOULDING RH
  16. INSTALL FRONT FENDER PROTECTOR UPPER LH (See  INSTALLATION  )
  17. INSTALL FRONT FENDER PROTECTOR UPPER RH (See  INSTALLATION  )
  18. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION  )
  19. INSTALL ENGINE ROOM SIDE COVER LH (See  INSTALLATION  )
  20. INSTALL ENGINE ROOM SIDE COVER RH (See  INSTALLATION  )
  21. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )
