Crankshaft Position Sensor: Installation

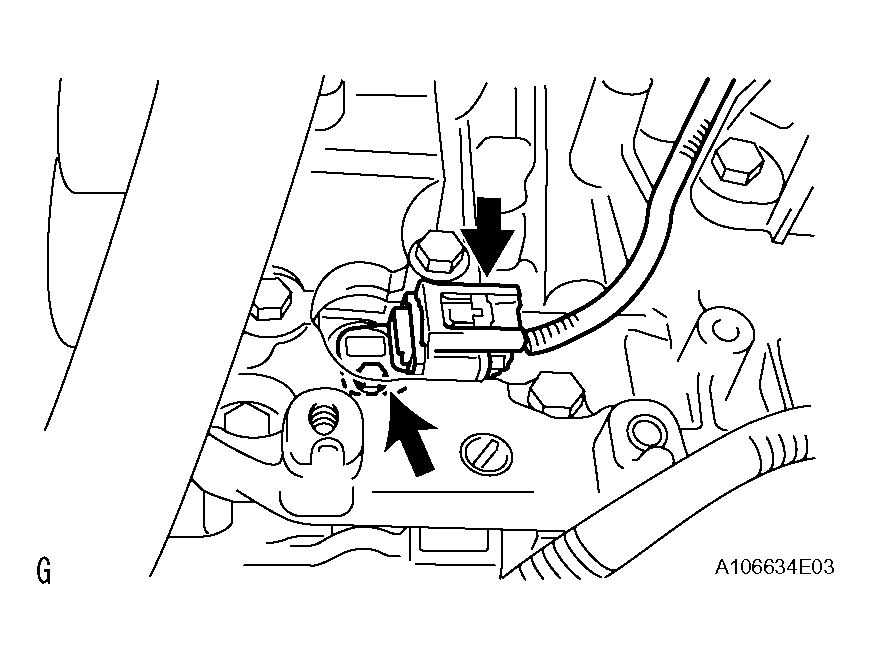

- INSTALL CRANKSHAFT POSITION SENSOR
- Apply a coat of engine oil to an O-ring of the crankshaft position sensor.
- Install the crankshaft position sensor with the bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Connect the crankshaft position sensor connector.
- INSTALL COMPRESSOR WITH PULLEY ASSEMBLY (See INSTALLATION )
- INSTALL DISCHARGE HOSE SUB-ASSEMBLY (See INSTALLATION )
- INSTALL NO. 1 COOLER REFRIGERANT SUCTION HOSE (See INSTALLATION )
- INSTALL V-RIBBED BELT (See INSTALLATION )
- INSTALL REAR ENGINE UNDER COVER LH
- INSTALL ENGINE UNDER COVER
- INSTALL NO. 1 INLET AIR CLEANER (See INSTALLATION )
- INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
- CHARGE REFRIGERANT (See REPLACEMENT )
- WARM UP ENGINE (See REPLACEMENT )
- CHECK FOR LEAKAGE OF REFRIGERANT (See REPLACEMENT )
- REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
