Camshaft Timing Oil Control Valve Assembly: Inspection
- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

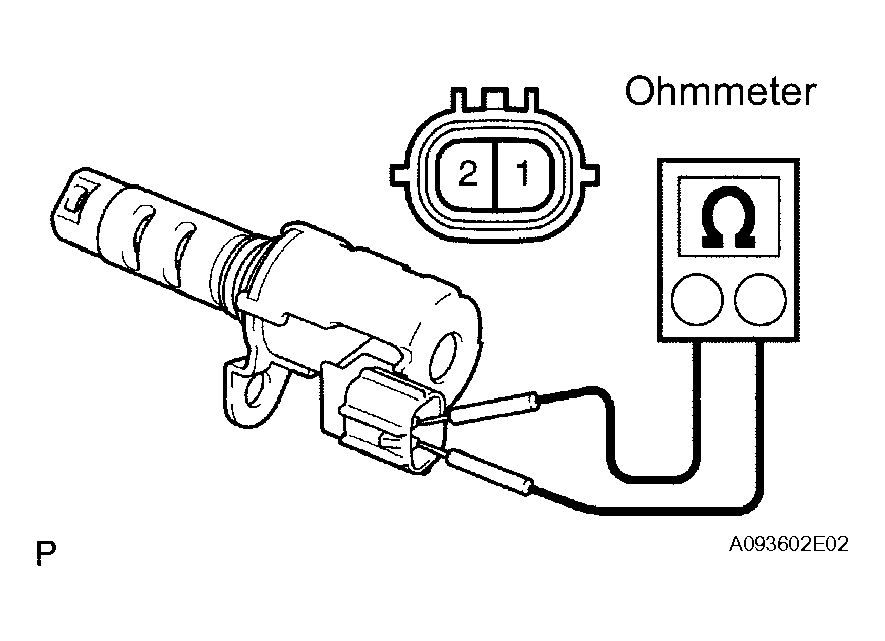

- Measure the resistance between the terminals.
Standard resistance: 6.9 to 7.9 Ω at 20°C (68°F)
If the result is not as specified, replace the oil control valve.

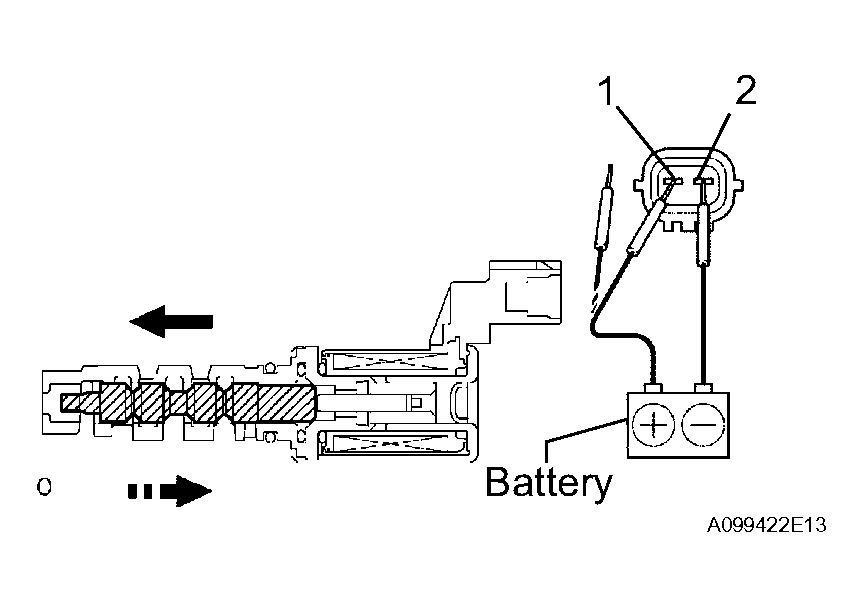

- Connect the battery's positive (+) lead to terminal 1 and negative (-) lead to terminal 2, and check the movement of the valve.
OK
SPECIFIED CONDITIONCondition Specified Condition Battery positive (+) voltage is applied Valve moves in left arrow direction shown in illustration Battery positive (+) voltage is cut off Valve moves in right arrow direction shown in illustration Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If result is not as specified, replace the oil control valve.
NOTE: If the valve cannot return properly because of foreign matter, a small pressure leak in the advanced direction may occur and a DTC may be output.
- Measure the resistance between the terminals.
