2006 Lexus IS 350FACTORY OEM SERVICE PROCEDURE
Steering Angle Sensor: Installation
- INSTALL STEERING ANGLE SENSOR

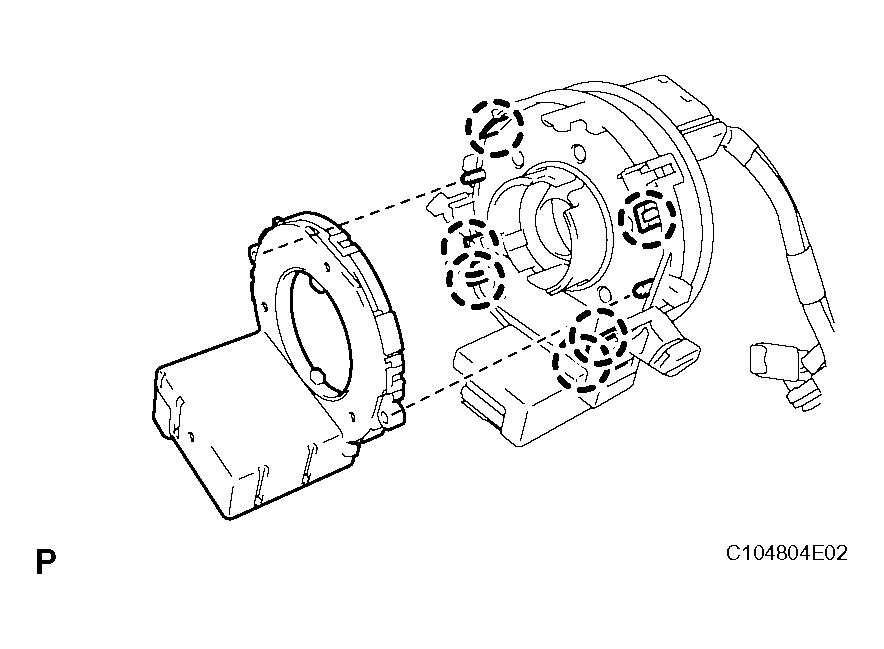

- Align the locating pins, engage the 6 claws and install the steering angle sensor to the spiral cable sub-assembly.
- INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING ANGLE SENSOR (See INSTALLATION )
- INSTALL STEERING COLUMN COVER (See INSTALLATION )
- INSTALL STEERING WHEEL ASSEMBLY (See INSTALLATION )
- INSTALL STEERING PAD (See INSTALLATION )
- INSTALL NO. 3 LOWER STEERING WHEEL COVER (See INSTALLATION )
- INSTALL NO. 2 LOWER STEERING WHEEL COVER (See INSTALLATION )
- INSPECT STEERING WHEEL CENTER POINT
- Inspect the steering wheel center point.
- CONNECT BATTERY NEGATIVE TERMINAL (See COMPONENTS )
- INSPECT STEERING PAD (See INSTALLATION )
- INSPECT SRS WARNING LIGHT
HINT:
(See DIAGNOSIS SYSTEM )
- PERFORM INITIALIZATION
HINT:
(See INITIALIZATION )
Some systems need initialization after reconnecting the cable to the negative battery cable.
