2006 Lexus IS 350FACTORY OEM SERVICE PROCEDURE

Rear Speed Sensor: Installation

INSTALL REAR SPEED SENSOR
1. Install the rear speed sensor with the bolt.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  NOTE: Prevent foreign matter from attaching to the sensor tip.
2. Connect the speed sensor connector.

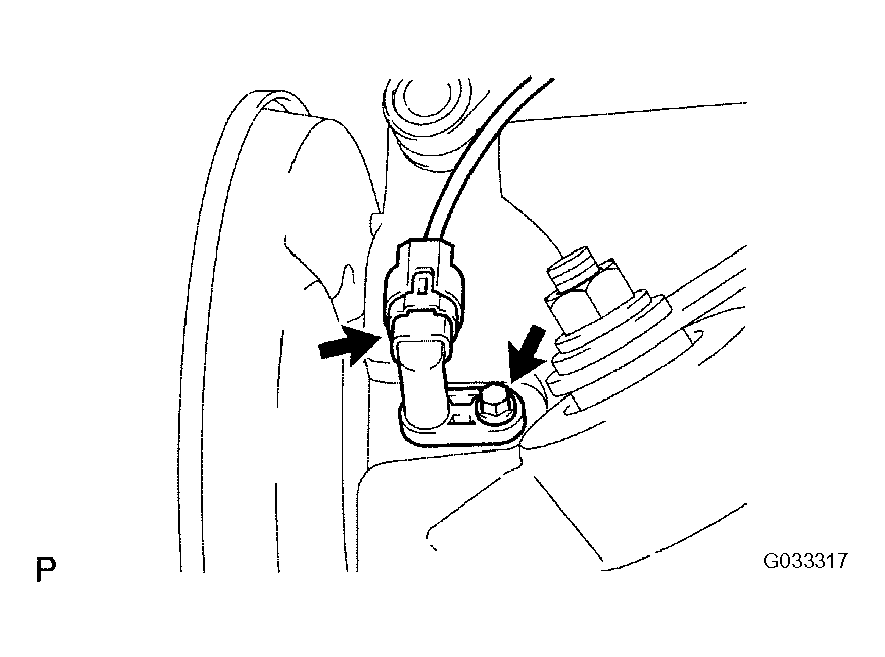

  Fig 1: Identifying Bolt Of Speed Sensor Rear LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL
1. Install the rear wheel.
  Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSPECT SPEED SENSOR SIGNAL
(See TEST MODE PROCEDURE )
