2006 Lexus GS 430FACTORY OEM SERVICE PROCEDURE

On-Vehicle Inspection

CHECK THROTTLE BODY
1. Check the throttle control motor operating sound.
  1. Turn the engine switch on (IG).
  2. When pressing the accelerator pedal, check the operating sound of the running motor. Make sure that no friction noises emit from the motor. If friction noise exists, replace the throttle body.

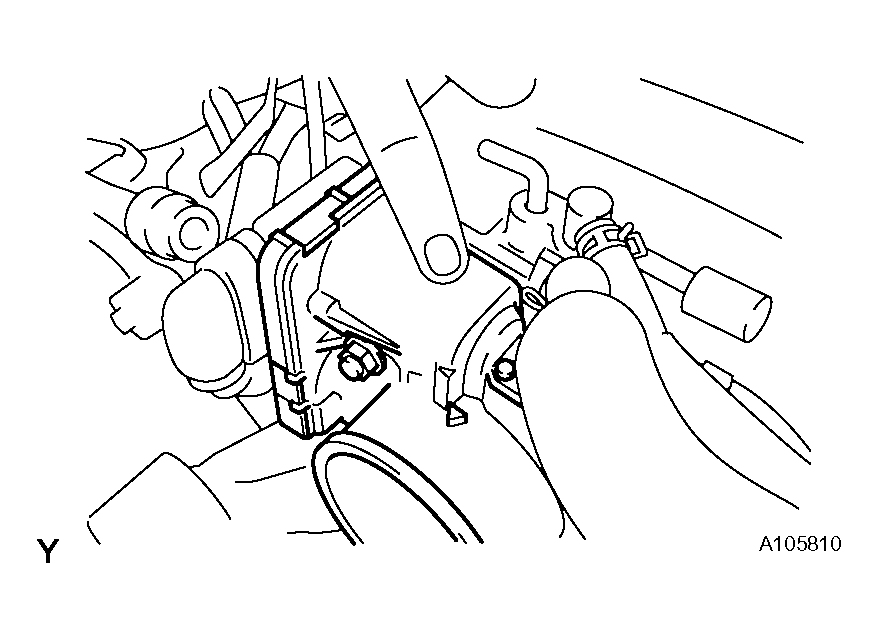

    Fig 1: Identifying Throttle Control Motor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the throttle position sensor.
  1. Connect the intelligent tester to the DLC3.
  2. Turn the engine switch on (IG).
  3. Push the intelligent tester main switch ON.
  4. Enter the following menus: Powertrain / Engine and ETC / Data List / Throttle Sensor Position.
  5. Depress the accelerator pedal. When the throttle valve is fully opened, check that the value of the "Throttle Sensor Position" is within the specification.

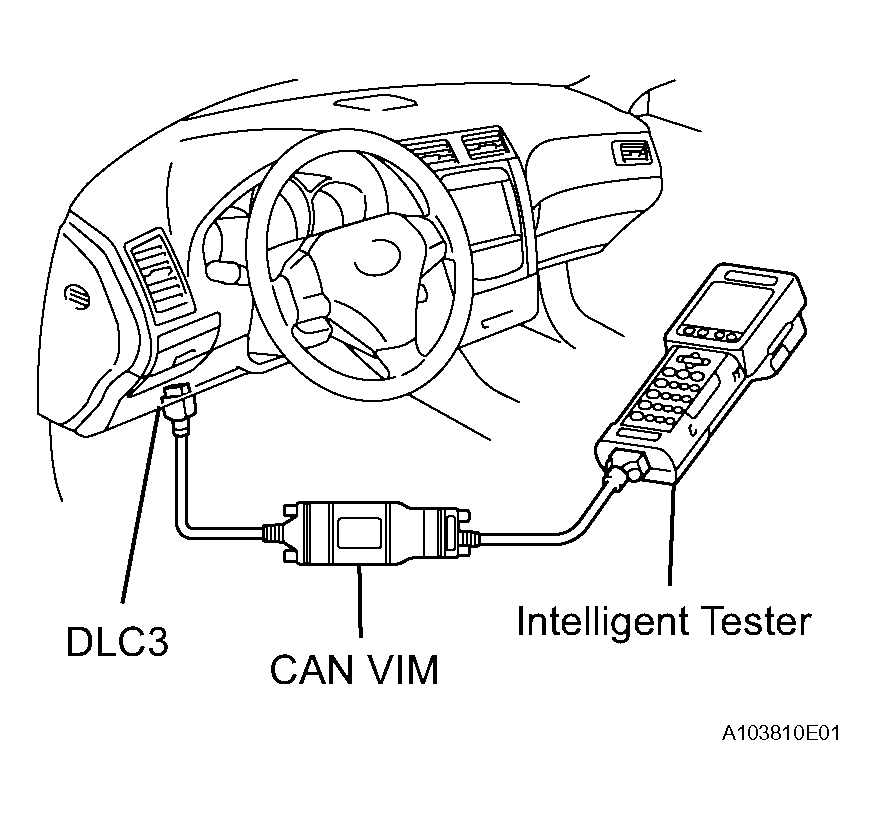

    Fig 2: Identifying Intelligent Tester To DLC3
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard throttle valve opening percentage:

    60% or more

    NOTE: When checking the standard throttle valve opening percentage, the shift lever should be in the N position.

    If the percentage is less than 60%, replace the throttle body.
