Mass Air Flow Meter: Inspection

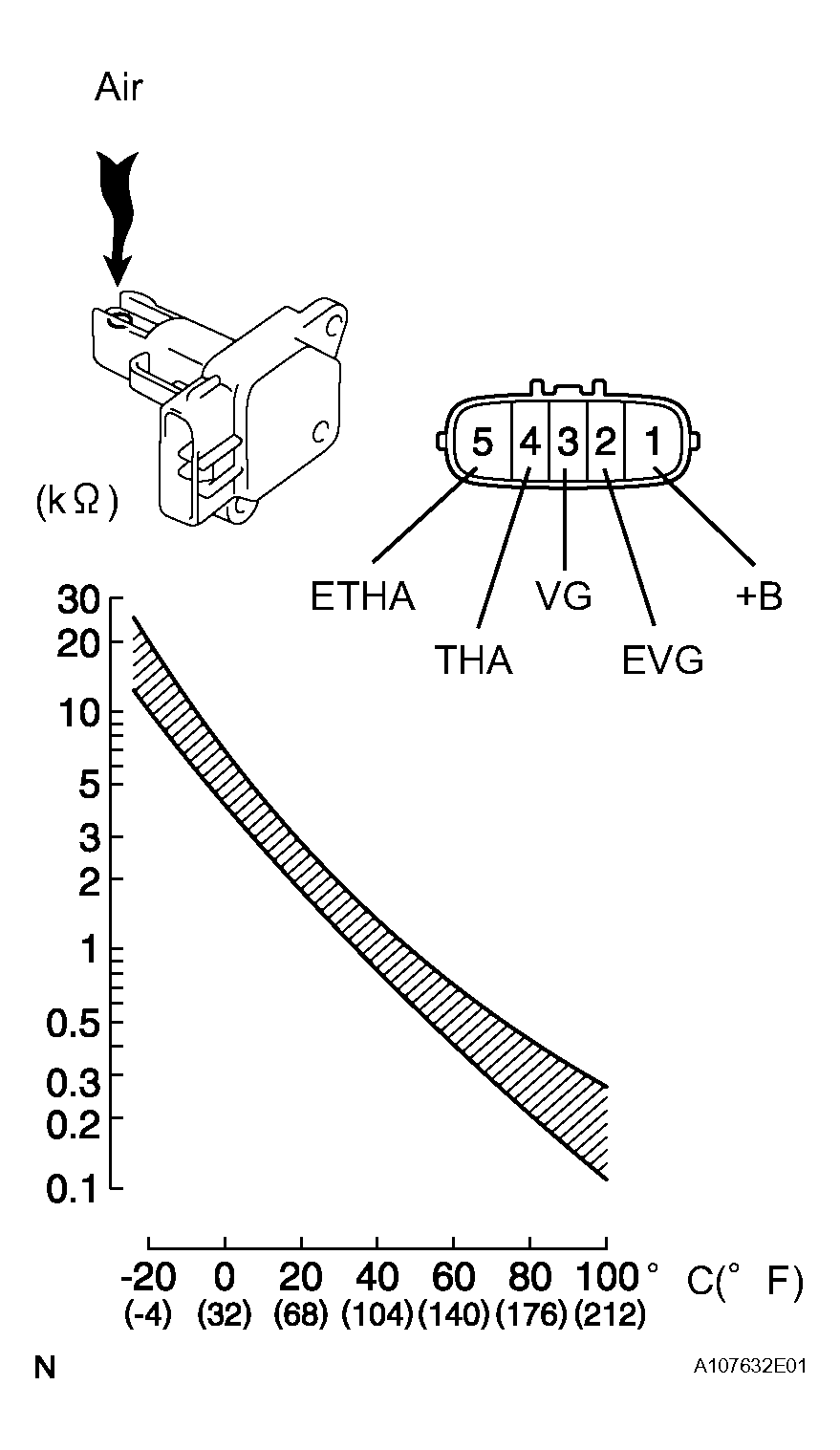

- INSPECT INTAKE AIR FLOW METER
- Check the output voltage.
- Apply battery voltage across terminals 1 (+B) and 2 (EVG).
- Using a voltmeter, connect the positive (+) tester probe to terminal 3 (VG), and negative (-) tester probe to terminal 2 (EVG).
- Blow air into the MAF meter, and check that the voltage fluctuates.
- Measure the resistance between terminals 4 (THA) and 5 (ETHA).
Standard resistance
SPECIFIED CONDITION CHARTCondition Specified Condition -20°C (-4°F) 13.6 to 18.4 kΩ 20°C (68°F) 2.21 to 2.69 kΩ 60°C (140°F) 0.493 to 0.667 kΩ If the result is not as specified, replace the MAF meter.
- Check the output voltage.
