Integration Relay: Inspection
- INSPECT INTEGRATION RELAY
- Measure the resistance of the C/OPN relay.

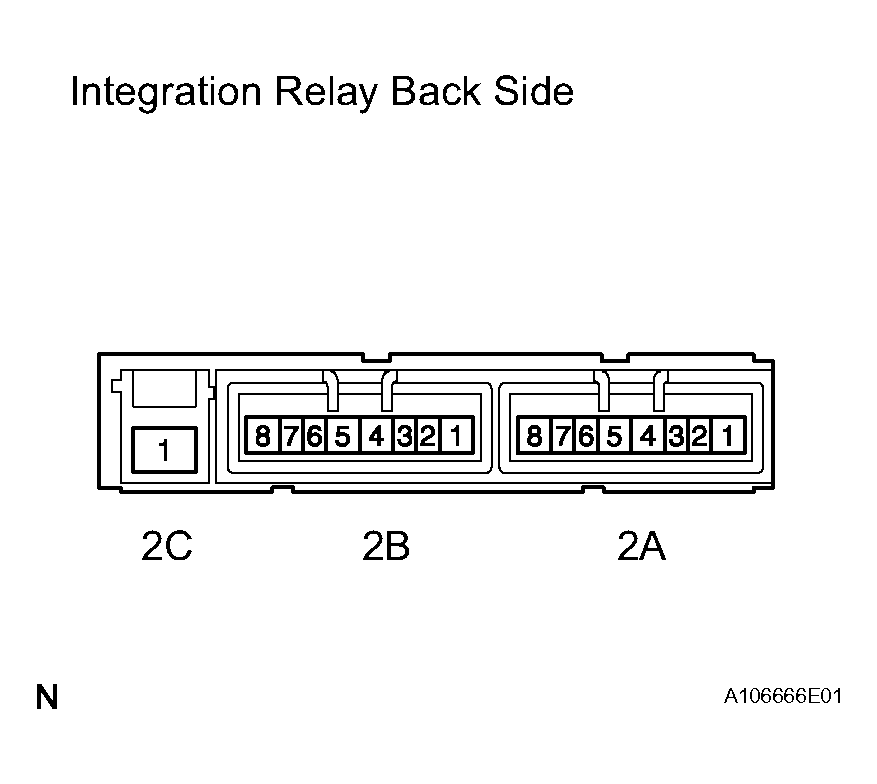

- Connect the positive (+) battery lead to terminal 2A-8 and negative (-) lead to terminal 2B-3. Using an ohmmeter, measure the resistance between the terminals when battery voltage is applied.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition 2C-1 - 2B-7 Below 1 Ω 2C-1 - 2B-8 10 kΩ or higher - Connect the positive (+) battery lead to terminal 2A-8 and 2C-1 and the negative (-) lead to terminal 2B-3 and 2B-7. Using an ohmmeter, measure the resistance between terminals 2C- 1 and 2B-8 when battery voltage is applied between the terminals.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition 2C-1 - 2B-8 Below 1 Ω (When battery voltage is applied between 2A-8 and 2B-3, and 2C-1 and 2B-7) If the resistance is not as specified, replace the integration relay.
- Connect the positive (+) battery lead to terminal 2A-8 and negative (-) lead to terminal 2B-3. Using an ohmmeter, measure the resistance between the terminals when battery voltage is applied.
- Measure the resistance of the EFI MAIN relay.

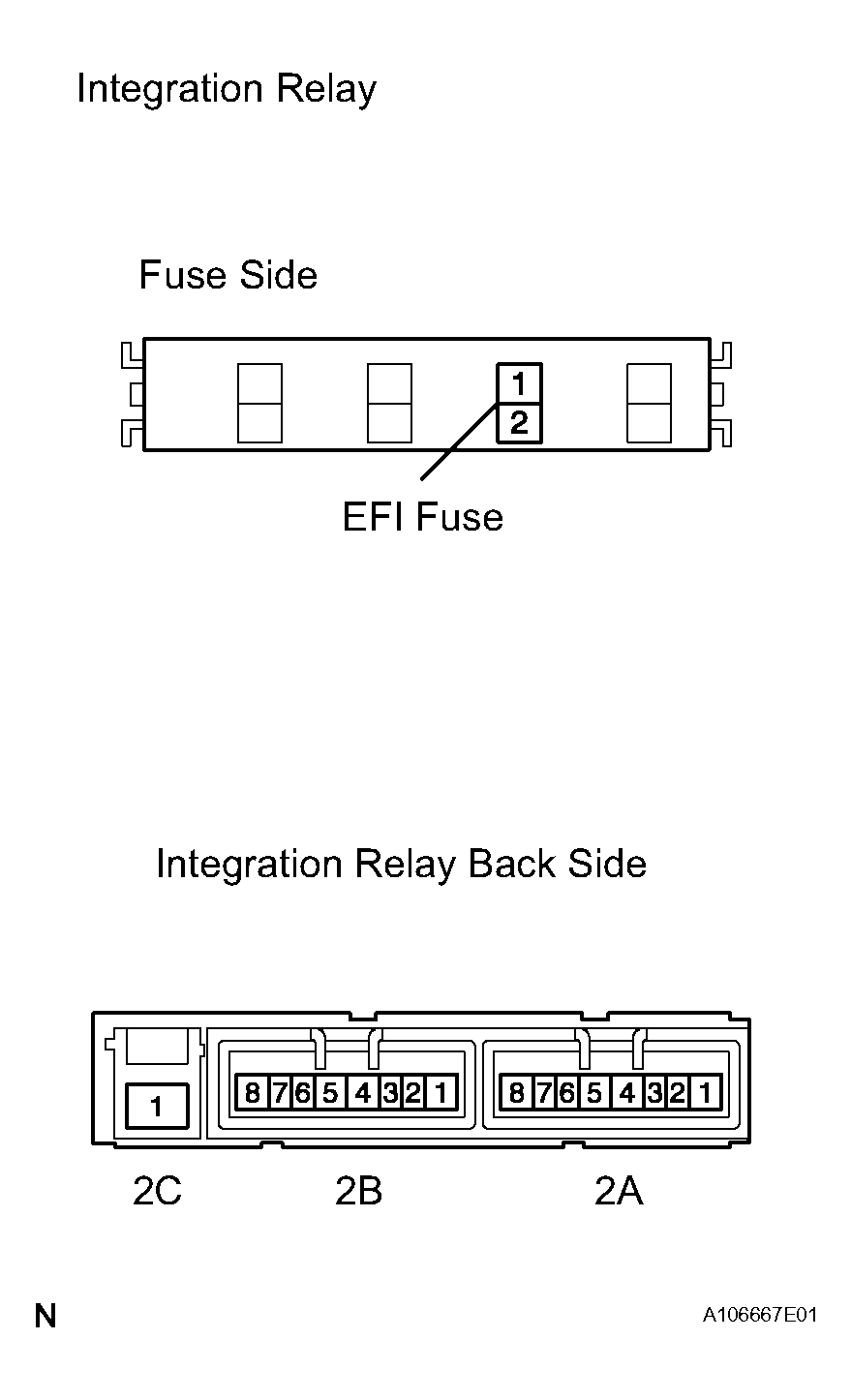

- Disconnect the EFI fuse. Using an ohmmeter, measure the resistance between the terminals.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition 2A-6 - 2A-7 Below 1 Ω EFI fuse terminal 2 - 2A-8 10 kΩ or higher - Connect the positive (+) battery lead to terminal 2A-6 and negative (-) lead to terminal 2A-7. Using an ohmmeter, measure the resistance between the EFI fuse terminal 2 and terminal 2A-8 when battery voltage is applied between the terminals.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition EFI fuse terminal 2 - terminal 2A-8 Below 1 Ω (When battery voltage is applied between 2A-6 and 2A-7) If the resistance is not as specified, replace the integration relay.
- Disconnect the EFI fuse. Using an ohmmeter, measure the resistance between the terminals.
- Measure the resistance of the EFI 2 relay.
- Measure the resistance between the terminals.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition 2B-3 - 2A-8 Below 1 Ω 2B-7 - 2C-1 10 kΩ or higher - Connect the positive (+) battery lead to terminal 2A-8 and negative (-) lead to terminal 2B-3. Using an ohmmeter, measure the resistance between terminals 2B-7 and 2C-1 when battery voltage is applied between the terminals.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition 2B-7 - 2C-1 Below 1 Ω (When battery voltage is applied between 2B-3 and 2A-8) If the resistance is not as specified, replace the integration relay.
- Measure the resistance between the terminals.
- Measure the resistance of the C/OPN relay.
