Engine Coolant Temperature Sensor: Installation

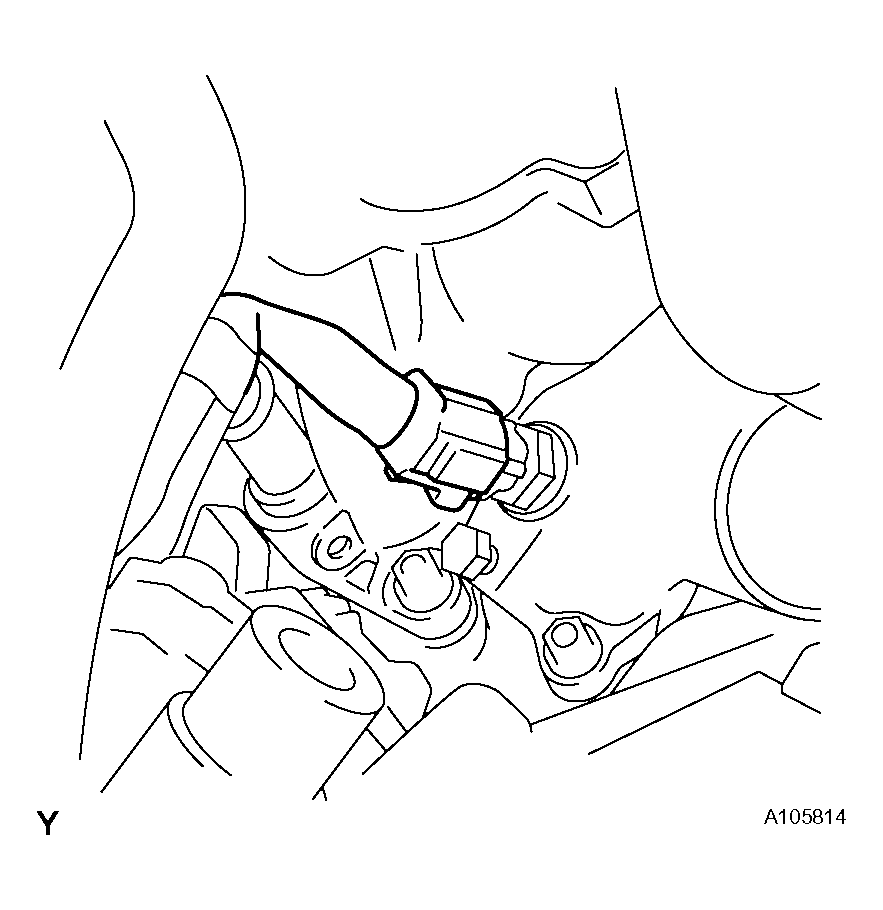

- INSTALL ENGINE COOLANT TEMPERATURE SENSOR
- Install a new gasket to the sensor.
- Install the sensor.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
- Install a new gasket to the sensor.
- INSTALL INTAKE AIR CONNECTOR PIPE ( 2 )
- INSTALL NO. 1 AIR CLEANER INLET ( 4 )
- INSTALL ENGINE ROOM SIDE COVER RH ( 7 )
- INSTALL COOL AIR INTAKE DUCT SEAL ( 8 )
- INSTALL V-BANK COVER ( )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform initialization (INITIALIZATION
).
- ADD ENGINE COOLANT ( ON-VEHICLE INSPECTION )
- CHECK FOR ENGINE COOLANT LEAKS
- Check for engine coolant leaks (ON-VEHICLE INSPECTION ).
