2006 Lexus GS 430FACTORY OEM SERVICE PROCEDURE

Camshaft Timing Oil Control Valve Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE COOL AIR INTAKE DUCT SEAL
    1. Remove the 7 clips and intake duct seal.

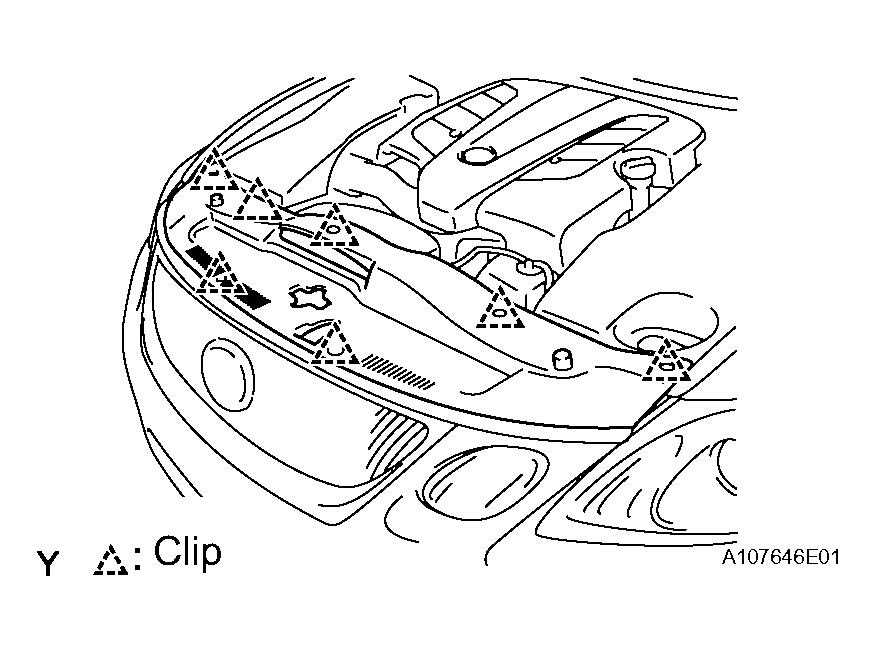

      Fig 1: Identifying Clips And Intake Duct Seal
      G04027185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ENGINE ROOM SIDE COVER RH
    1. Remove the nut, 2 clips and side cover.

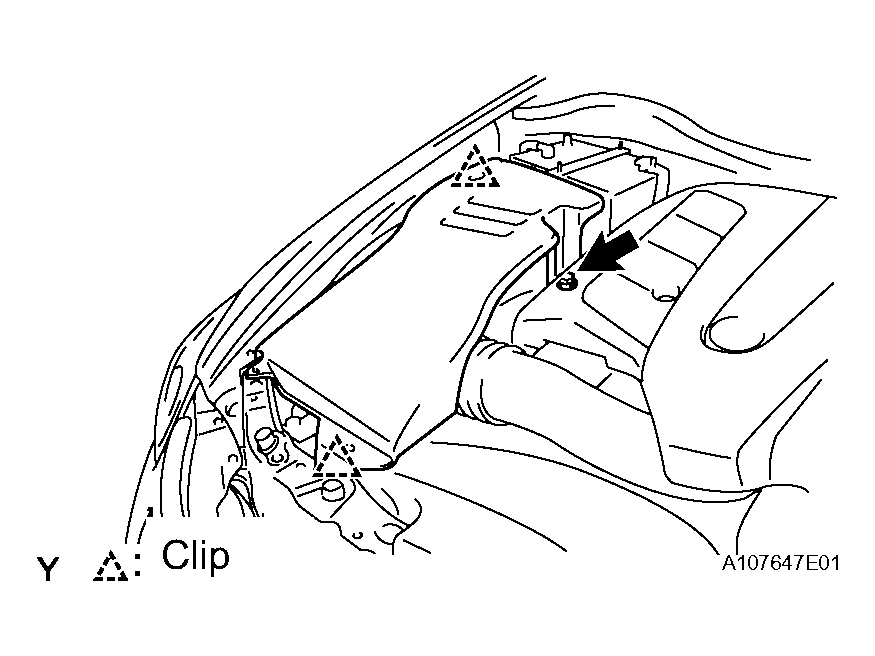

      Fig 2: Identifying Engine Room Side Cover RH
      G04027186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE ENGINE ROOM SIDE COVER LH
    1. Remove the 3 clips and side cover.

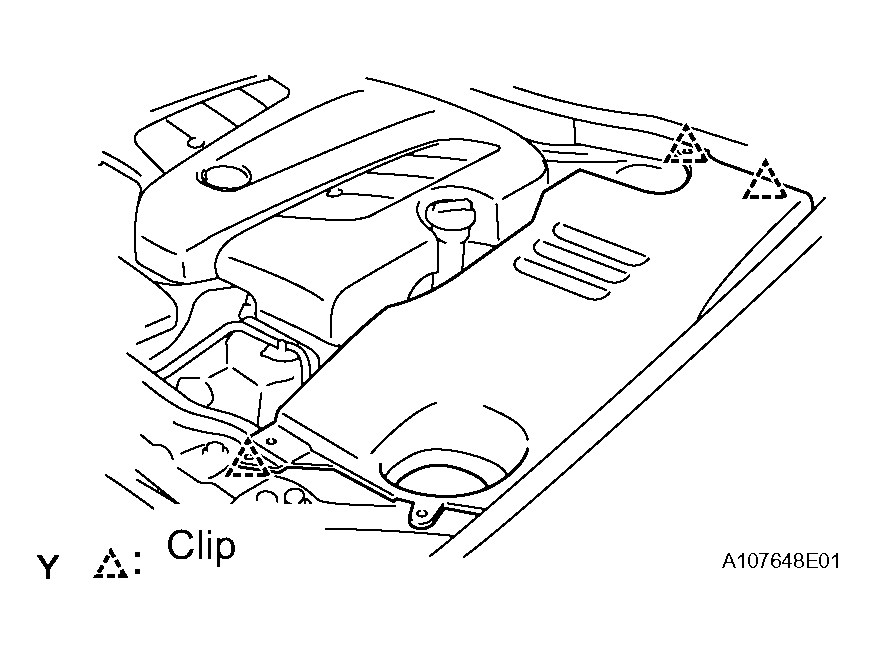

      Fig 3: Identifying Engine Room Side Cover LH
      G04027187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE V-BANK COVER
    1. Remove the 2 nuts and V-bank cover.
  6. REMOVE NO. 1 AIR CLEANER INLET
    1. Remove the bolt and No. 1 air cleaner inlet.
  7. REMOVE INTAKE AIR CONNECTOR PIPE (  8  )
  8. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.

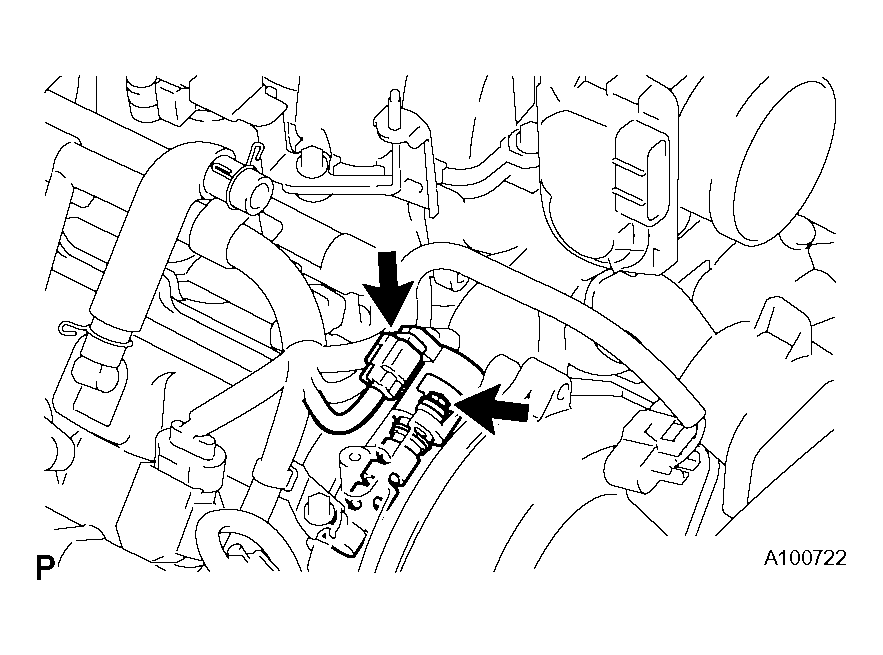

      Fig 4: Identifying Camshaft Timing Oil Control Valve Assembly RH
      G04027188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.

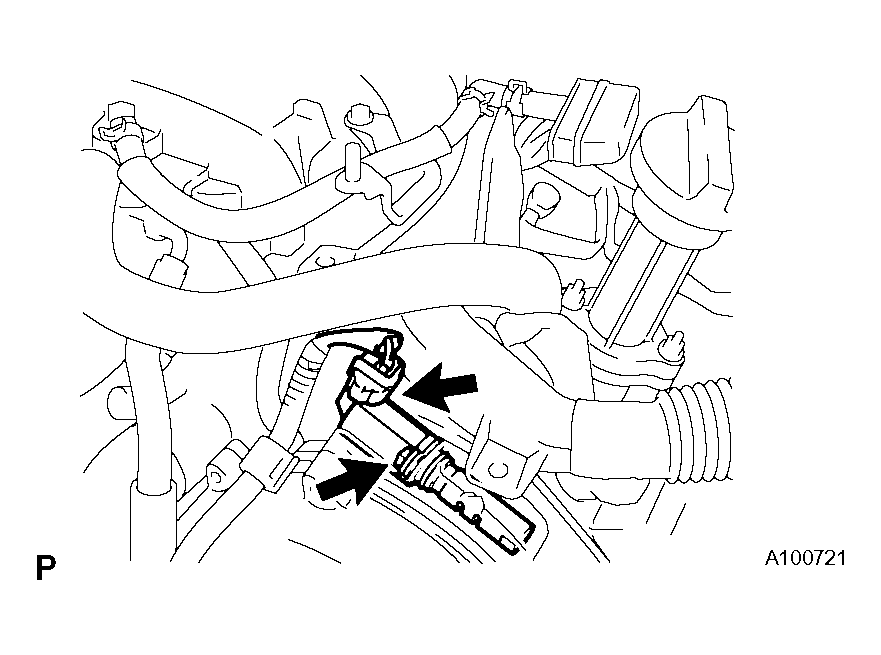

      Fig 5: Identifying Camshaft Timing Oil Control Valve Assembly LH
      G04027189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
