Camshaft Position Sensor: Inspection
- INSPECT CAMSHAFT POSITION SENSOR

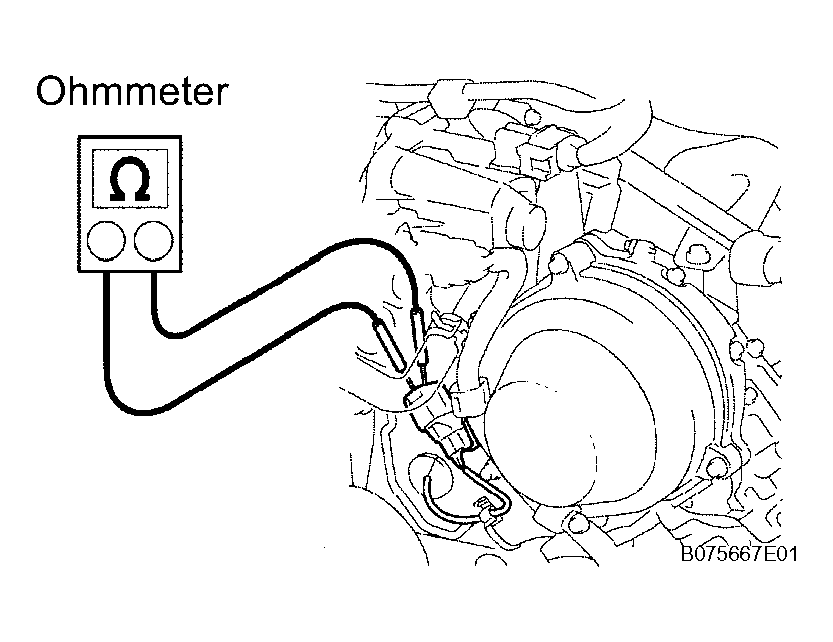

- Measure the resistance between the terminals.
Standard resistance
TEMPERATURE AND SPECIFIED CONDITION CHARTTemperature Specified Condition Cold 835 to 1,400 Ω Hot 1,060 to 1,645 Ω NOTE: In the table above, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).If the resistance is not as specified, replace the sensor.
- Measure the resistance between the terminals.
