2006 Lexus GS 430FACTORY OEM SERVICE PROCEDURE
UF1AE Transfer: SST
SST - UF1AE TRANSFER

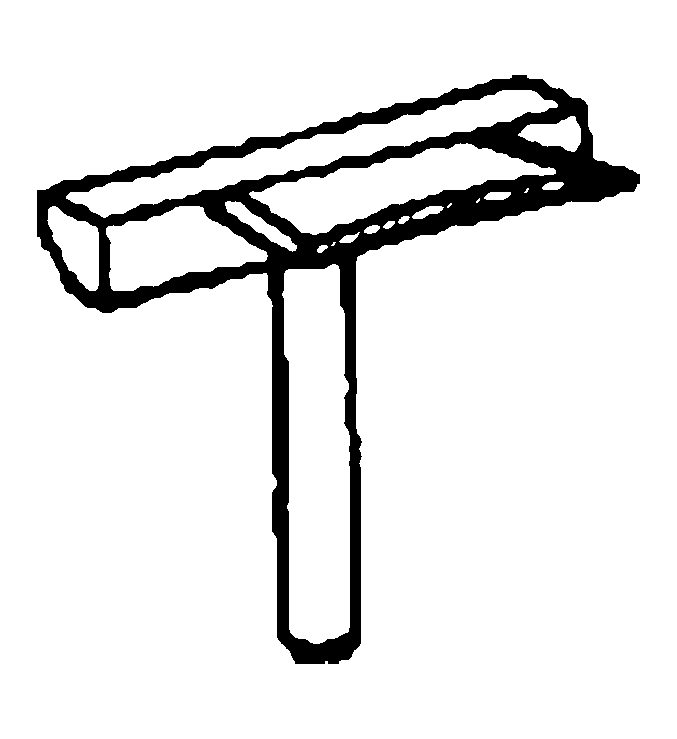

| 09032-00100 | Oil Pan Seal Cutter | ||
| 09213-54015 | Crankshaft Pulley Holding Tool | ||
| 09308-00010 | Oil Seal Puller | ||
| 09316-20011 | Transfer Bearing Replacer | ||

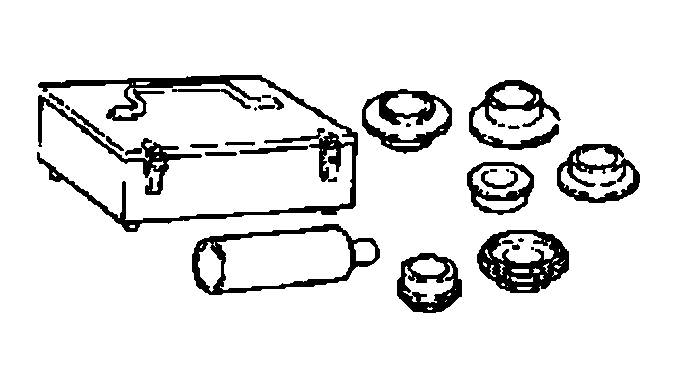

| 09316-60011 | Transmission & Transfer Bearing Replacer | ||

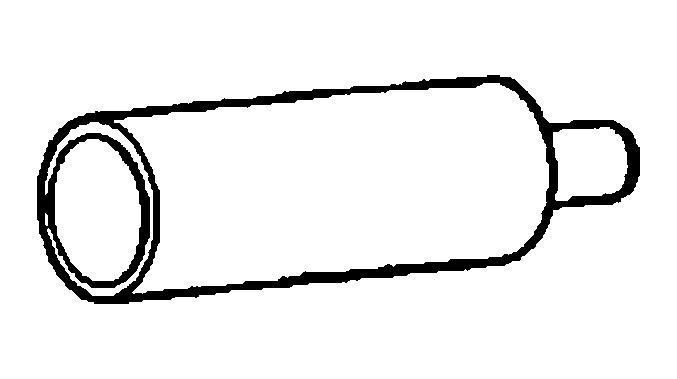

| (09316-00011) | Replacer Pipe | ||
| (09316-00041) | Replacer C | ||
| (09316-00071) | Replacer F | ||
| 09325-40010 | Transmission Oil Plug | ||

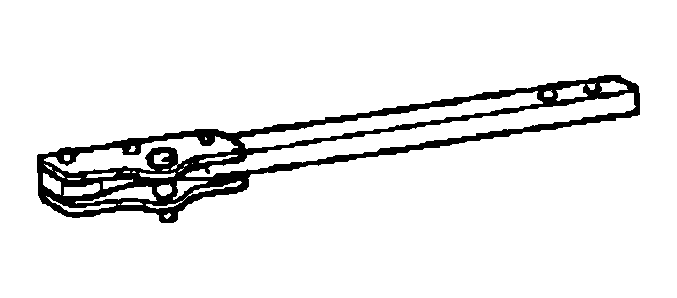

| 09330-00021 | Companion Flange Holding Tool | ||

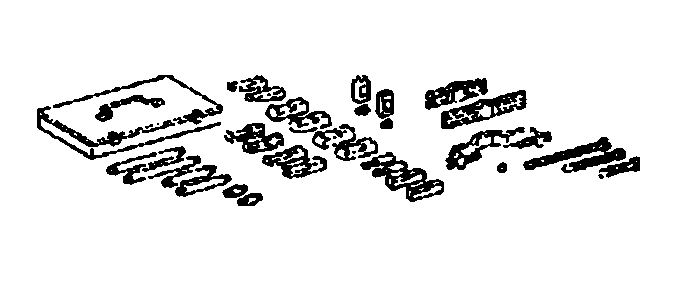

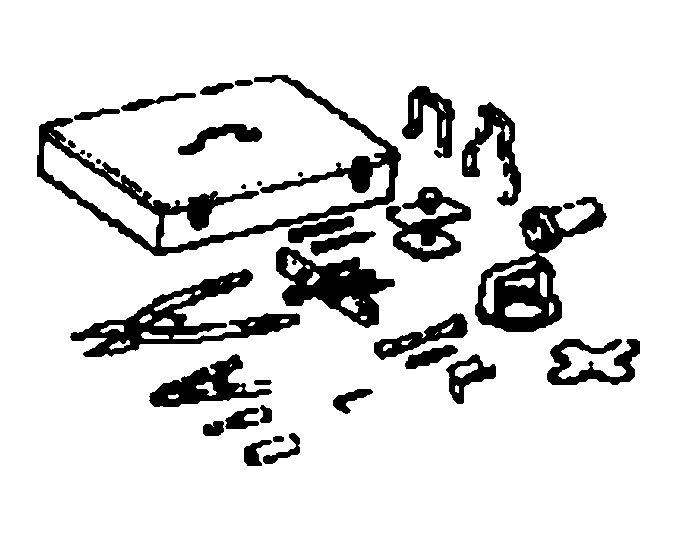

| 09350-30020 | TOYOTA Automatic Transmission Tool Set | ||
| (09350-07040) | No.2 Piston Spring Compressor | ||
| (09350-07070) | No.2 Snap Ring Expander | ||

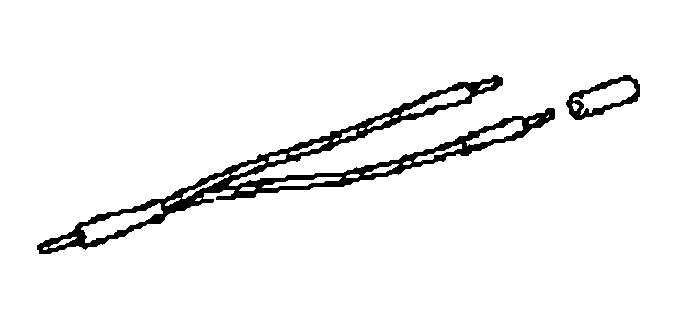

| 09843-18040 | Diagnosis Check Wire No.2 | ||

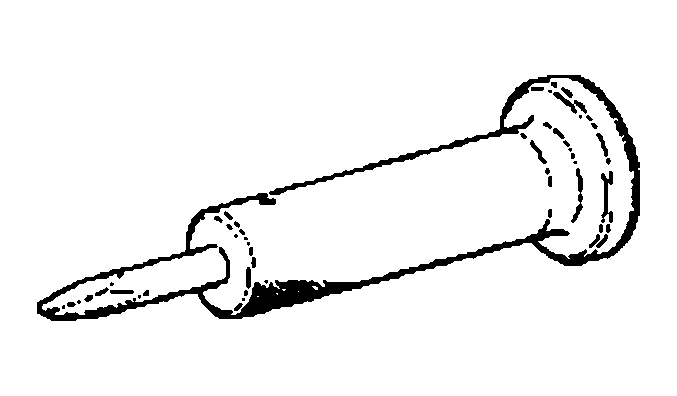

| 09930-00010 | Drive Shaft Nut Chisel | ||

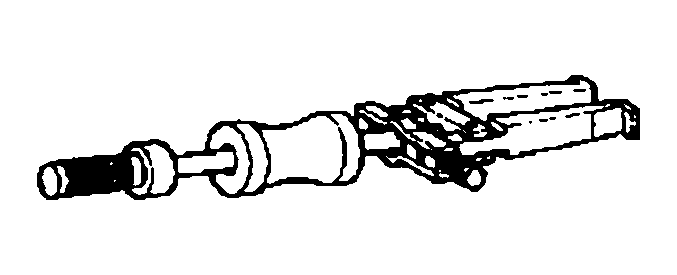

| 09950-00020 | Bearing Remover | ||
| 09950-40011 | Puller B Set | ||

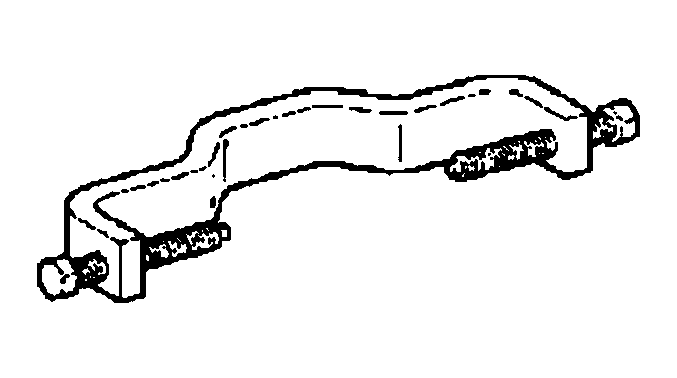

| (09951-04010) | Hanger 150 | ||

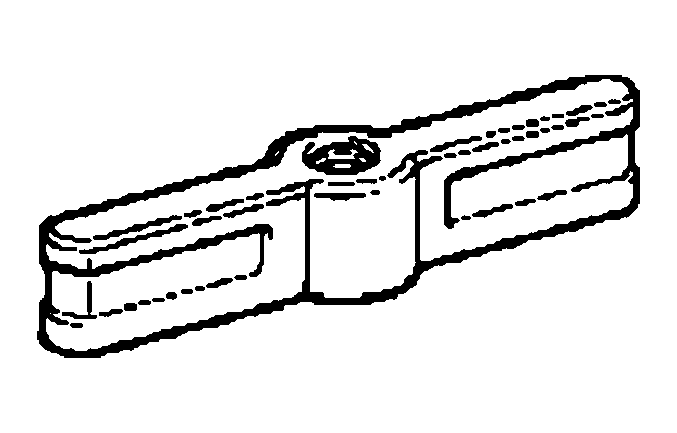

| (09952-04010) | Slide Arm | ||

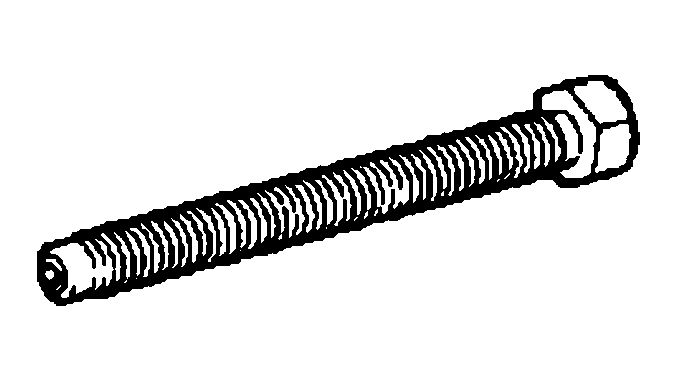

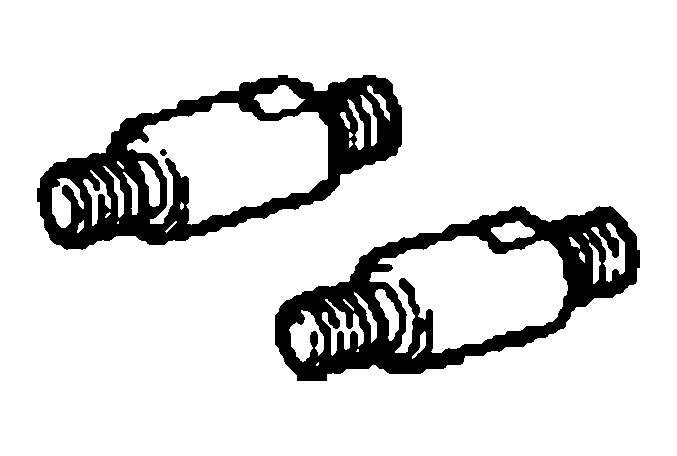

| (09953-04020) | Center Bolt 150 | ||

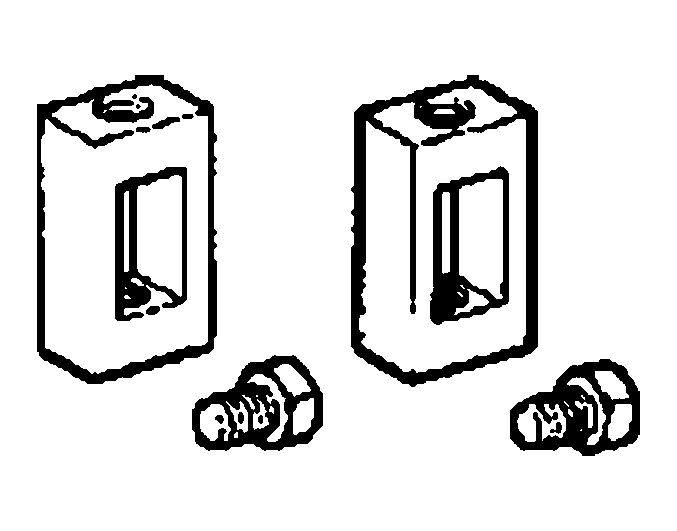

| (09954-04010) | Arm 25 | ||

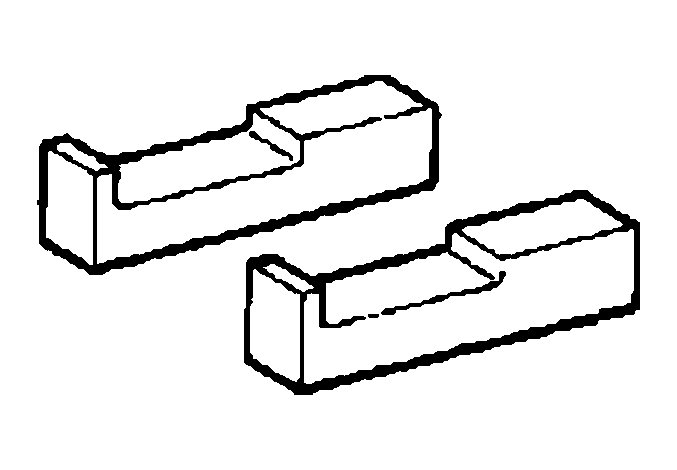

| (09955-04051) | Claw No.5 | ||

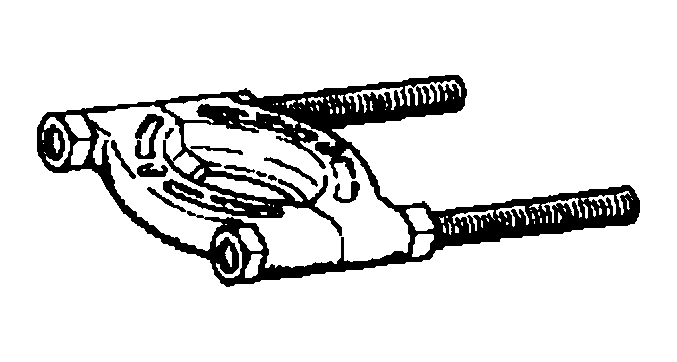

| (09958-04011) | Holder | ||

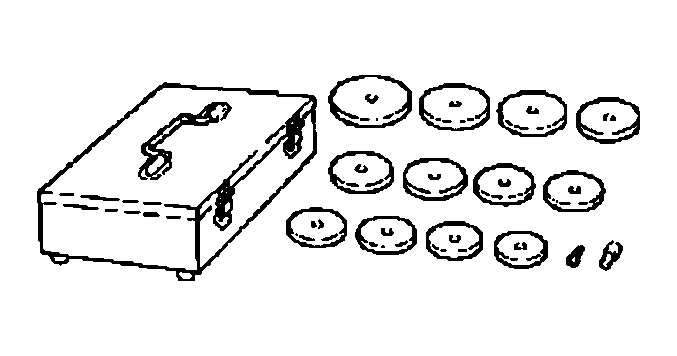

| 09950-60010 | Replacer Set | ||

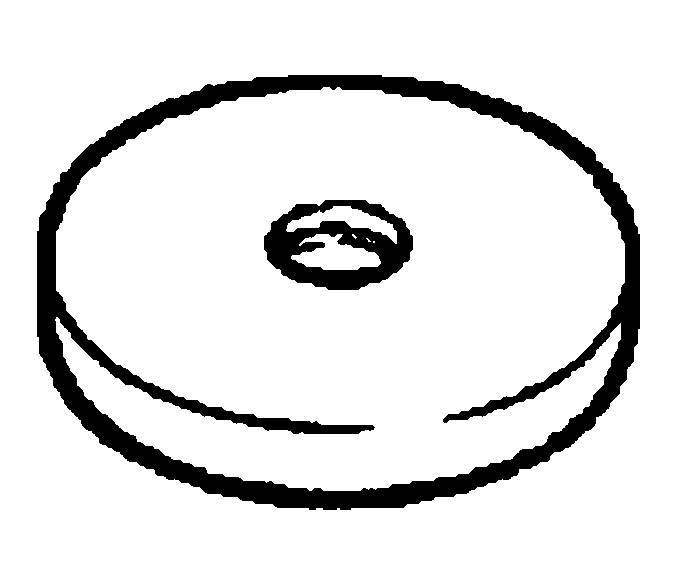

| (09951-00480) | Replacer 48 | ||

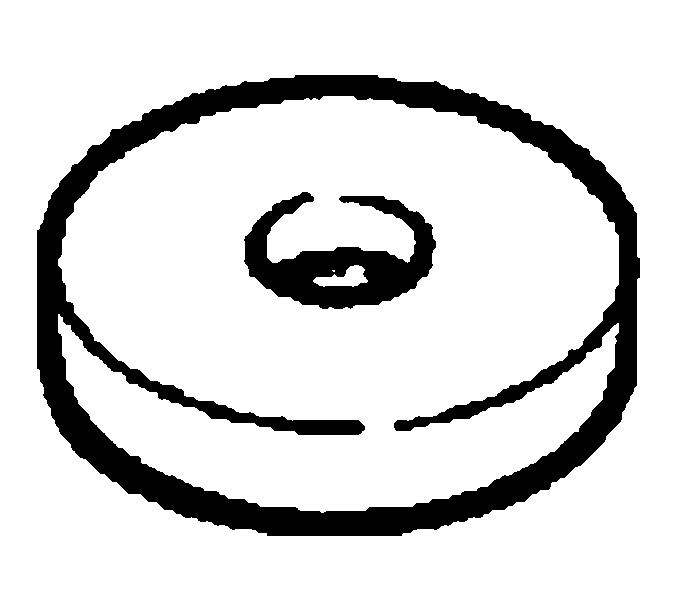

| (09951-00530) | Replacer 53 | ||
| (09951-00550) | Replacer 55 | ||
| (09951-00640) | Replacer 64 | ||
| 09950-60020 | Replacer Set No.2 | ||

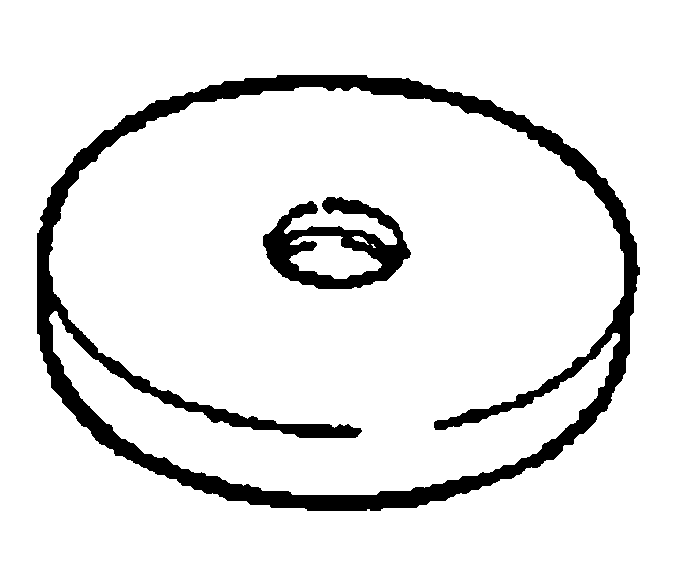

| (09951-00890) | Replacer 89 | ||
| (09951-00910) | Replacer 91 | ||

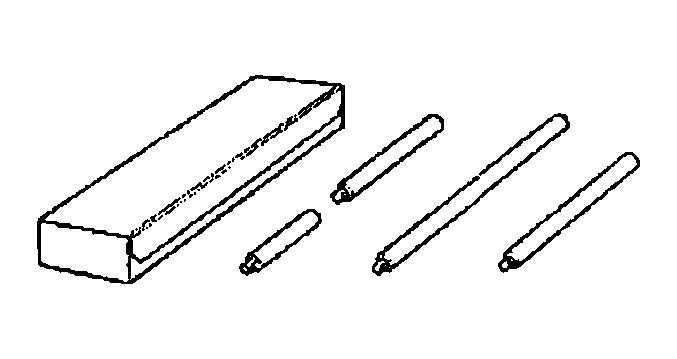

| 09950-70010 | Handle Set | ||

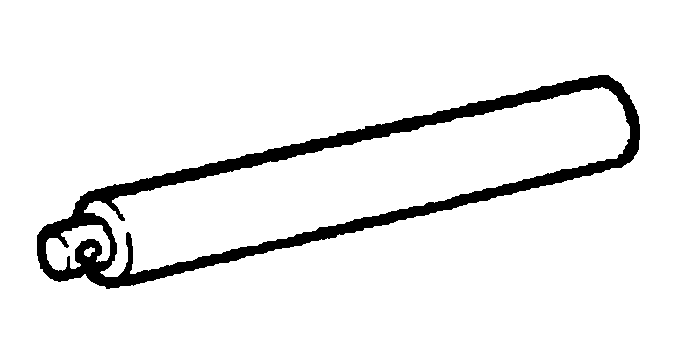

| (09951-07100) | Handle 100 | ||
| (09951-07150) | Handle 150 |
