2006 Lexus GS 430FACTORY OEM SERVICE PROCEDURE
Drive Shaft: SST
SST - DRIVE SHAFT

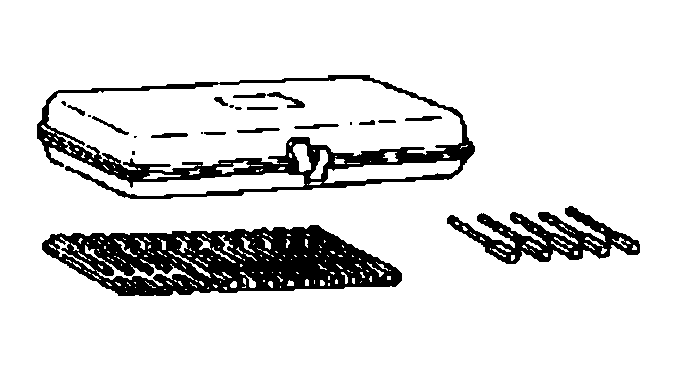

| 09240-00020 | Wire Gauge Set | ||
| 09309-36010 | Transmission Rear Bearing Replacer | ||
| 09316-20011 | Transfer Bearing Replacer | ||
| 09520-01010 | Drive Shaft Remover Attachment | ||
| 09520-24010 | Differential Side Gear Shaft Puller | ||
| (09520-32040) | Shocker Set | ||
| 09521-24010 | Rear Axle Shaft Puller | ||
| 09527-10011 | Rear Axle Shaft Bearing Remover | ||
| 09608-16042 | Front Hub Bearing Adjusting Tool | ||

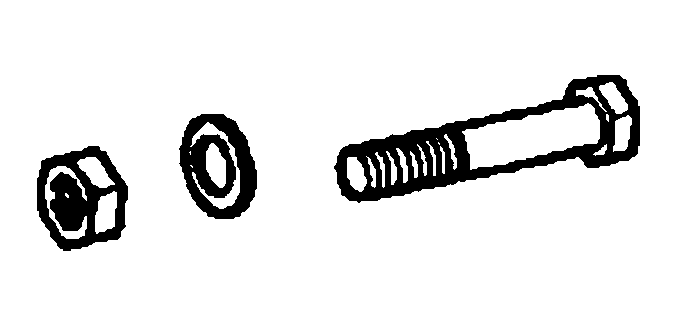

| (09608-02021) | Bolt & Nut | ||
| (09608-02041) | Retainer | ||
| 09628-00011 | Ball Joint Puller | ||

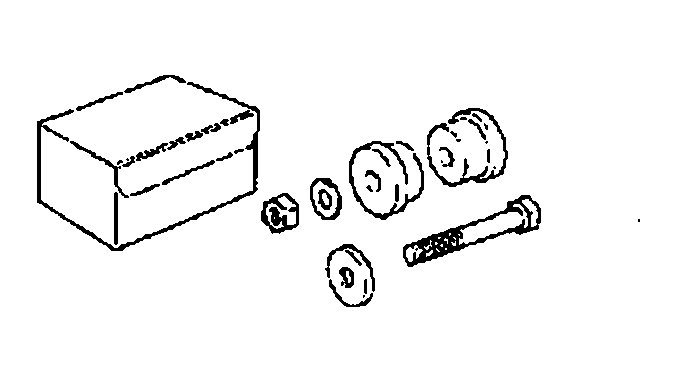

| 09710-22042 | Rear Suspension Bushing Tool Set | ||
| (09710-02051) | Base | ||

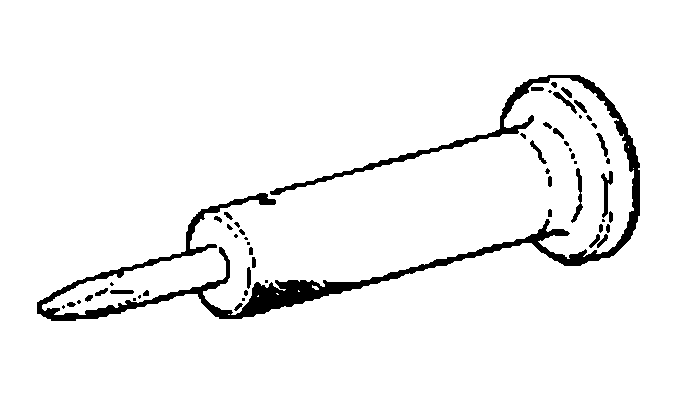

| 09930-00010 | Drive Shaft Nut Chisel | ||

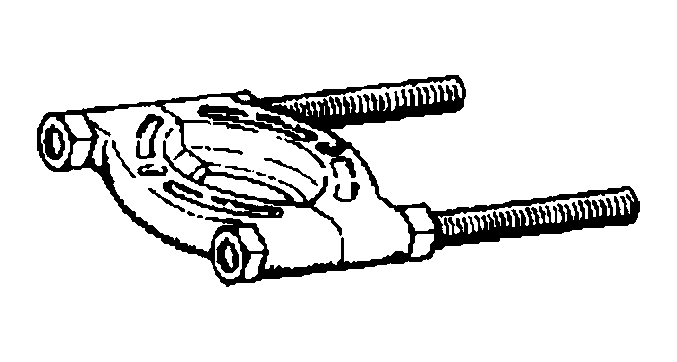

| 09950-00020 | Bearing Remover |
