2006 Lexus GS 430FACTORY OEM SERVICE PROCEDURE
3UZ-FE Fuel: SST
SST - 3UZ-FE FUEL

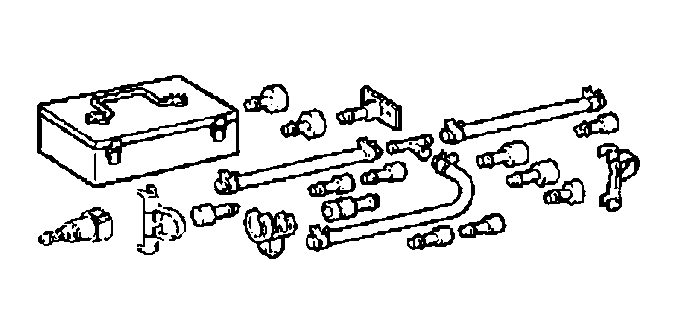

| 09268-41048 | Injection Measuring Tool Set | - | |

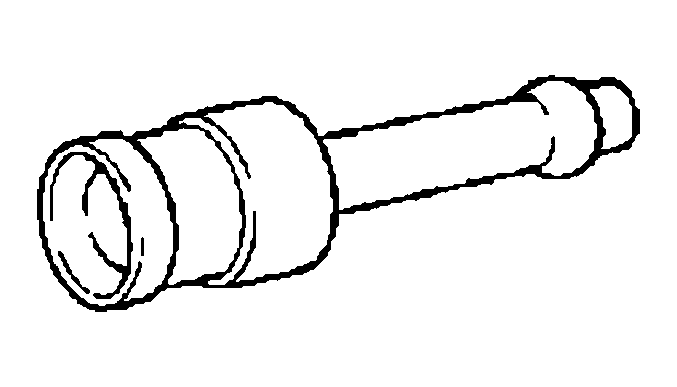

| (09268-41110) | Adaptor | - | |

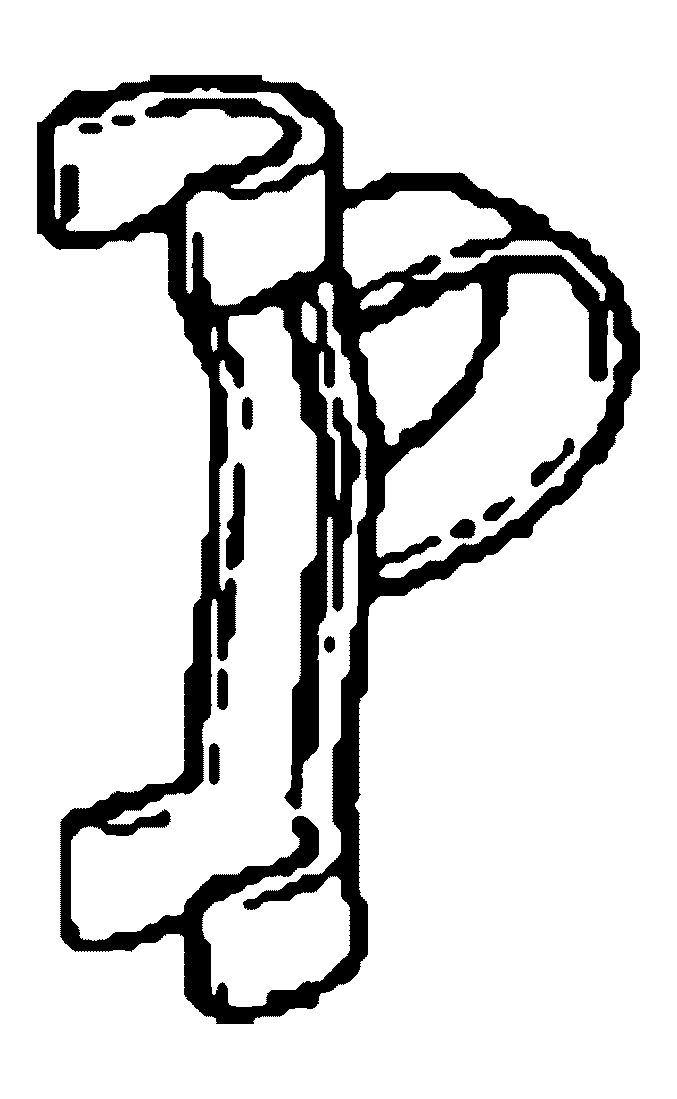

| (09268-41300) | Clamp | - | |

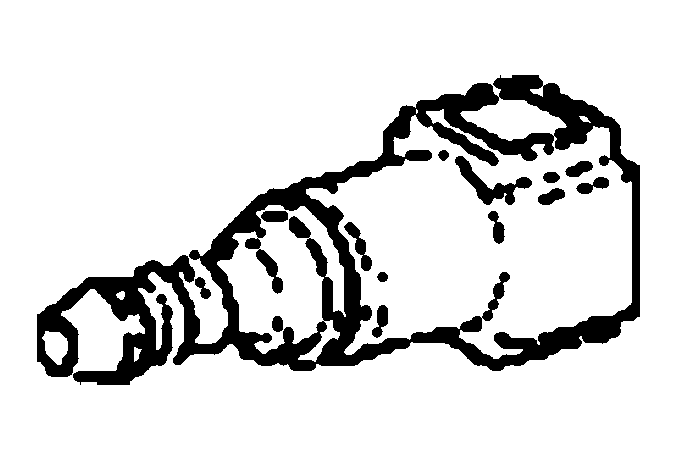

| (09268-41500) | Fuel Tube Connector | - | |
| (90467-13001) | Clip | - | |

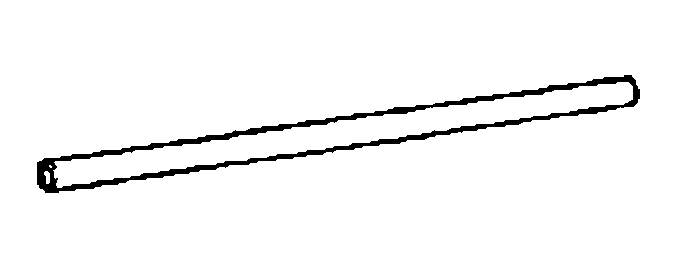

| (95336-08070) | Hose | - | |

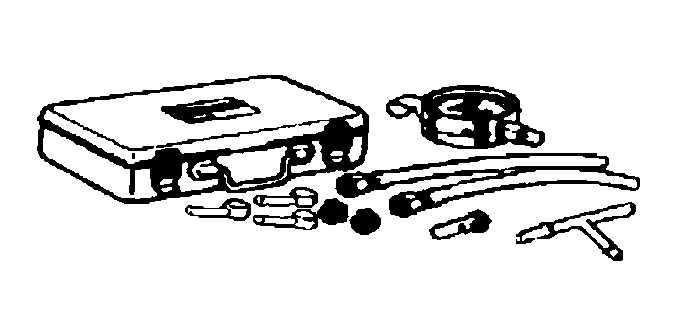

| 09268-45014 | EFI Fuel Pressure Gauge | - | |
| (09268-41190) | Adapter | - | |

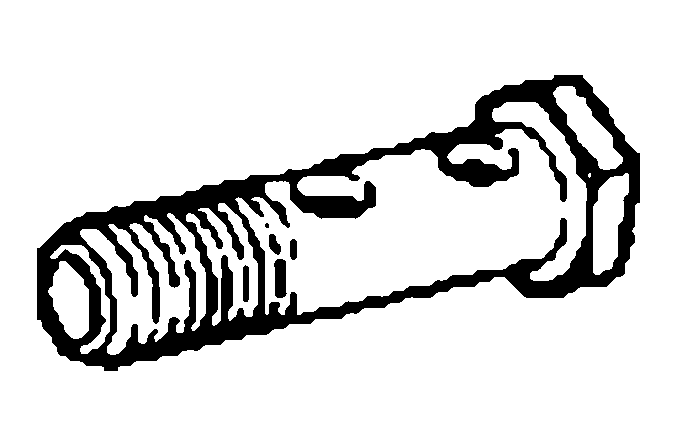

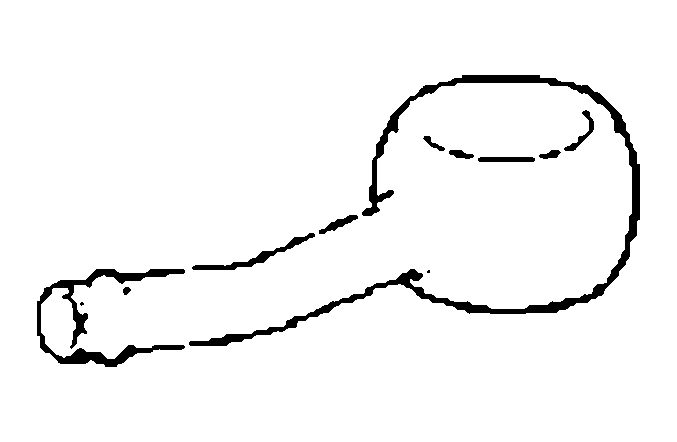

| (90405-06167) | I Union | - | |

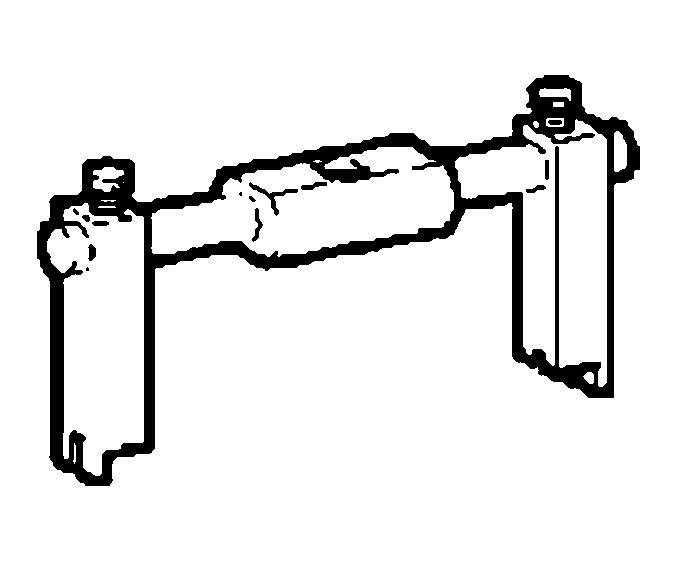

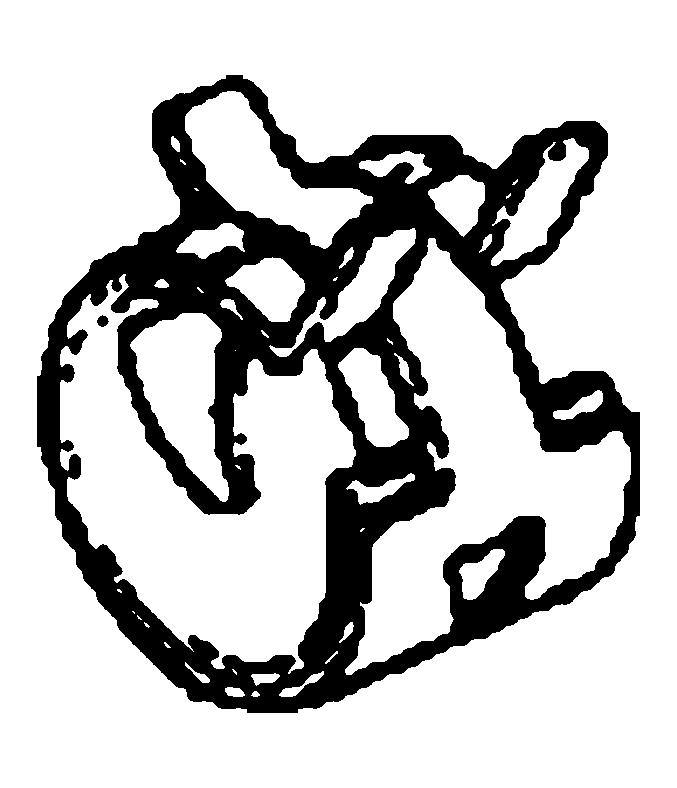

| 09808-14020 | Retainer Tool, Fuel Pump | - | |

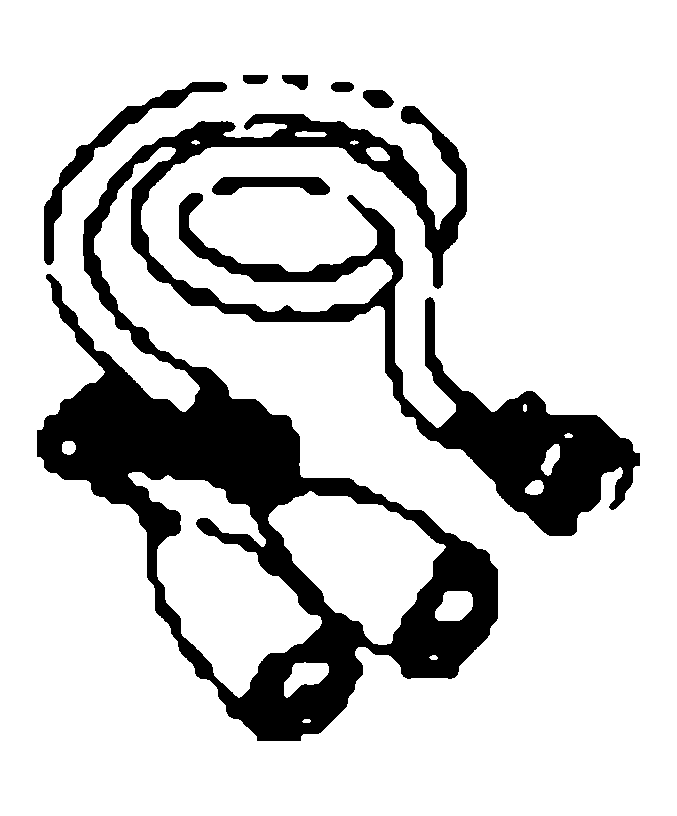

| 09842-30070 | Wire F EFI Inspection | - |
