2006 Lexus GS 430FACTORY OEM SERVICE PROCEDURE
3UZ-FE Engine Mechanical: SST
SST - 3UZ-FE ENGINE MECHANICAL

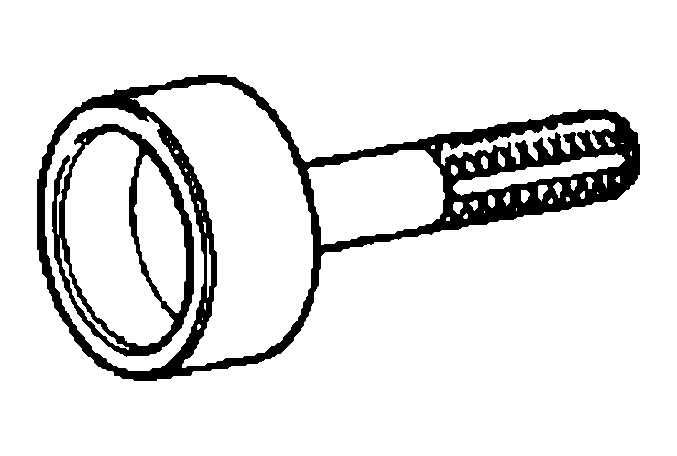

| 09201-01055 | Valve Guide Bushing Remover & Replacer 5.5 | - | |
| 09201-41020 | Valve Stem Oil Seal Replacer | - | |

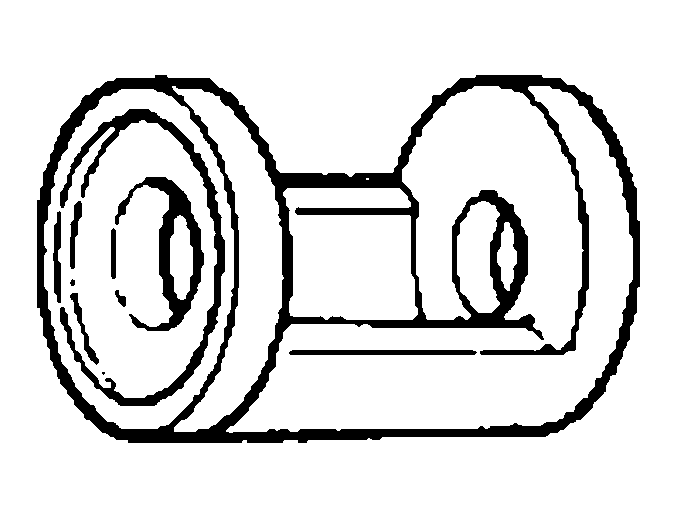

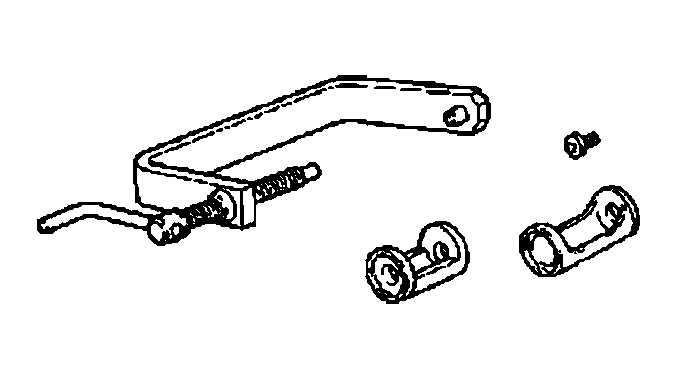

| 09202-70020 | Valve Spring Compressor | - | |
| (09202-00010) | Attachment | - | |

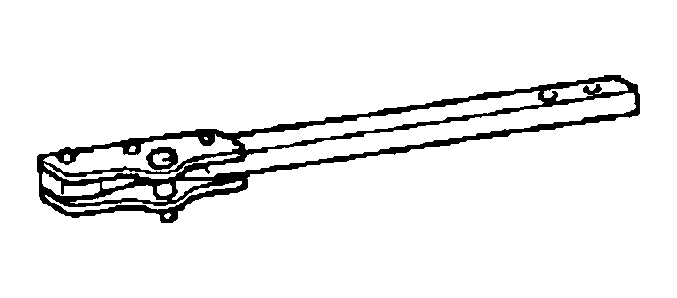

| 09213-70011 | Crankshaft Pulley Holding Tool | - | |

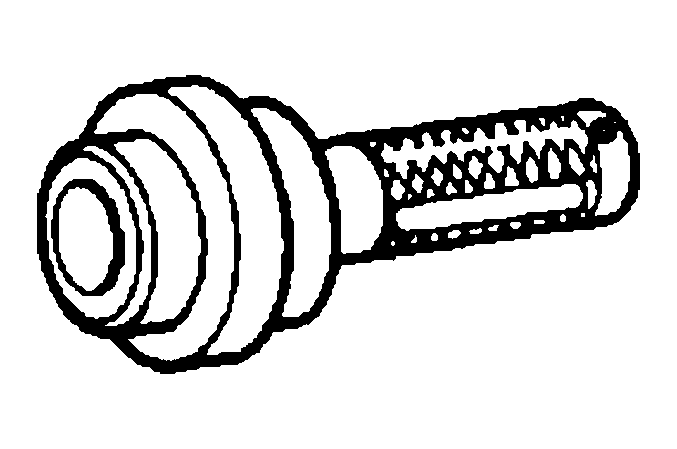

| 09222-30010 | Connecting Rod Bushing Remover & Replacer | - | |

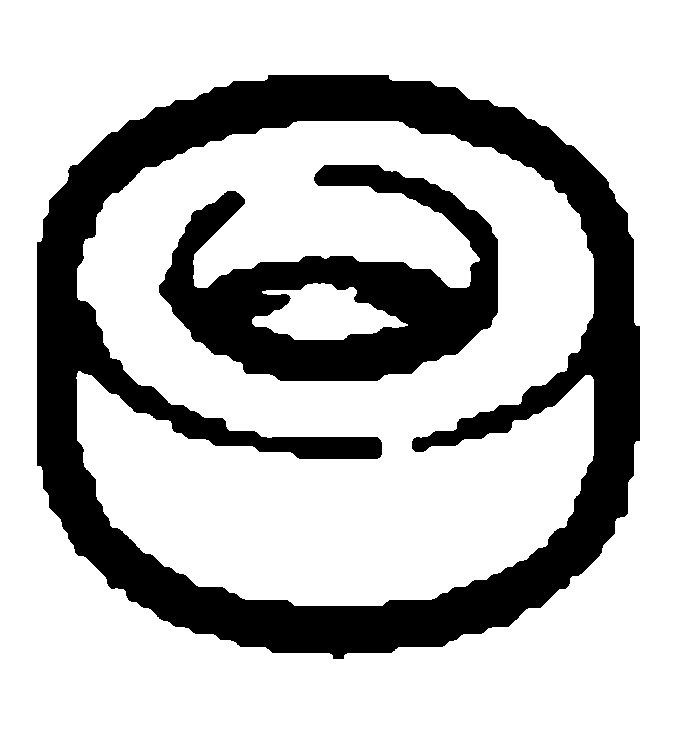

| 09223-46011 | Crankshaft Front Oil Seal Replacer | - | |
| 09223-56010 | Crankshaft Rear Oil Seal Replacer | - | |
| 09316-60011 | Transmission & Transfer Bearing Replacer | - | |
| (09316-00011) | Replacer Pipe | - | |
| 09330-00021 | Companion Flange Holding Tool | - | |
| 09550-60010 | Differential Side Bearing Replacer | - | |
| (09951-00200) | Replacer 20 | - | |

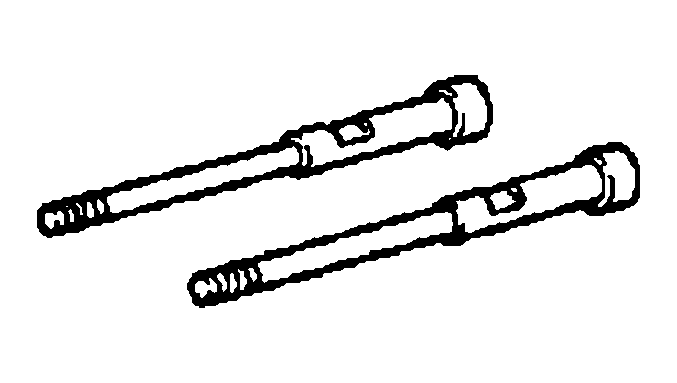

| 09950-50013 | Puller C Set | - | |

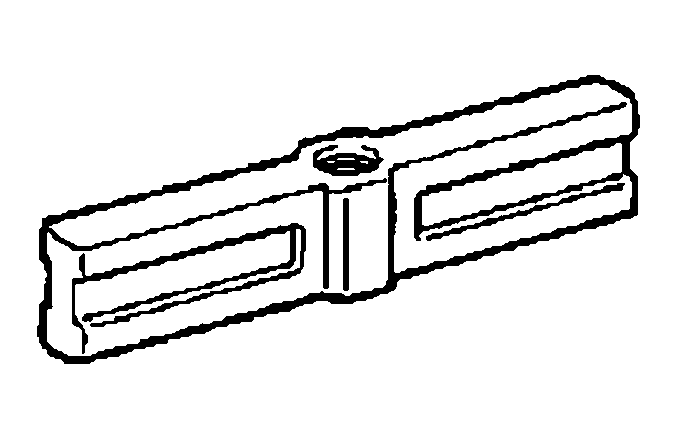

| (09951-05010) | Hanger 150 | - | |

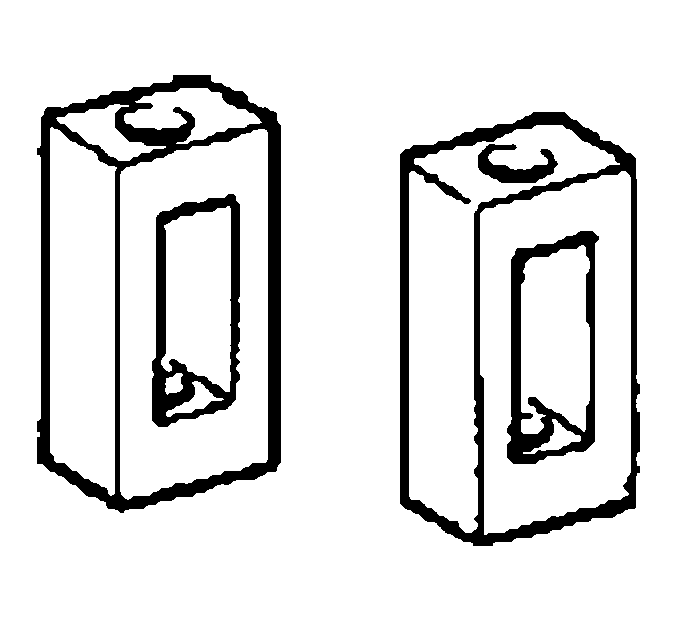

| (09952-05010) | Slide Arm | - | |

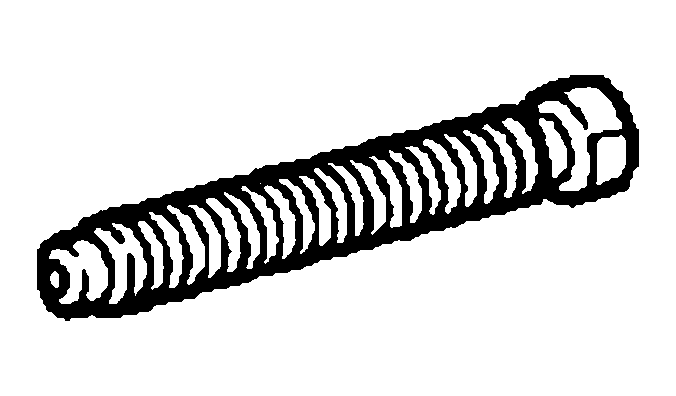

| (09953-05010) | Center Bolt 100 | - | |
| (09953-05020) | Center Bolt 150 | - | |
| (09954-05010) | Claw No.1 | - | |
| (09954-05021) | Claw No.2 | - | |
| 09950-60010 | Replacer Set | - | |

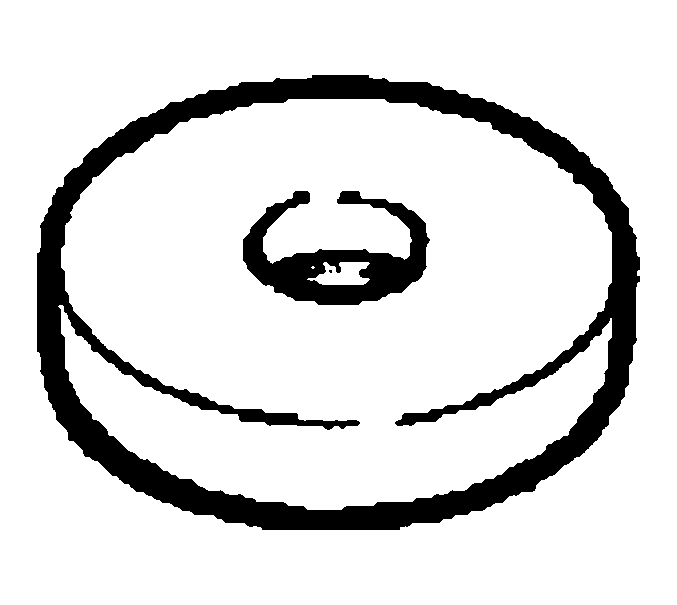

| (09951-00240) | Replacer 24 | - | |
| (09951-00440) | Replacer 44 | - | |
| (09952-06010) | Adapter | - | |

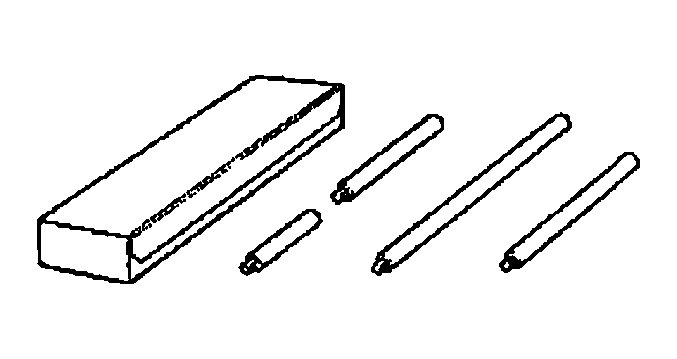

| 09950-70010 | Handle Set | - | |

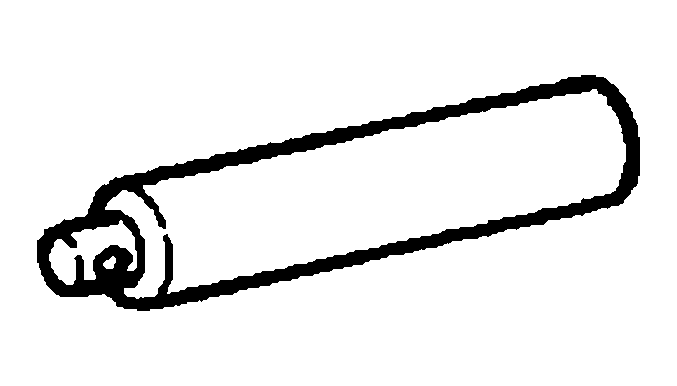

| (09951-07100) | Handle 100 | - | |

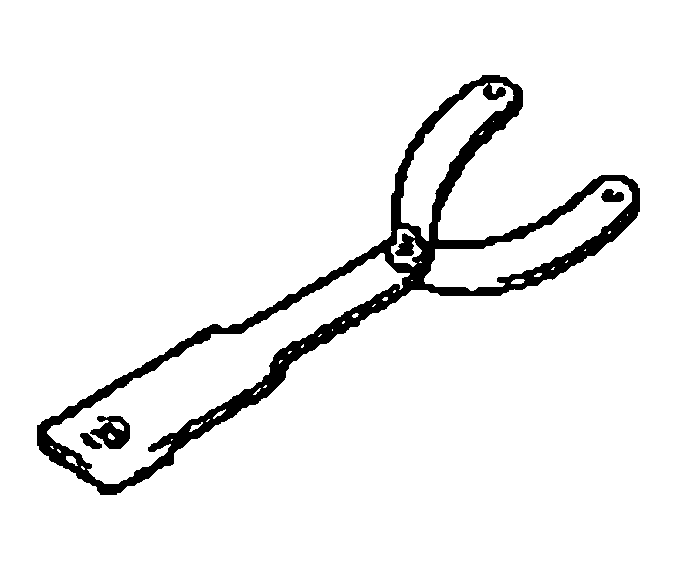

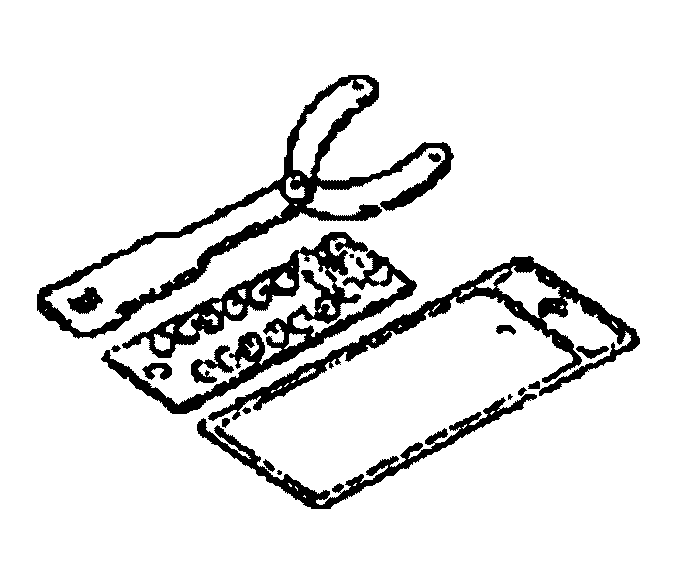

| 09960-10010 | Variable Pin Wrench Set | - | |
| (09962-01000) | Variable Pin Wrench Arm Assy | - | |
| (09963-00350) | Pin 3.5 | - | |
| (09963-00500) | Pin 5 | - |
