Steering Sensor: Installation
- INSTALL STEERING SENSOR

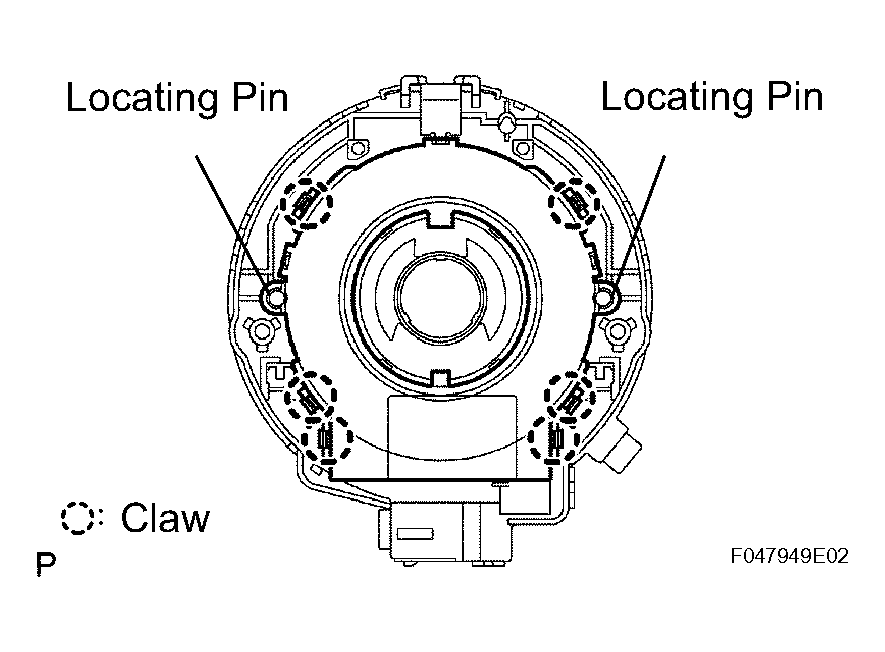

- Align the locating pins, engage the claws and install the steering sensor to the spiral cable sub-assembly
- INSTALL SPIRAL CABLE SUB-ASSEMBLY WITH STEERING SENSOR (See INSTALLATION )
- INSTALL STEERING COLUMN COVER
For 3GR-FSE (See INSTALLATION )
For 3UZ-FE (See INSTALLATION )
- CENTER SPIRAL CABLE (See INSTALLATION )
- INSTALL STEERING WHEEL ASSEMBLY
For 3GR-FSE (See INSTALLATION )
For 3UZ-FE (See INSTALLATION )
- INSTALL HORN BUTTON ASSEMBLY (See INSTALLATION )
- INSPECT STEERING WHEEL CENTER POINT
- CONNECT BATTERY NEGATIVE TERMINAL
- INSPECT HORN BUTTON ASSEMBLY (See INSTALLATION )
- INSPECT SRS WARNING LIGHT
(See DATA LIST / ACTIVE TEST )
- PERFORM INITIALIZATION
(See INITIALIZATION )
Same systems need initialization after reconnecting the cable to the negative battery cable Claw
