Check For Intermittent Problems

HINT:

A momentary interruption (open circuit) in the connectors and/or wire harness between the sensors and ECUs can be detected in the ECU data list function of the intelligent tester.

1. Turn the engine switch off and connect the intelligent tester to the DLC3.
   Fig 1: Identifying Intelligent Tester To DLC3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the engine switch on (IG). Follow the directions on the intelligent tester to display the DATA LIST and select areas where momentary interruption should be monitored.

   HINT:

   A momentary interruption (open circuit) cannot be detected for 3 seconds after the engine switch is turned on (IG) (initial check).

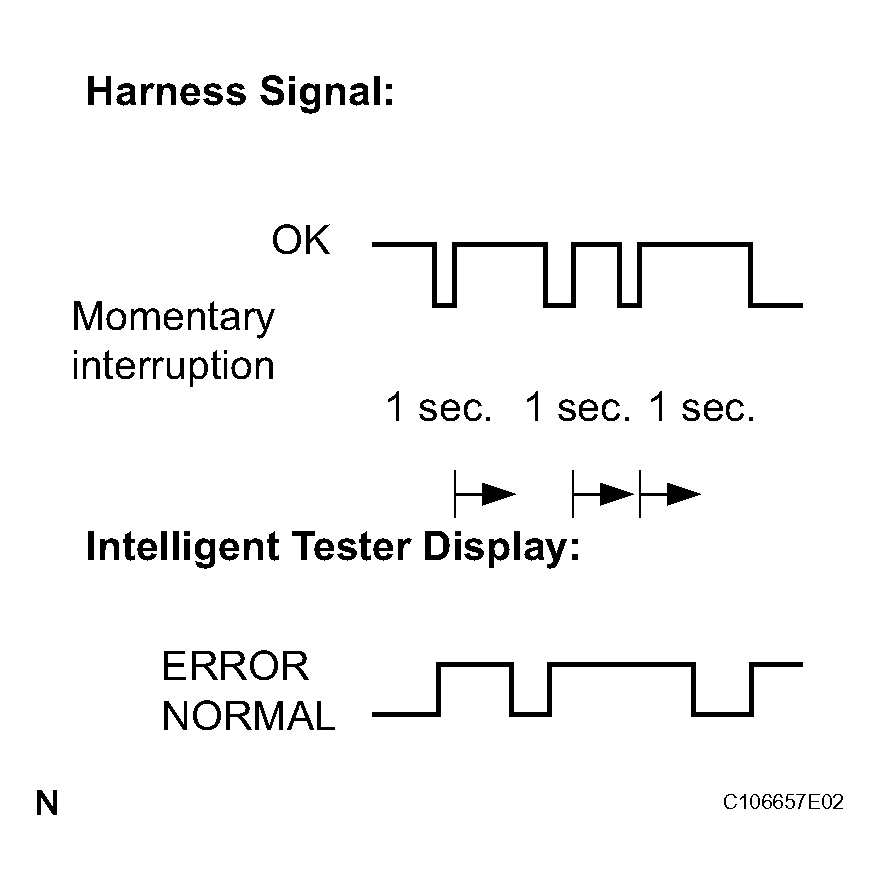

   Fig 2: Identifying Momentary Interruption

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   ABS / VSC:

   ABS / VSC - ITEM (DISPLAY) MEASUREMENT ITEM / RANGE (DISPLAY) AND NORMAL CONDITION CHART



   Item (Display)	Measurement Item / Range (Display)	Normal Condition	Diagnostic Note
   FR SPD OPN	FR speed sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   FL SPD OPN	FL speed sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   RR SPD OPN	RR speed sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   RL SPD OPN	RL speed sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   EFI COM OPN	EFI communication open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   YAW RATE OPN	Yaw rate sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   DECELERAT OPN	Acceleration sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   STEERING OPN	Steering angle sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   M/C OPN	Master cylinder pressure sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   M/C2 OPN	Master cylinder pressure sensor 2 open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   STROKE OPN	Stroke sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   FR W/C OPN	FR wheel cylinder pressure sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   FL W/C OPN	FL wheel cylinder pressure sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   RR W/C OPN	RR wheel cylinder pressure sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   RL W/C OPN	RL wheel cylinder pressure sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   ACC OPEN	Accumulator pressure sensor open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-

   HINT:

   • If the status remains on (ERROR displayed), check the continuity between the ECU and the sensors, or between ECUs.
   • The ERROR display on the intelligent tester remains on for 1 second after the harness signal changes from momentary interruption (open circuit) to normal condition.
3. While observing the screen, gently jiggle the connector or wire harness between the ECU and sensors, or between ECUs.

   Result:

   ERROR display does not change.

   HINT:

   The connector and/or wire harness will be in momentary interruption (open circuit) if the display changes. Repair or replace connector and/or wire harness as one of them is faulty.

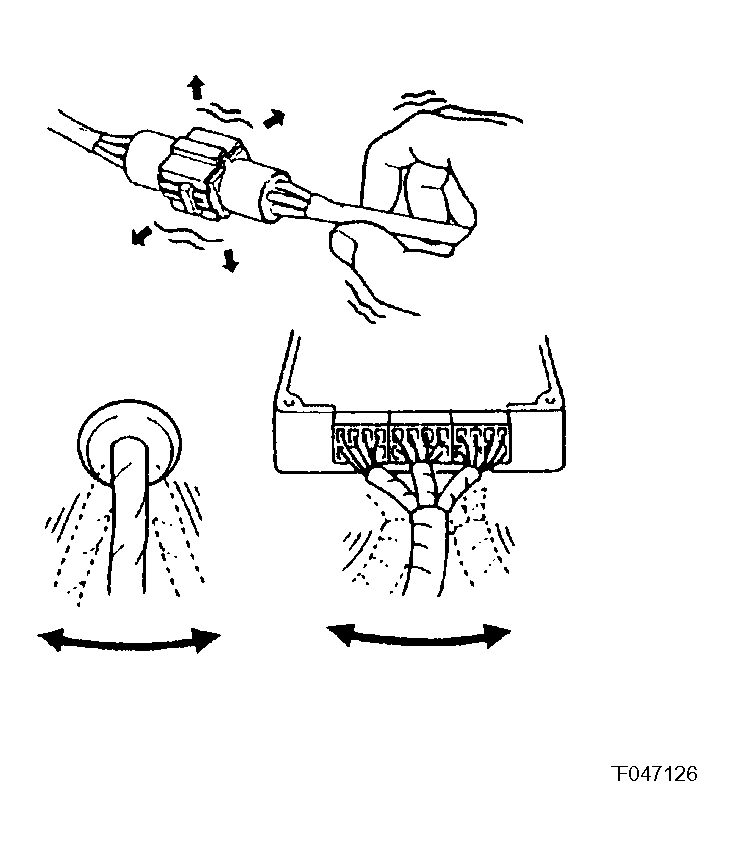

   Fig 3: Identifying Connector Or Wire Harness Between ECU And Sensors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
