2006 Lexus GS 300 AWDFACTORY OEM SERVICE PROCEDURE
A960E Automatic Transmission: SST
SST SPECIFICATIONS

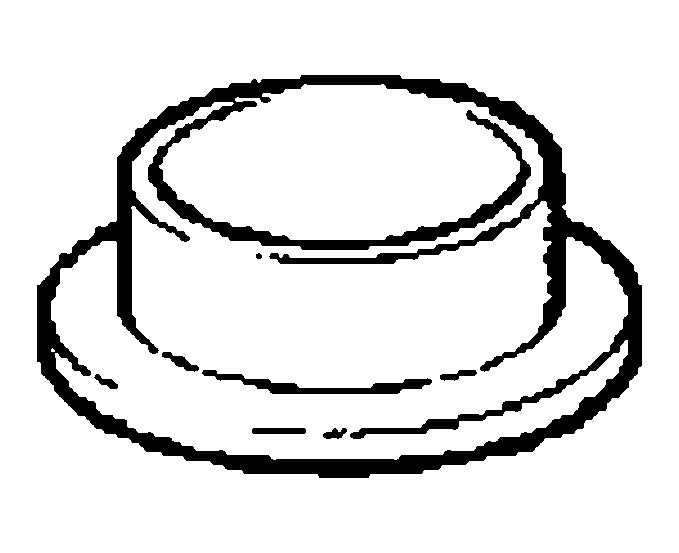

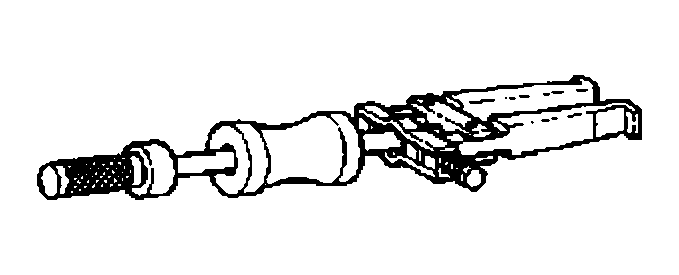

| 09308-00010 | Oil Seal Puller | ||
| 09316-20011 | Transfer Bearing Replacer | ||
| 09316-60011 | Transmission & Transfer Bearing Replacer | ||
| (09316-00011) | Replacer Pipe | ||

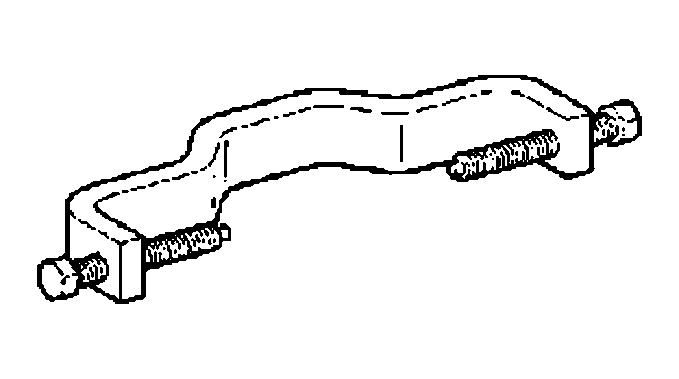

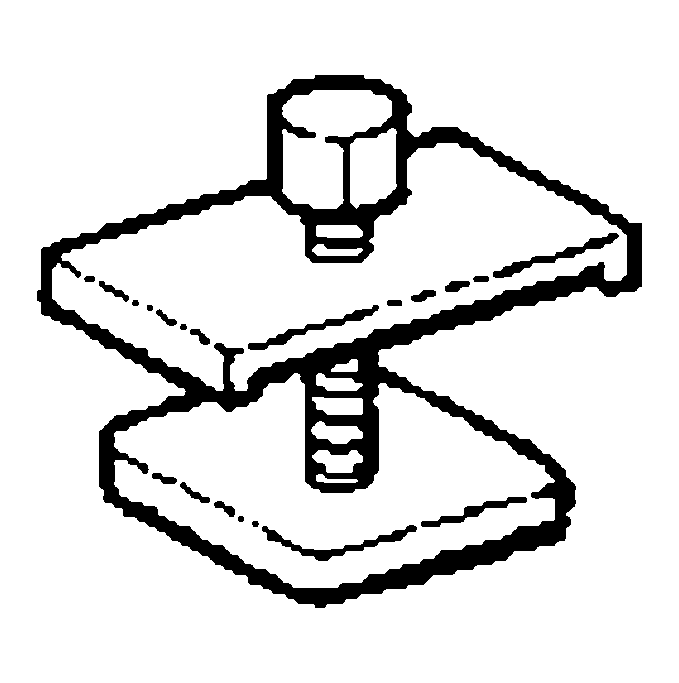

| 09320-89010 | Transfer Clutch Spring Compressor | ||
| 09325-40010 | Transmission Oil Plug | ||
| 09350-30020 | TOYOTA Automatic Transmission Tool Set | ||
| (09350-06120) | No.2 Measure Terminal | ||
| (09350-07040) | No.2 Piston Spring Compressor | ||
| (09350-07050) | No.3 Piston Spring Compressor | ||

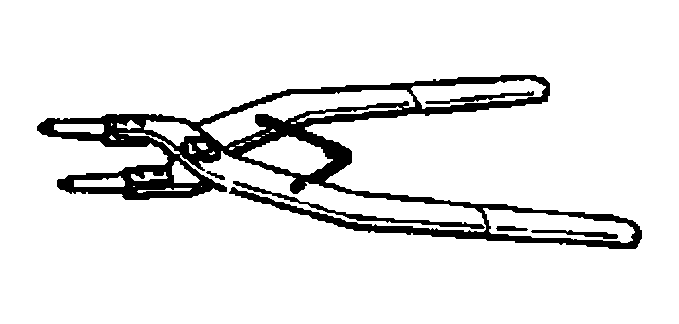

| (09350-07060) | No.1 Snap Ring Expander | ||
| (09350-07070) | No.2 Snap Ring Expander | ||
| (09350-07080) | Brake Reaction Sleeve Puller | ||
| (09350-07110) | Oil Seal Replacer | ||
| (09351-32140) | Oil Seal Replacer | ||
| 09350-32014 | TOYOTA Automatic Transmission Tool Set | ||
| (09351-32010) | One-way Clutch Test Tool | ||

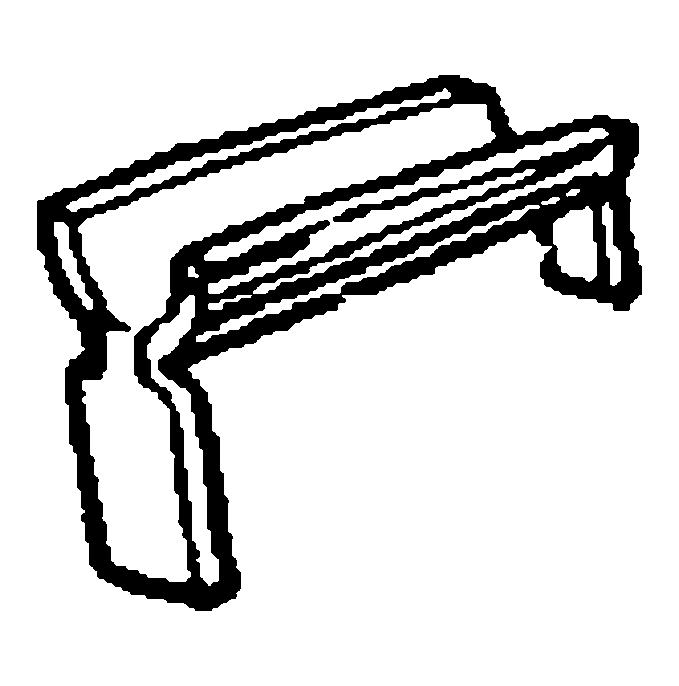

| (09351-32020) | Stator Stopper | ||

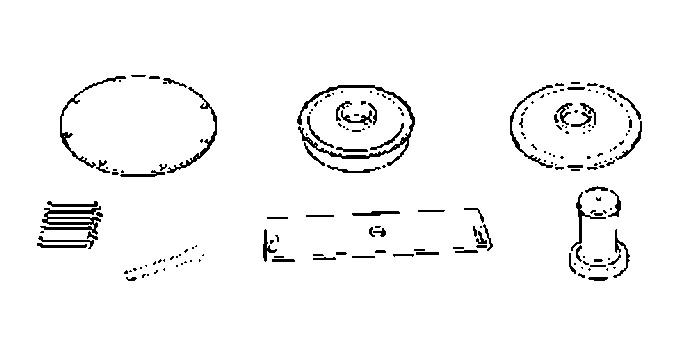

| 09351-40010 | Tool Set, TOYOTA Automatic Transmission | ||
| (09351-04010) | Pipe | ||
| (09351-04020) | Spring Compressor No.1 | ||
| (09351-04030) | Spring Compressor No.2 | ||

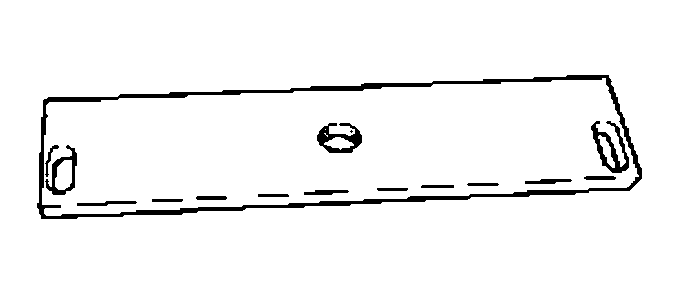

| (09351-04040) | Plate | ||

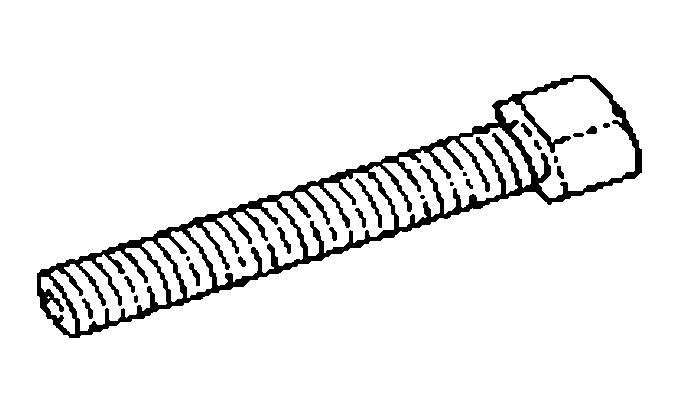

| (09351-04050) | Bolt | ||

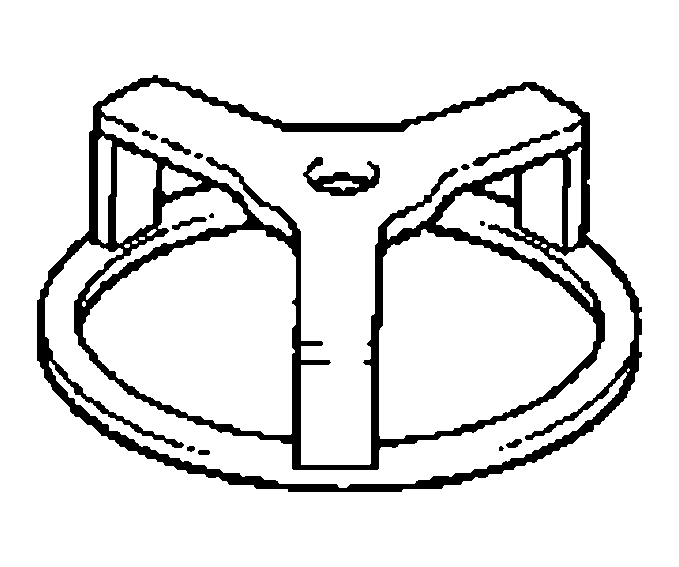

| 09387-00070 | First & Reverse Brake Wrench | ||

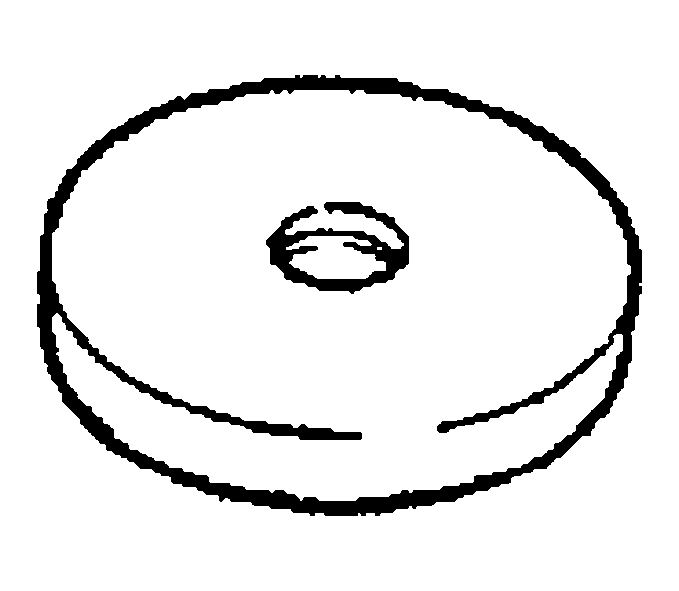

| 09518-36020 | Rear Axle Hub Oil Seal Replacer | ||

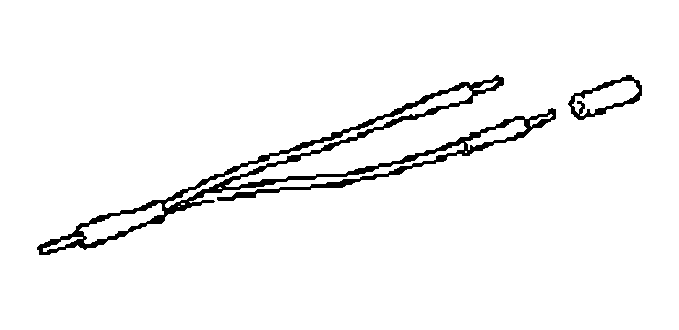

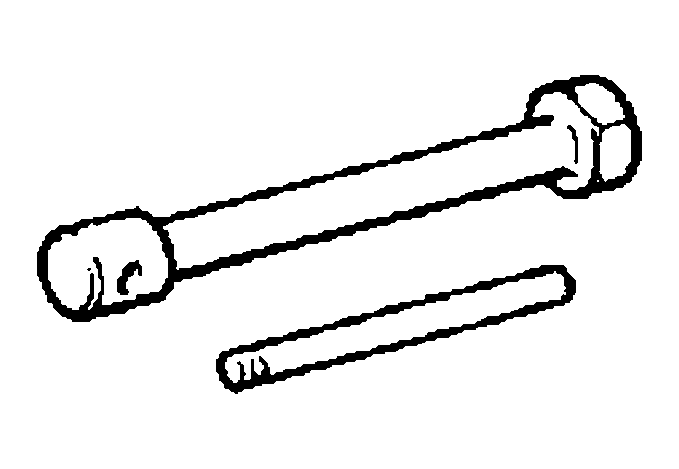

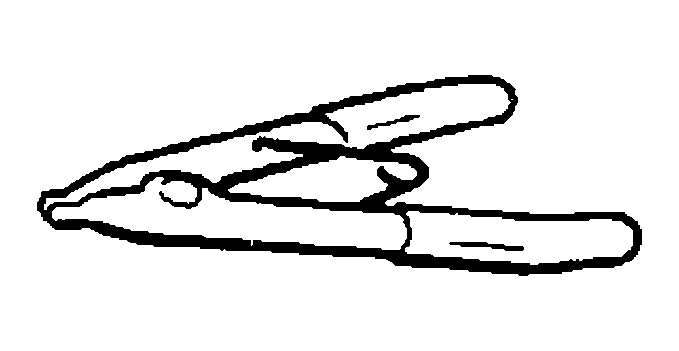

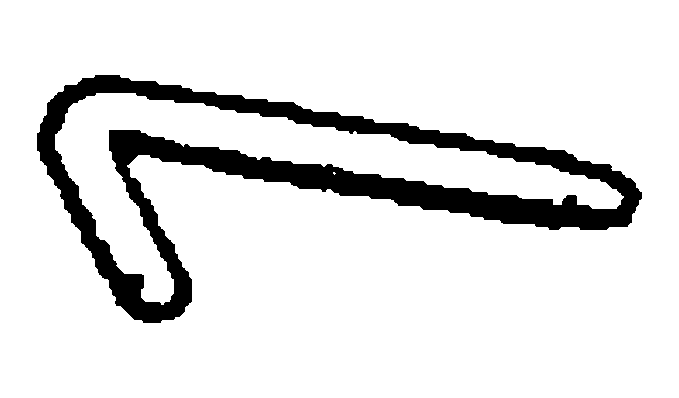

| 09843-18040 | Diagnosis Check Wire No.2 | ||

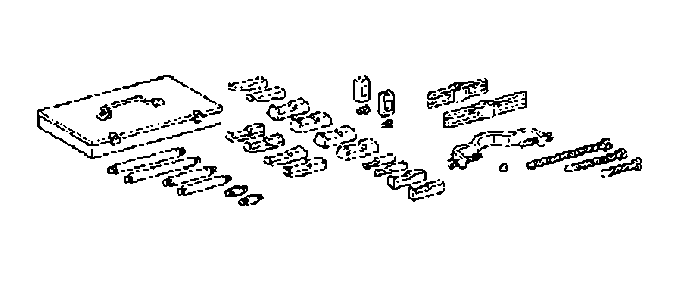

| 09950-40011 | Puller B Set | ||
| (09951-04010) | Hanger 150 | ||

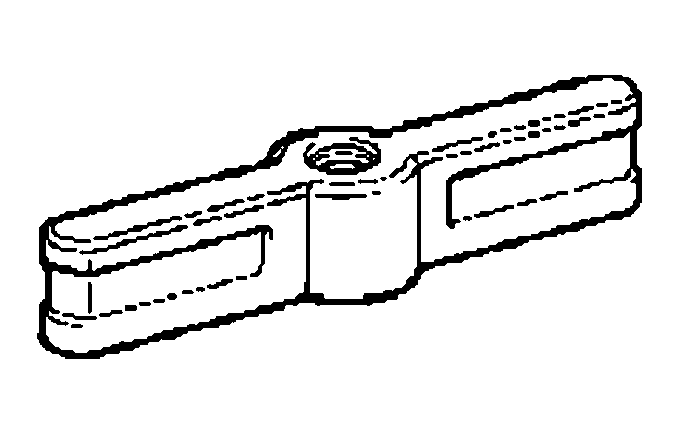

| (09952-04010) | Slide Arm | ||
| (09953-04020) | Center Bolt 150 | ||
| (09954-04010) | Arm 25 | ||
| (09955-04051) | Claw No.5 | ||

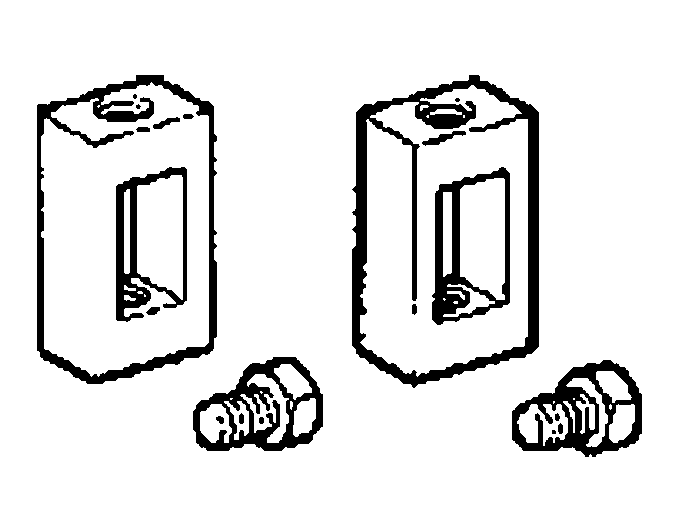

| (09958-04011) | Holder | ||

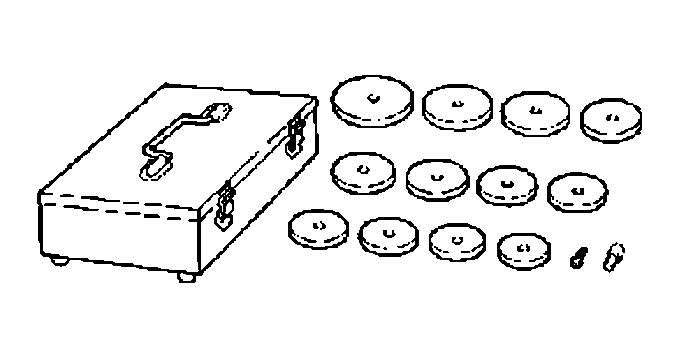

| 09950-60020 | Replacer Set No.2 | ||
| (09951-01030) | Replacer 103 |
