2006 Lexus GS 300 AWDFACTORY OEM SERVICE PROCEDURE
A760H Automatic Transmission: SST
SST SPECIFICATIONS

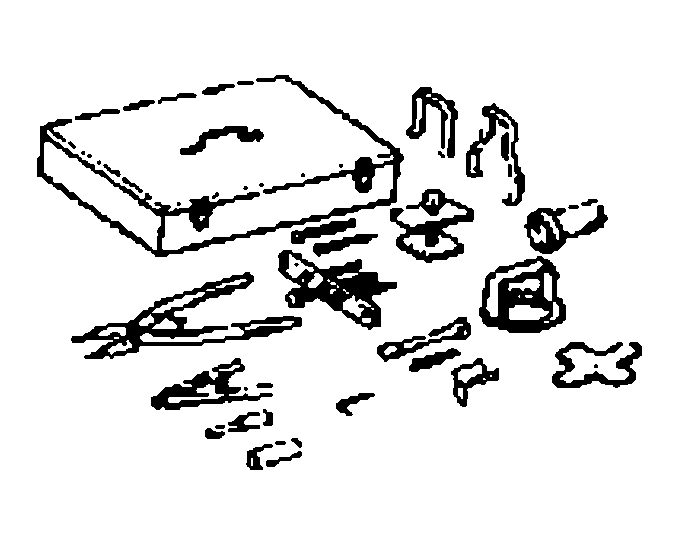

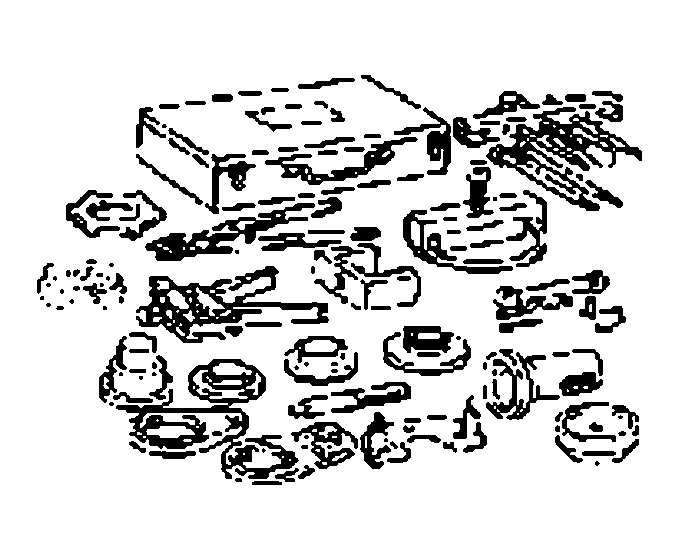

| 09350-30020 | TOYOTA Automatic Transmission Tool Set | ||
| (09350-06120) | No.2 Measure Terminal | ||
| (09350-07040) | No.2 Piston Spring Compressor | ||
| (09350-07050) | No.3 Piston Spring Compressor | ||

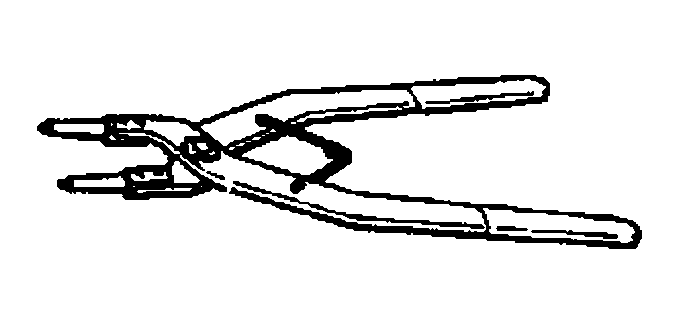

| (09350-07060) | No.1 Snap Ring Expander | ||
| (09350-07070) | No.2 Snap Ring Expander | ||
| (09350-07080) | Brake Reaction Sleeve Puller | ||
| (09350-07110) | Oil Seal Replacer | ||
| (09351-32140) | Oil Seal Replacer | ||
| 09350-32014 | TOYOTA Automatic Transmission Tool Set | ||
| (09351-32010) | One-way Clutch Test Tool | ||
| (09351-32020) | Stator Stopper | ||

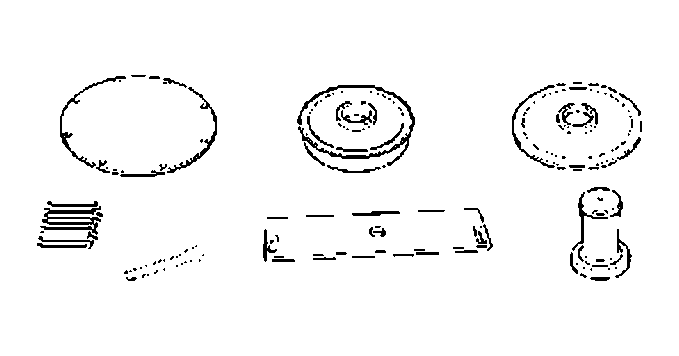

| 09351-40010 | Tool Set, TOYOTA Automatic Transmission | ||
| (09351-04010) | Pipe | ||
| (09351-04020) | Spring Compressor No.1 | ||
| (09351-04030) | Spring Compressor No.2 | ||

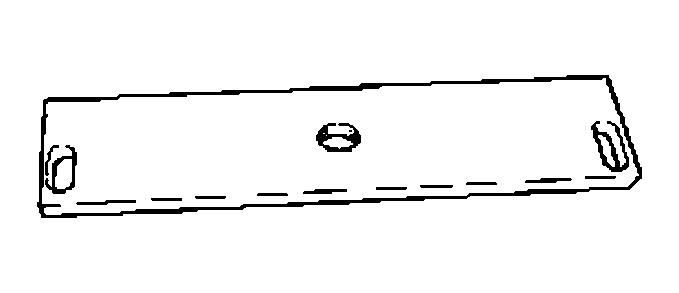

| (09351-04040) | Plate | ||

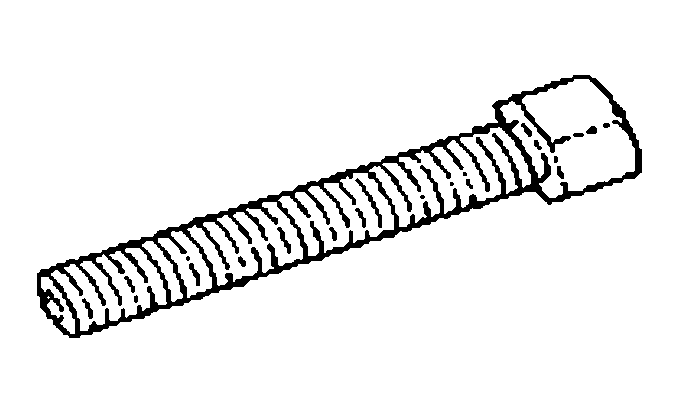

| (09351-04050) | Bolt | ||
| (09351-04060) | Spring Compressor No.3 | ||
| (09351-04070) | Bolt Set | ||
| 09387-00050 | Under Drive Gear Puller | ||

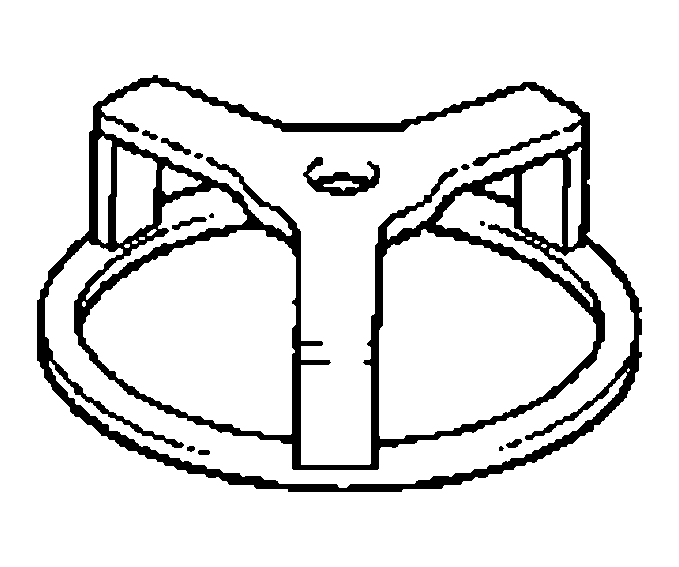

| 09387-00070 | First & Reverse Brake Wrench | ||
| 09518-36020 | Rear Axle Hub Oil Seal Replacer | ||

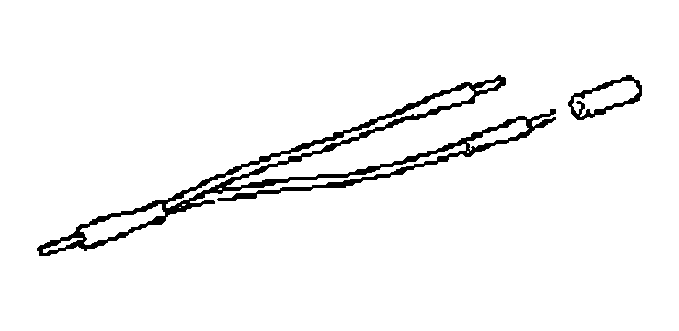

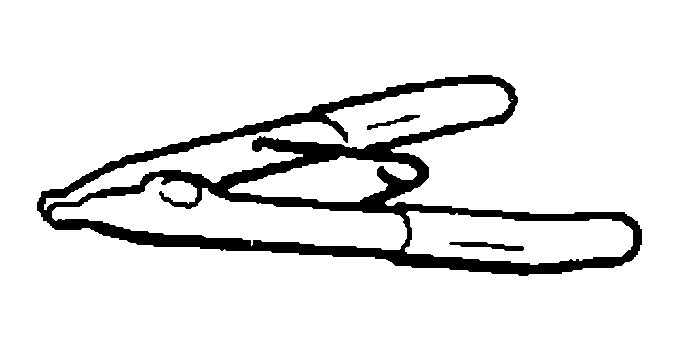

| 09843-18040 | Diagnosis Check Wire No.2 |
