2006 Lexus GS 300 AWDFACTORY OEM SERVICE PROCEDURE
3GR-FSE Fuel: SST
INJECTOR SEAL TOOL SET SPECIFICATIONS

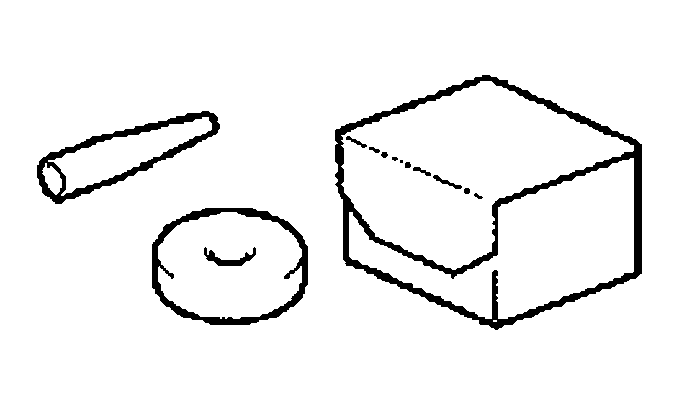

| 09260-39015 | INJECTOR SEAL TOOL SET | ||

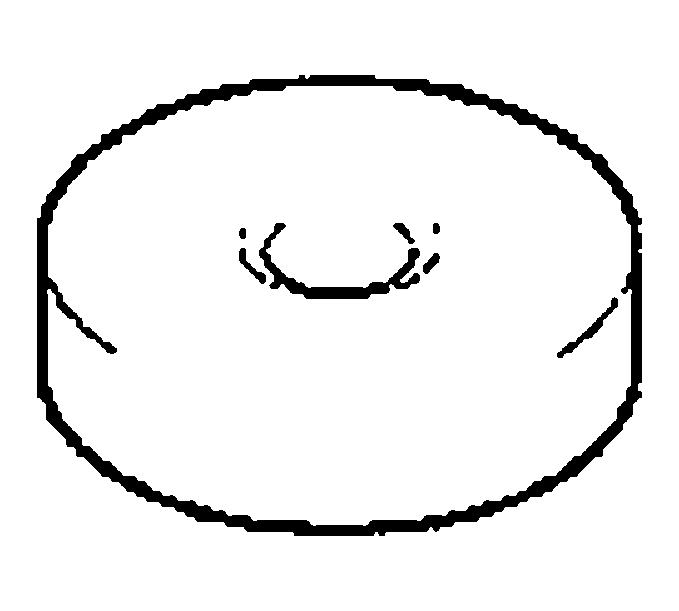

| (09268-03010) | INJECTOR SEAL HOLDER | ||

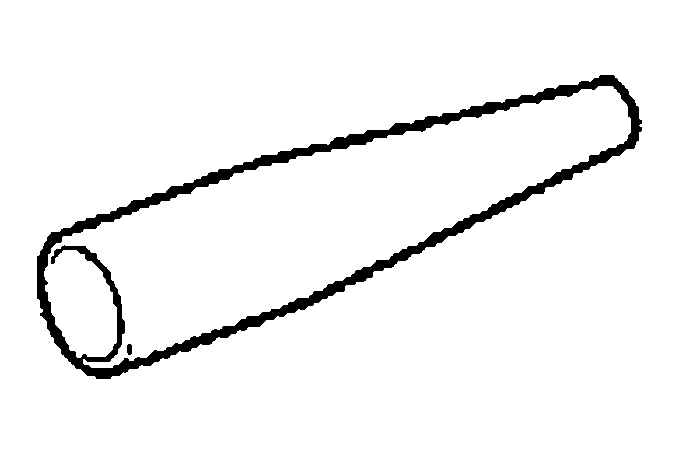

| (09268-03020) | INJECTOR SEAL GUIDE | ||

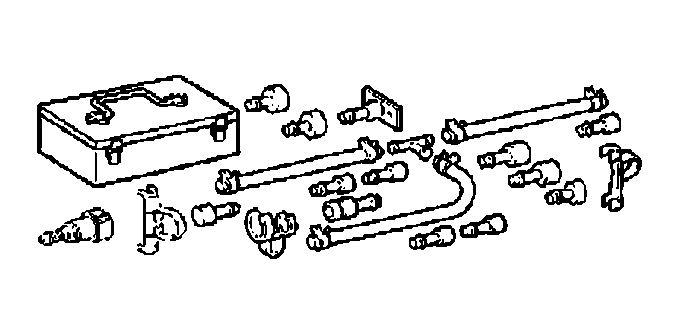

| 09268-41048 | Injection Measuring Tool Set | ||

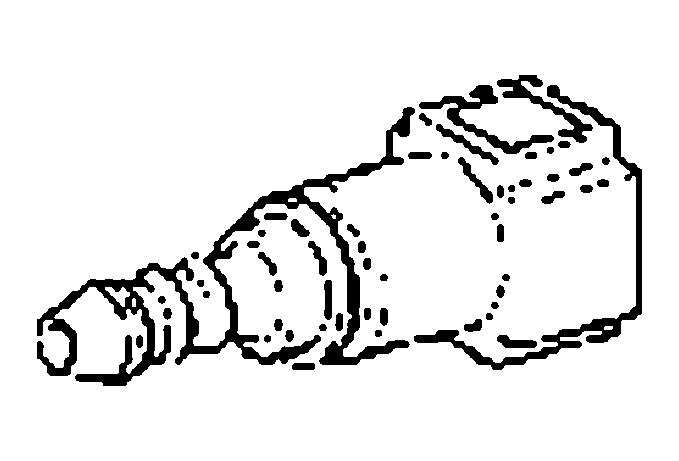

| (09268-41500) | Fuel Tube Connector | ||

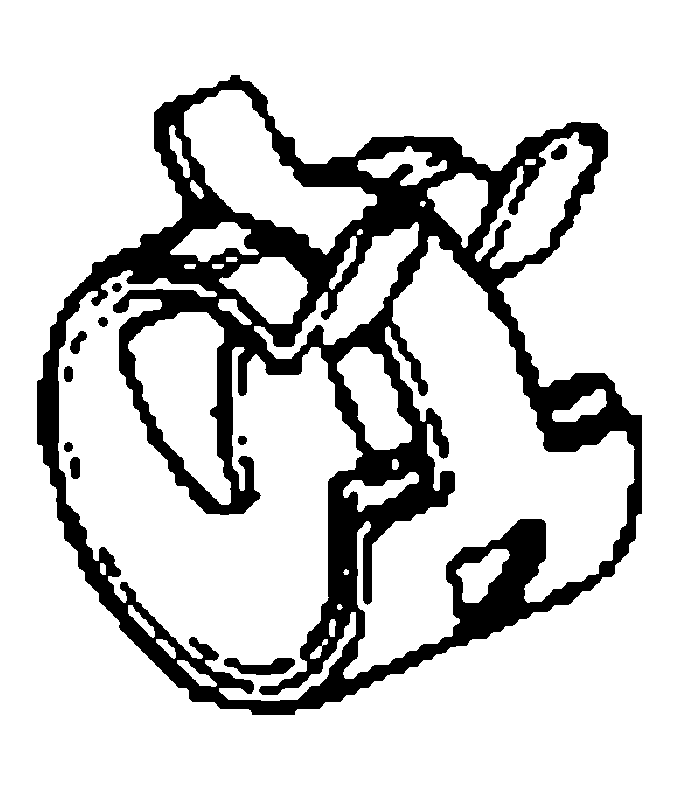

| (90467-13001) | Clip | ||

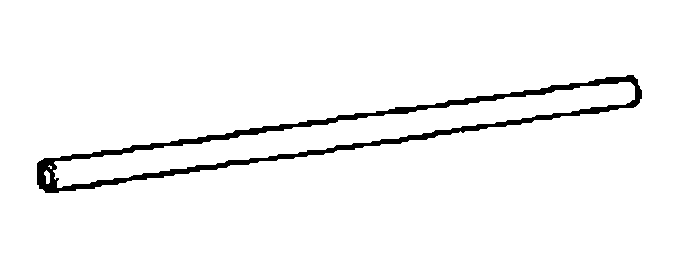

| (95336-08070) | Hose | ||

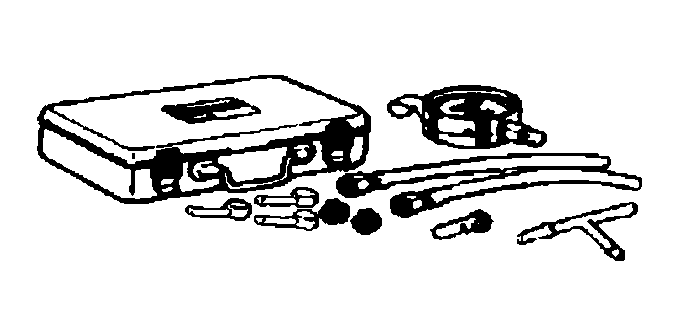

| 09268-45014 | EFI Fuel Pressure Gauge | ||

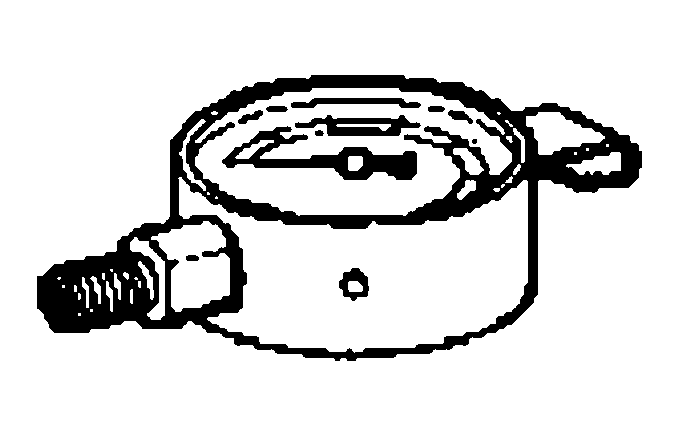

| (09268-41200) | Gauge | ||

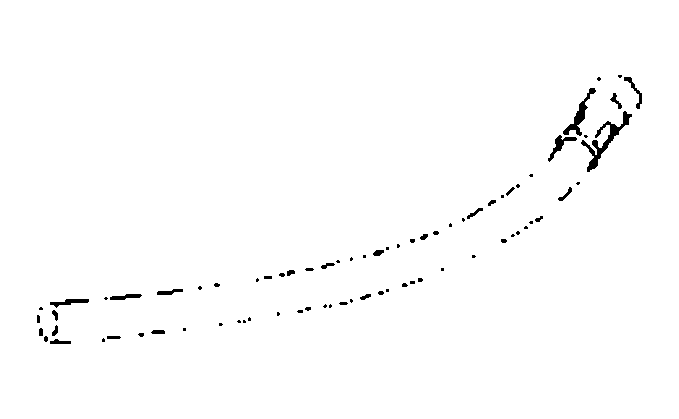

| (09268-41220) | Hose | ||

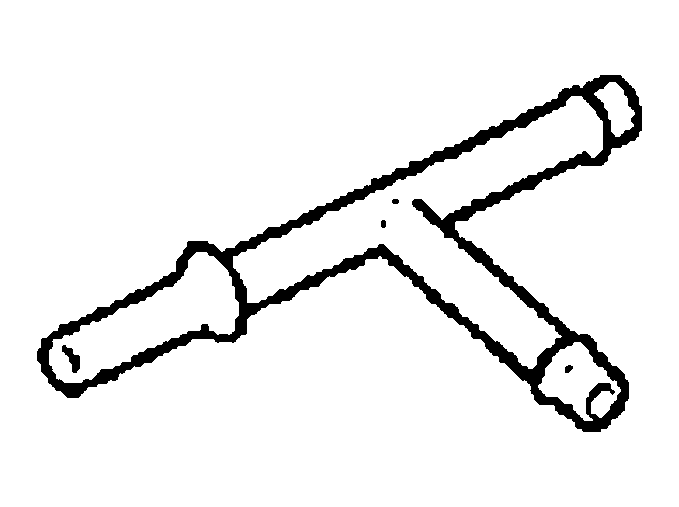

| (09268-41250) | T Joint | ||
| 09808-14020 | Fuel Pump Retainer Tool | ||

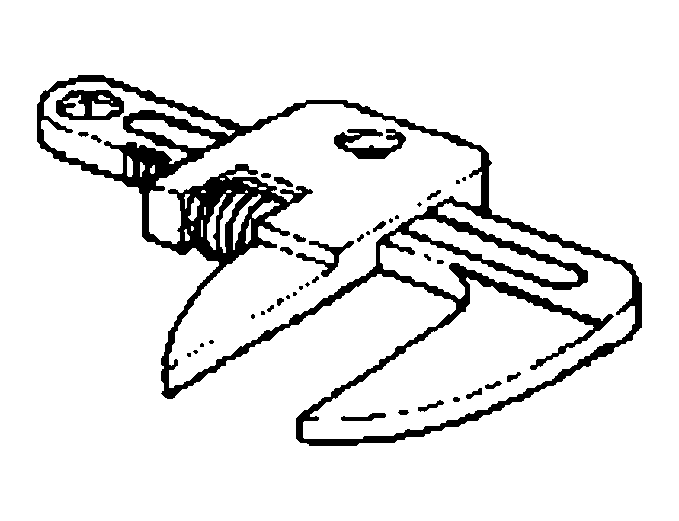

| 09922-10010 | Variable Open Wrench |
