2006 Lexus ES 330FACTORY OEM SERVICE PROCEDURE
Camshaft Timing Oil Control Valve ASSY (3MZ-FE): Replacement
- DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
- REMOVE V-BANK COVER SUB-ASSY (See REPLACEMENT )
- REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSY

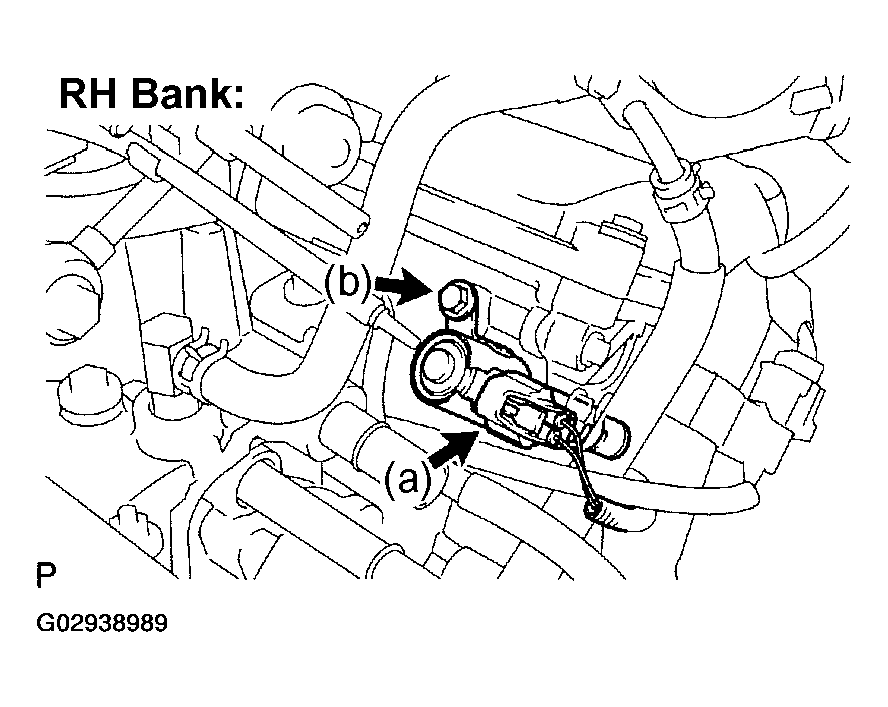

- Disconnect the 2 camshaft timing oil control valve connectors.
- Remove the 2 bolts, then remove the 2 camshaft timing oil control valves.
HINT:
The camshaft timing oil control valve is installed with the bolt.
