Inner Rear View Mirror: Replacement
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- REMOVE MAP LAMP ASSY (See REPLACEMENT )

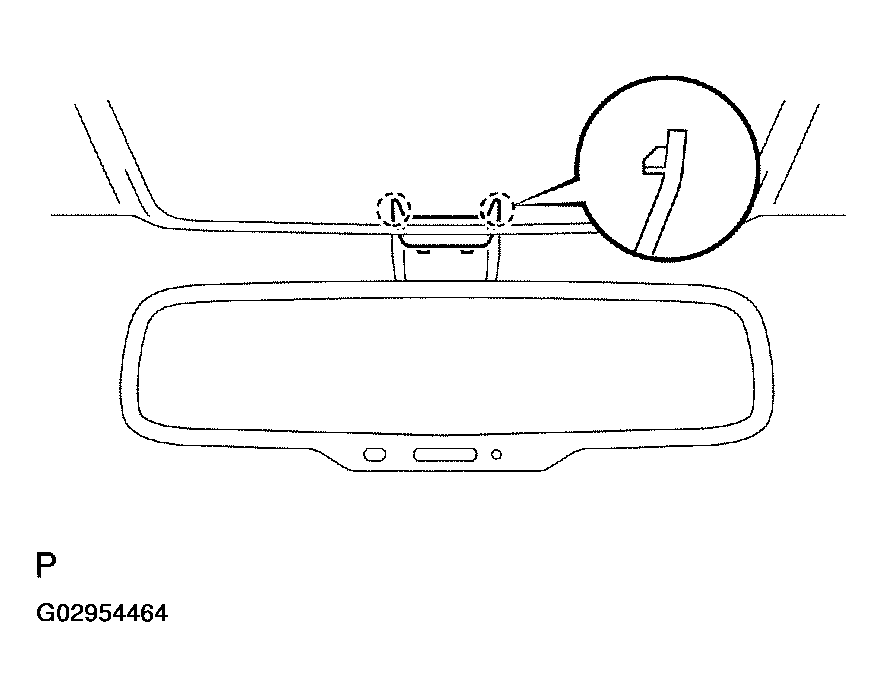

- REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
- Using a screwdriver, remove the holder cover.
HINT:
Tape the screwdriver tip before use.
- Using a screwdriver, remove the holder cover.
- REMOVE INNER REAR VIEW MIRROR ASSY
- Disconnect the mirror connector.

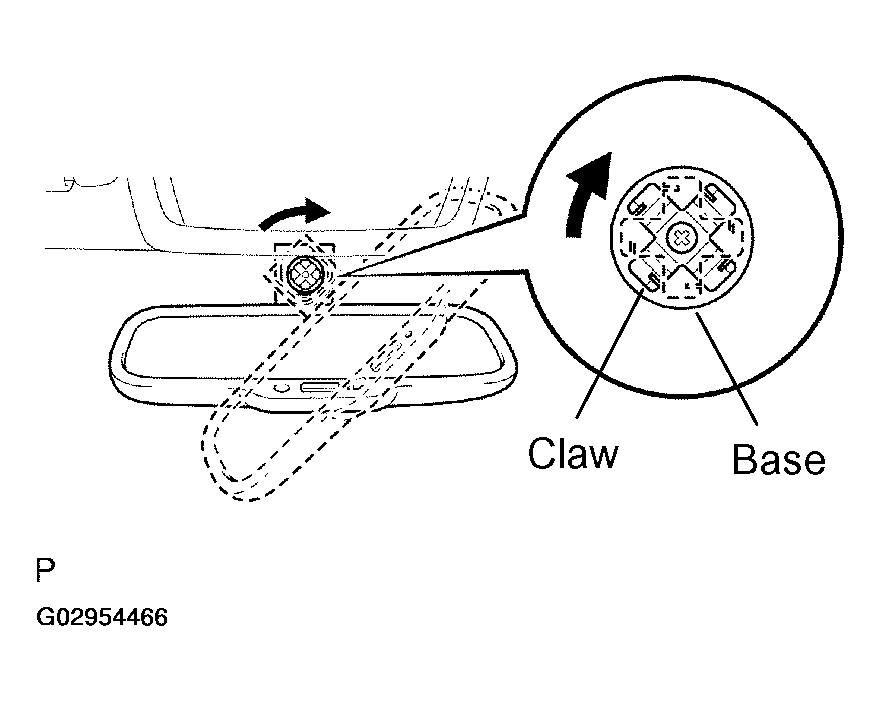

- Remove the mirror by turning the stay part of the mirror counterclockwise.
- INSTALL INNER REAR VIEW MIRROR ASSY

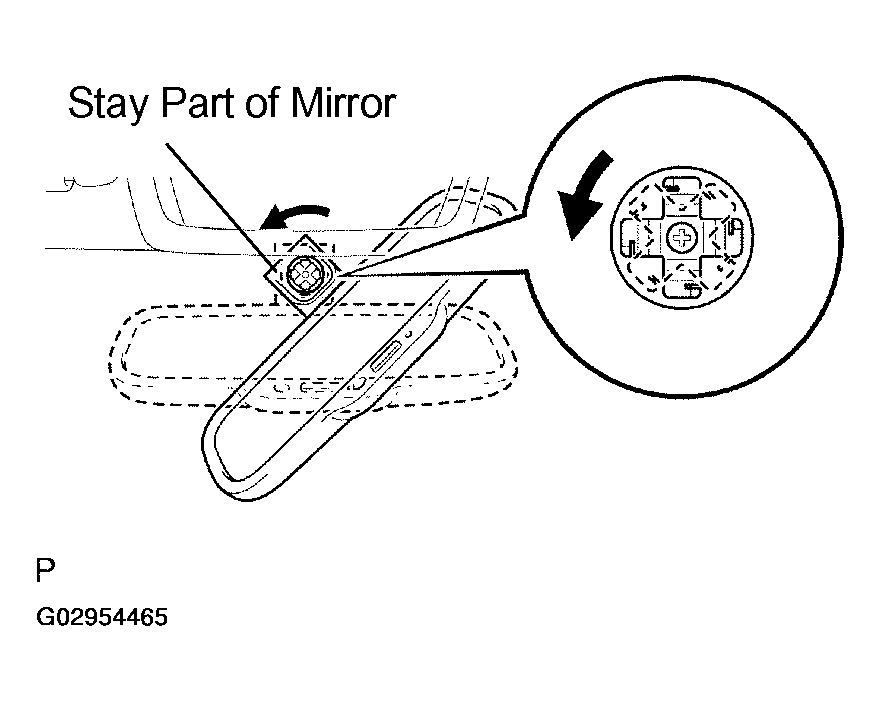

- Match the claw of the stay part of the mirror with the cut part of the base.
- Turn the stay part of the mirror clockwise so that the stay comes to the original position, and then install the mirror.
- Connect the mirror connector.
