Power Window Control System - Diagnostics: Inspection

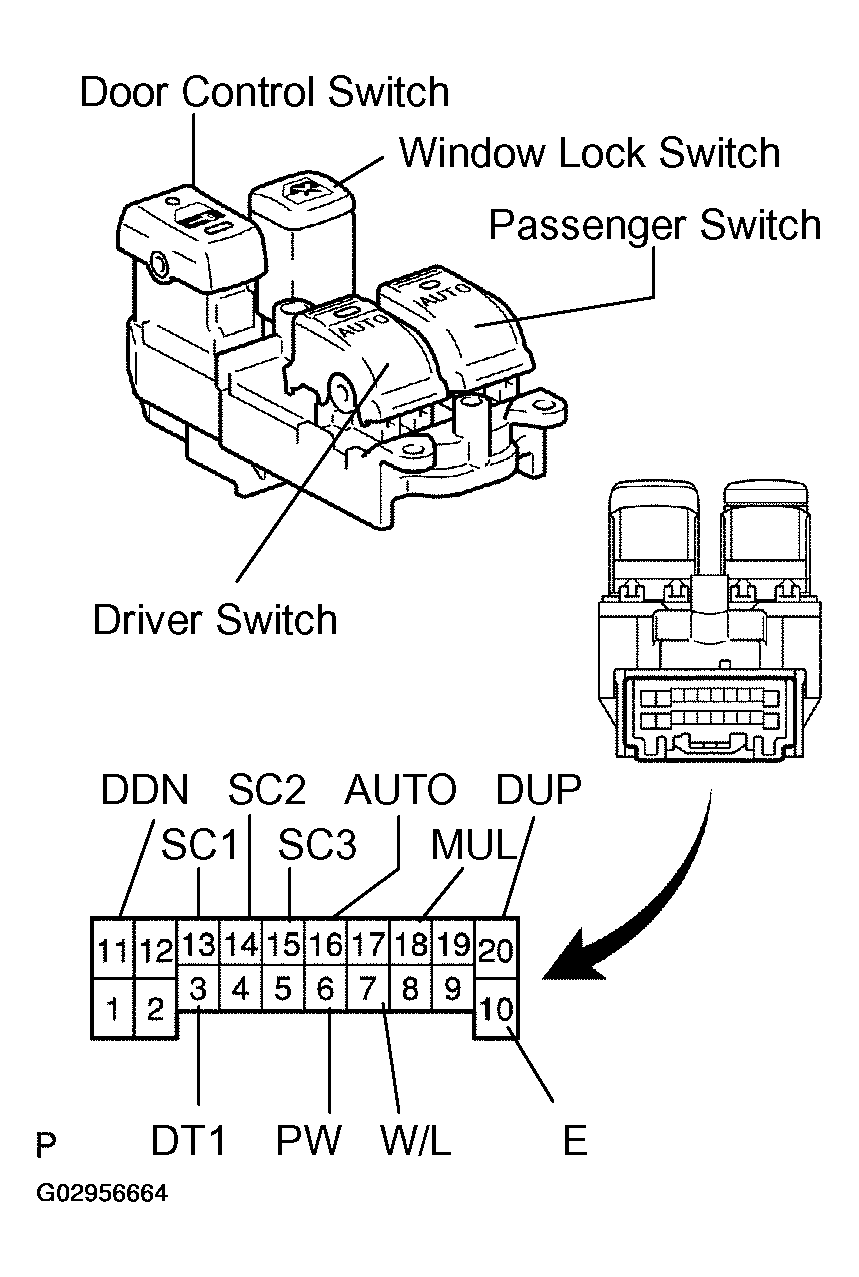

- INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
- Measure the resistance of the switch when the switch is operated.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:
Driver switch
POWER WINDOW REGULATOR MASTER SWITCH ASSY (DRIVER SWITCH)Switch Condition Tester Connection Specified Condition AUTO UP 6 (PW) - 20 (DUP) Below 1 ohms 6 (PW) - 20 (DUP) UP 6 (PW) - 20 (DUP) Below 1 ohms OFF - - DOWN 6 (PW) - 11 (DDN) Below 1 ohms AUTO DOWN 6 (PW) - 11 (DDN) Below 1 ohms 6 (PW) - 16 (AUTO) Passenger switch
POWER WINDOW REGULATOR MASTER SWITCH ASSY (PASSENGER SWITCH)Switch Condition Tester Connection Specified Condition AUTO UP 3 (DT1) - 14 (SC2) Below 1 ohms 3 (DT1) - 15 (SC3) UP 3 (DT1) - 14 (SC2) Below 1 ohms OFF - - DOWN 3 (DT1) - 13 (SC1) Below 1 ohms AUTO DOWN 3 (DT1) - 13 (SC1) Below 1 ohms 3 (DT1) - 15 (SC3) If the result is not as specified, replace the master switch assy.
- Check the window lock switch.
Standard:
WINDOW LOCK SWITCHWindow Lock Switch Condition Tester Condition Specified Condition UNLOCK 7 (W/L) - 6 (PW) Below 1 ohms LOCK 7 (W/L) - 6 (PW) 10 k ohms or higher If the result is not as specified, replace the master switch assy.
- Check the door control switch.
Standard:
DOOR CONTROL SWITCHDoor Control Switch Condition Tester Condition Specified Condition UNLOCK 10 (E) - 18 (MUL) Below 1 ohms LOCK 8 (ML) - 10 (E) Below 1 ohms OFF - - If the result is not as specified, replace the master switch assy.
- Measure the resistance of the switch when the switch is operated.

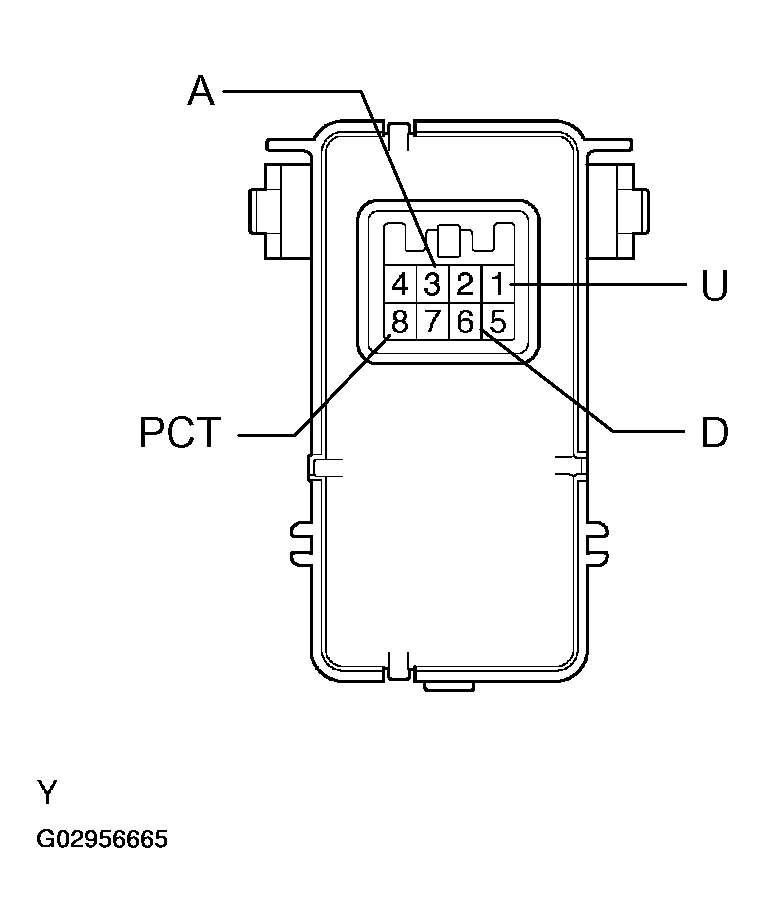

- INSPECT POWER WINDOW REGULATOR SWITCH ASSY
- Measure the resistance of the switch when the switch is operated.
Standard:
POWER WINDOW REGULATOR SWITCH ASSYSwitch Condition Tester Connection Specified Condition AUTO UP 3 (A) - 8 (PCT) Below 1 ohms AUTO UP 1 (U) - 8 (PCT) Below 1 ohms UP 1 (U) - 8 (PCT) Below 1 ohms OFF - - DOWN 6 (D) - 8 (PCT) Below 1 ohms AUTO DOWN 3 (A) - 8 (PCT) Below 1 ohms AUTO DOWN 6 (D) - 8 (PCT) Below 1 ohms If the result is not as specified, replace the regulator switch assy.
- Measure the resistance of the switch when the switch is operated.

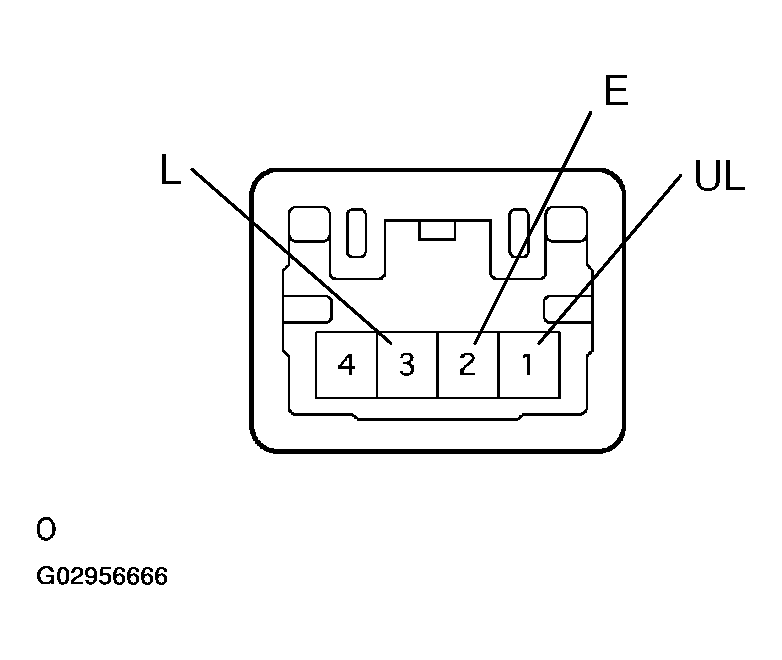

- INSPECT DOOR CONTROL SWITCH ASSY

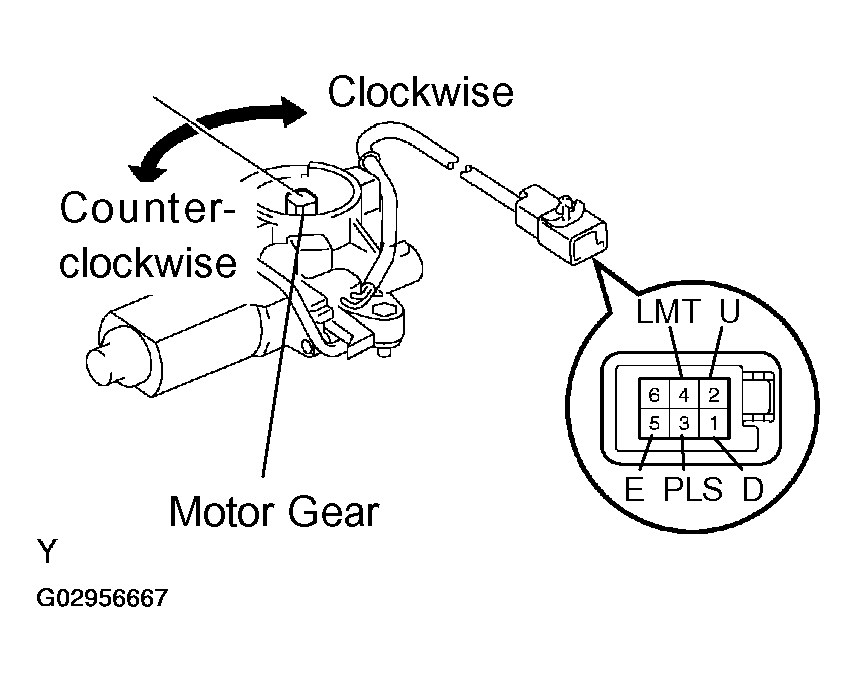

- INSPECT POWER WINDOW REGULATOR MOTOR ASSY LH FRONT
- Inspect operation of the power window regulator motor (for driver side door).
