2005 Lexus RX 330 AWDFACTORY OEM SERVICE PROCEDURE

SFI System (3MZ-FE): Inspection

INSPECT MASS AIR FLOW METER
1. Output voltage inspection.
  1. Apply battery voltage across terminals 1 (+B) and 2 (E2G).
  2. Connect the positive (+) tester probe to terminal VG, and negative (-) tester probe to terminal E2G.
  3. Blow air into the MAF meter, and check that the voltage output fluctuates.
2. Resistance inspection.
  1. Using an ohmmeter, measure the resistance between terminals 4 (THA) and 5 (E2).
    Resistance:

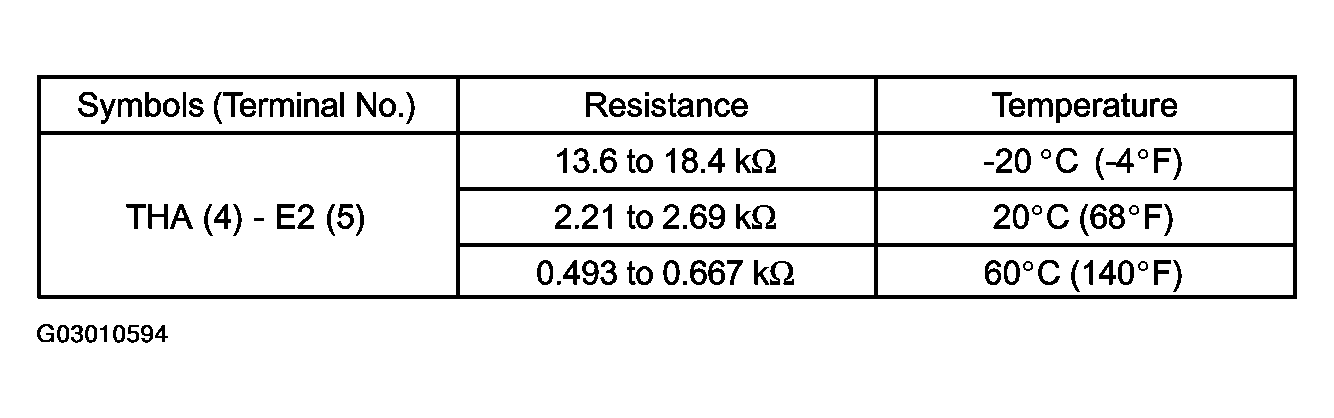

    Fig 1: Mass Air Flow Meter Resistance Table
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
