2005 Lexus RX 330 AWDFACTORY OEM SERVICE PROCEDURE

ECM (3MZ-FE): Replacement

  1. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 2 (See  REPLACEMENT  )
  3. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  REPLACEMENT  )
  4. REMOVE ECM
    1. Remove the 2 wire harness clamps.
    2. Disconnect the 5 ECM connectors.
    3. Remove the 2 nuts, and then remove the ECM.

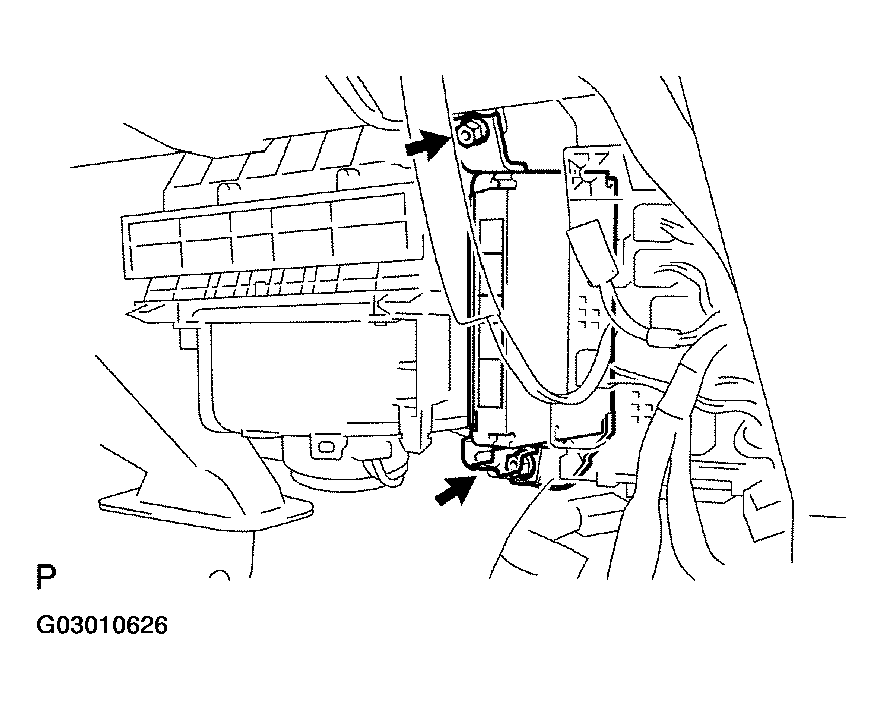

      Fig 1: Removing ECM Nuts
      G03010626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 screws, and then remove the wire harness clamp bracket.

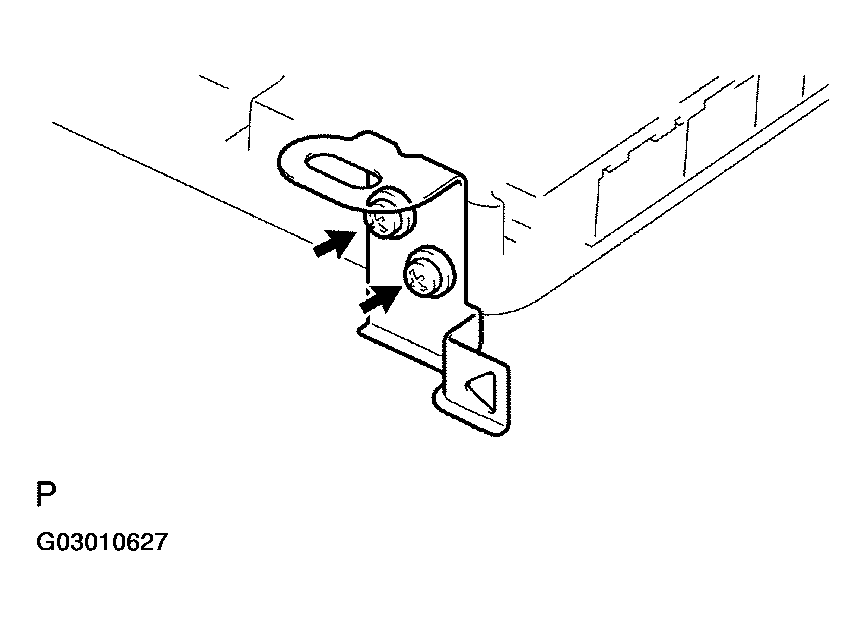

      Fig 2: Removing Wire Harness Clamp Bracket
      G03010627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ECM BRACKET
    1. Remove the 2 screws, and then remove the ECM bracket.

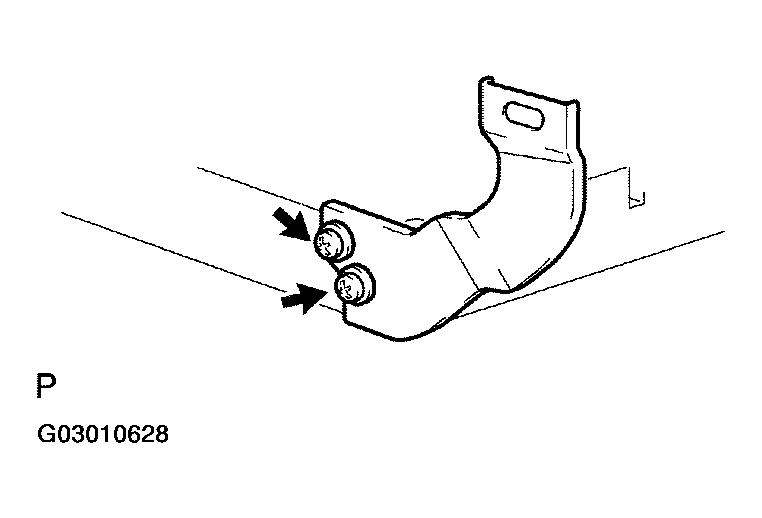

      Fig 3: Removing ECM Bracket
      G03010628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ECM BRACKET NO. 2
    1. Remove the 2 screws, and then remove the ECM bracket.

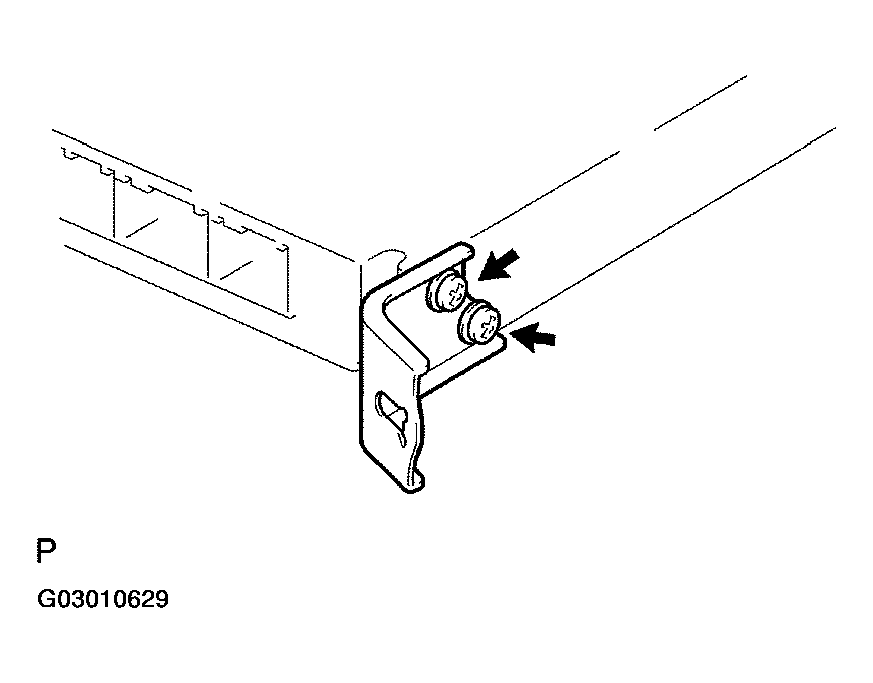

      Fig 4: Removing ECM Bracket No. 2
      G03010629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL ECM BRACKET NO. 2
  8. INSTALL ECM BRACKET
  9. INSTALL ECM

    Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

  10. INSTALL GLOVE COMPARTMENT DOOR ASSY
  11. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 2
  12. INSTALL FRONT DOOR SCUFF PLATE RH
