2005 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Charging Systems: Charging: Generator: Replacement

REPLACE FRONT BEARING
1. Remove the 4 screws, bearing retainer and bearing.

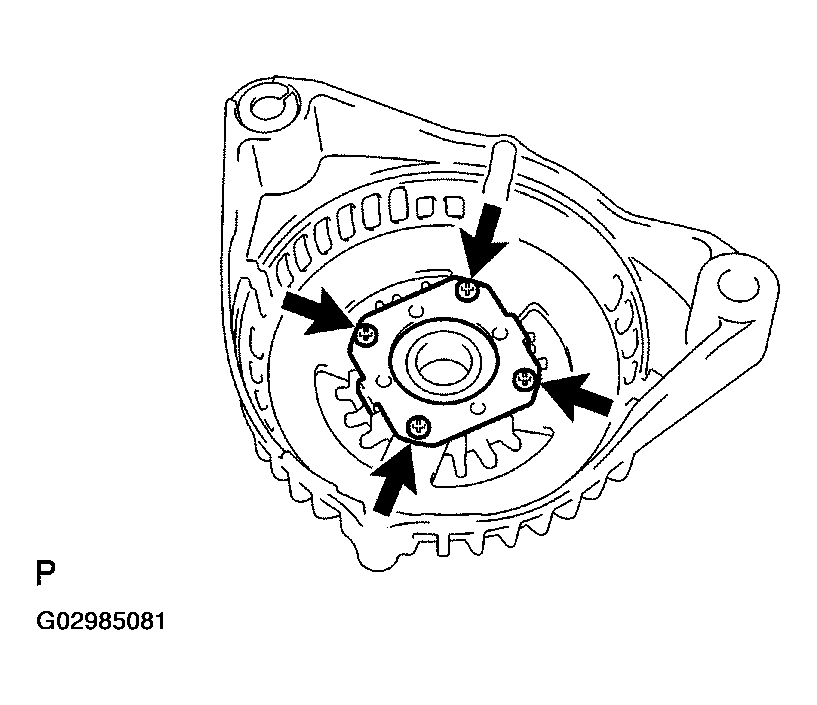

  Fig 1: Locating Front Bearing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap out the bearing.
  SST 09950- 60010 (09951- 00250), 09950- 70010 (09951-07100)

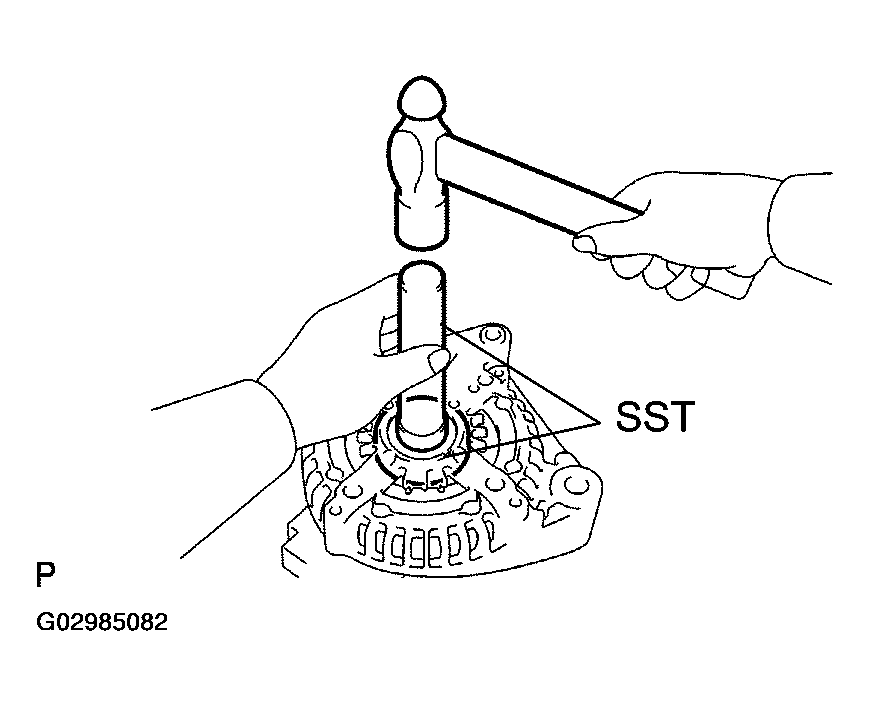

  Fig 2: Taping Out Bearing Using SST And Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in a new bearing.
  SST 09950- 60010 (09951- 00470), 09950- 70010 (09951-07100)
4. Install the bearing retainer with the 4 screws.
  Torque: 2.3 N.m (23 kgf.cm, 20 in.lbf)

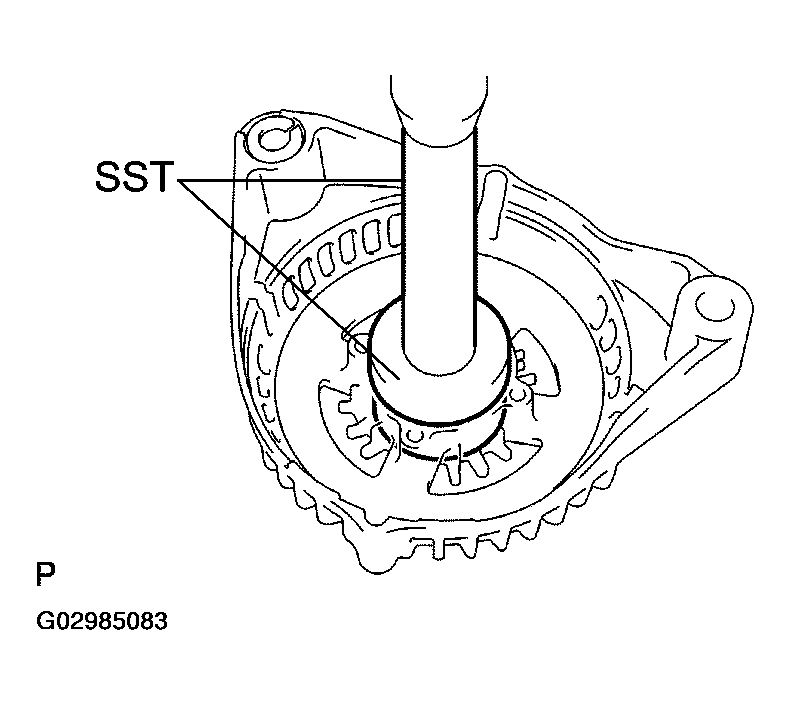

Fig 3: Pressing In New Bearing Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
