2005 Lexus LX 470FACTORY OEM SERVICE PROCEDURE

Charging Systems: Charging: Generator: Installation

  1. INSTALL GENERATOR
    1. Install the generator with the bolt and 2 nuts.

      Torque:

      39 N.m (400 kgf.cm, 29 ft.lbf) for bolt

      39 N.m (400 kgf.cm, 29 ft.lbf) for nut A

      15.5 N.m (158 kgf.cm, 11 ft.lbf) for nut B

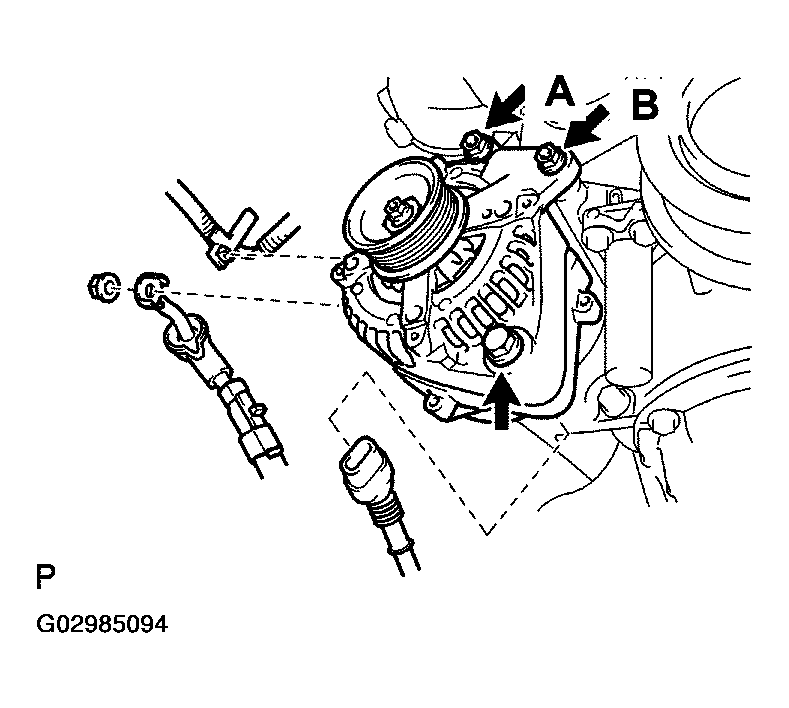

      Fig 1: Installing Generator
      G02985094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the generator connector.
    3. Connect the generator wire with the nut.

      Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

    4. Install the terminal cap.
    5. Install the wire clamp to the cord clip on the generator.
  2. INSTALL PS VANE PUMP (See  INSTALLATION  )
  3. INSTALL RADIATOR ASSEMBLY (See  INSTALLATION  )
  4. INSTALL GENERATOR DRIVE BELT

    Install the belt.

    HINT:

    The pulley bolt for the belt tensioner has a left-hand thread.

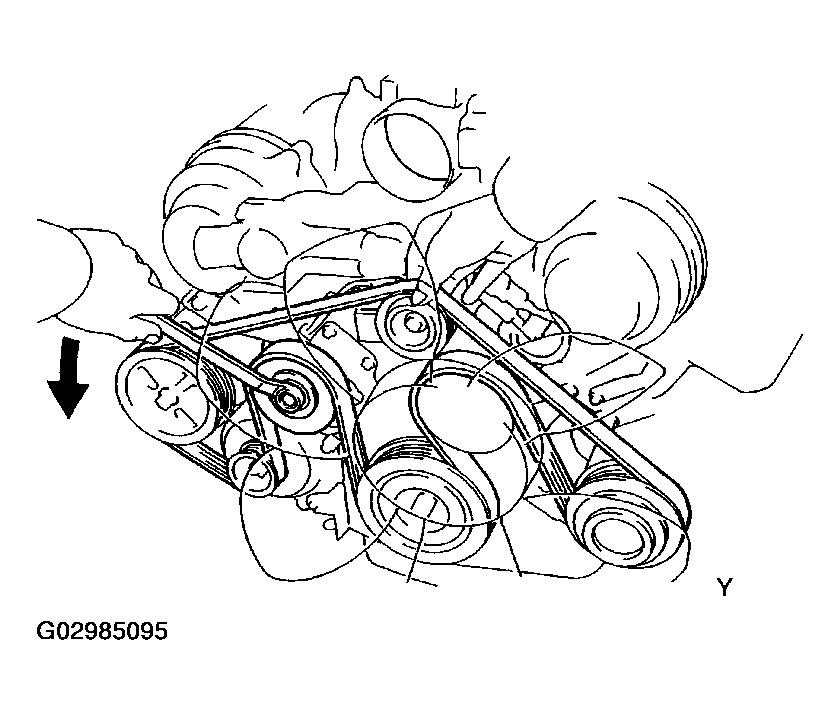

    Fig 2: Installing Generator Drive Belt
    G02985095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. FILL RADIATOR WITH ENGINE COOLANT
  6. START ENGINE AND CHECK FOR LEAKS
  7. RECHECK ENGINE COOLANT LEVEL
  8. PERFORM ON-VEHICLE INSPECTION (See  ON-VEHICLE INSPECTION   )
  9. INSTALL ENGINE UNDER COVER NO. 1
