Charging Systems: Charging: Generator: Disassembly

1. Remove the 3 nuts and end cover.
2. Remove the terminal insulator.

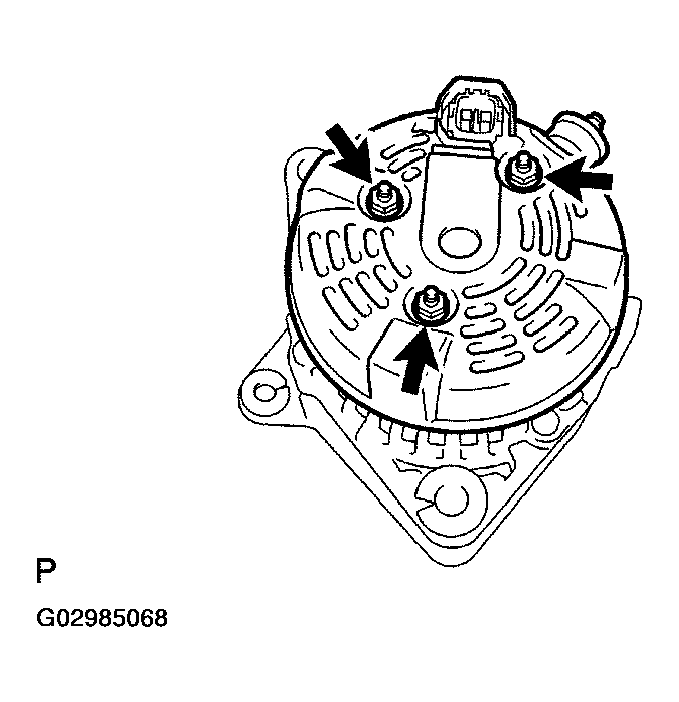

Fig 1: Locating End Cover Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 screws and brush holder.

1. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.

   SST 09820-6301 1

   Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

2. Check that SST (A) is secured to the rotor shaft.

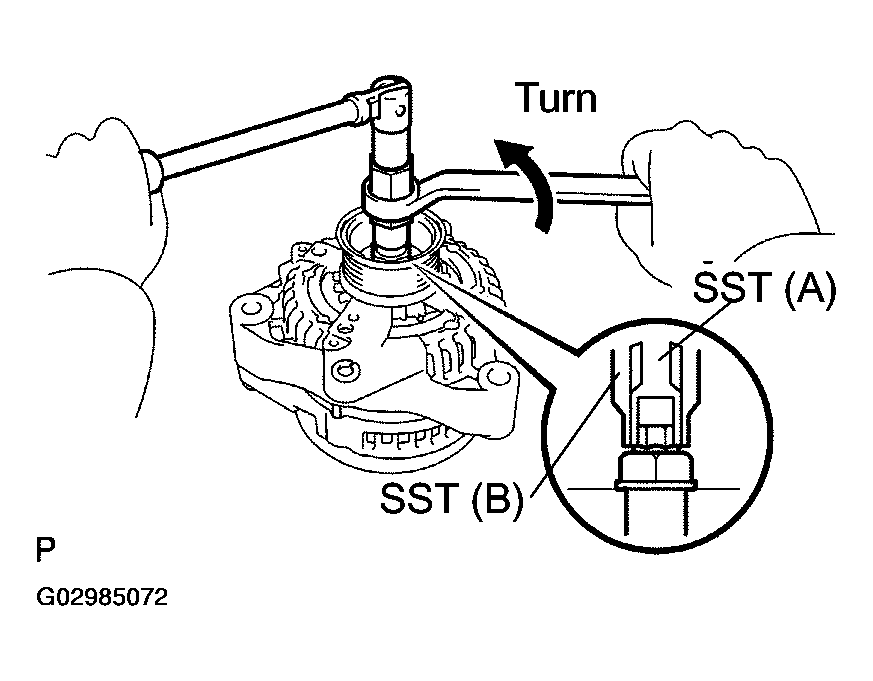

   Fig 2: Removing Pulley Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Mount SST (C) in a vise.
4. Insert SST (B) into SST (C) to attach the pulley nut to SST (C).

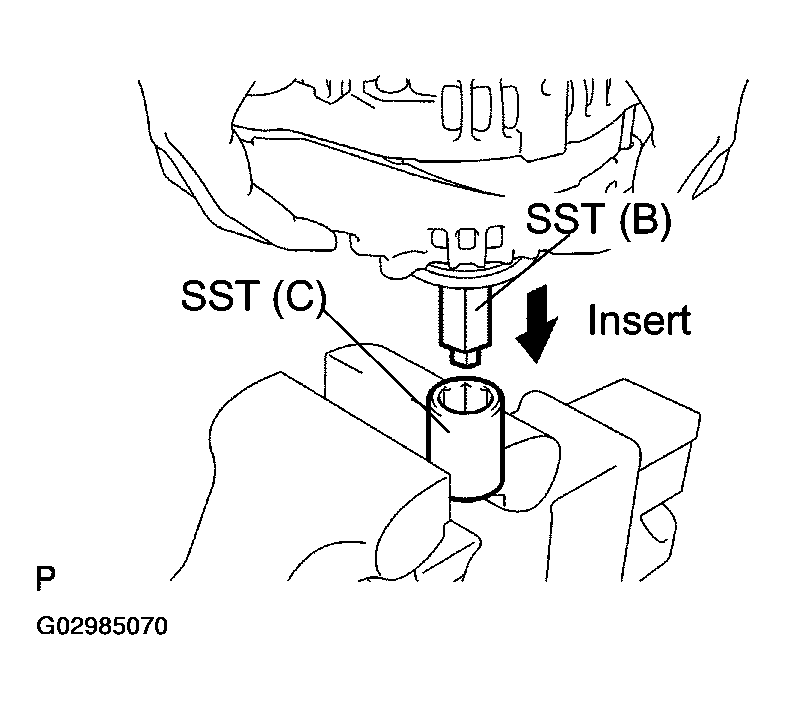

   Fig 3: Inserting SST (B) Into SST (C)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Loosen the pulley nut by turning SST (A) in the direction shown in the illustration.
   NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half of a turn.
6. Remove the generator from SST (C).

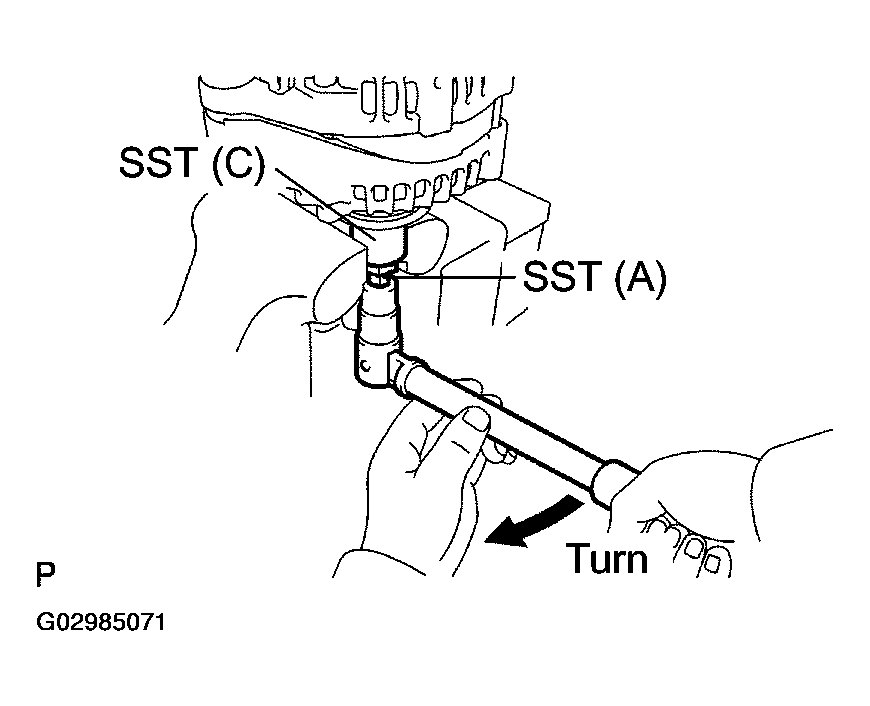

   Fig 4: Loosening Pulley Nut By Turning SST (A)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Turn SST (B) and remove SST (A and B).
8. Remove the pulley nut and pulley

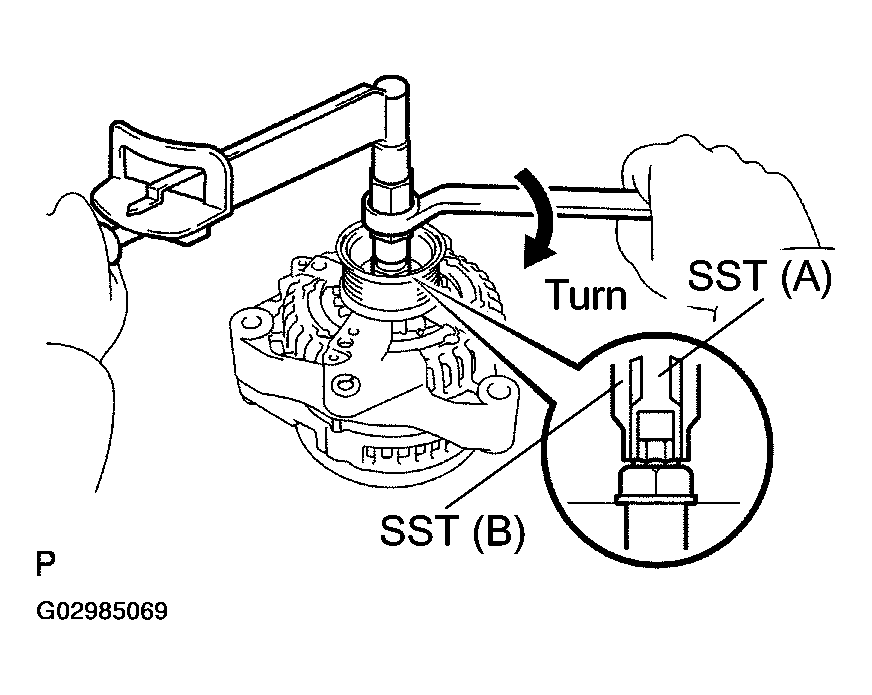

Fig 5: Removing Pulley Nut And Pulley By Turning SST (B)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 bolts.

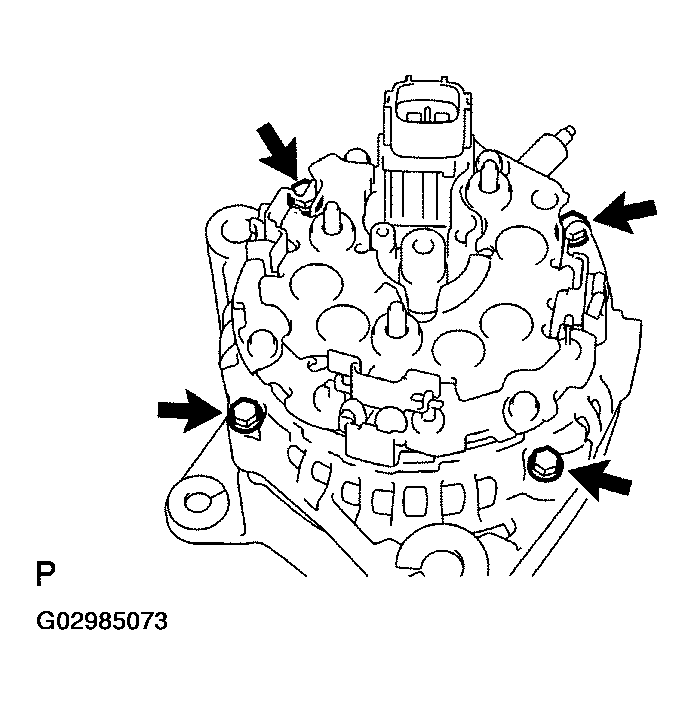

   Fig 6: Locating Rectifier End Frame Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the end frame.

   SST 09950-4001 1 (09951-04020, 09952-04010 09953- 04020, 09954- 04010, 09955- 04071, 09958-0401 1)

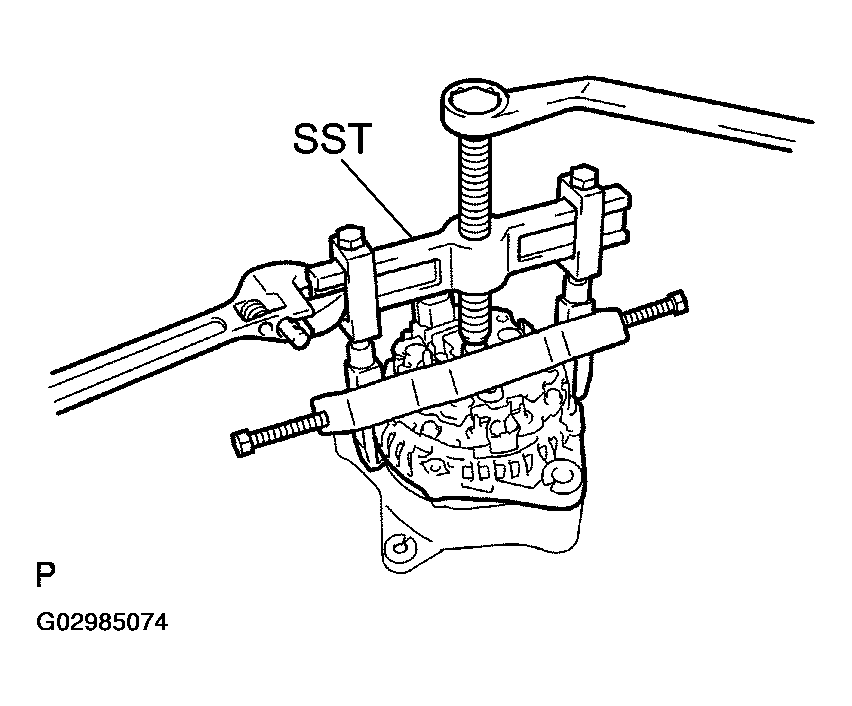

Fig 7: Removing End Frame Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the generator washer and rotor.

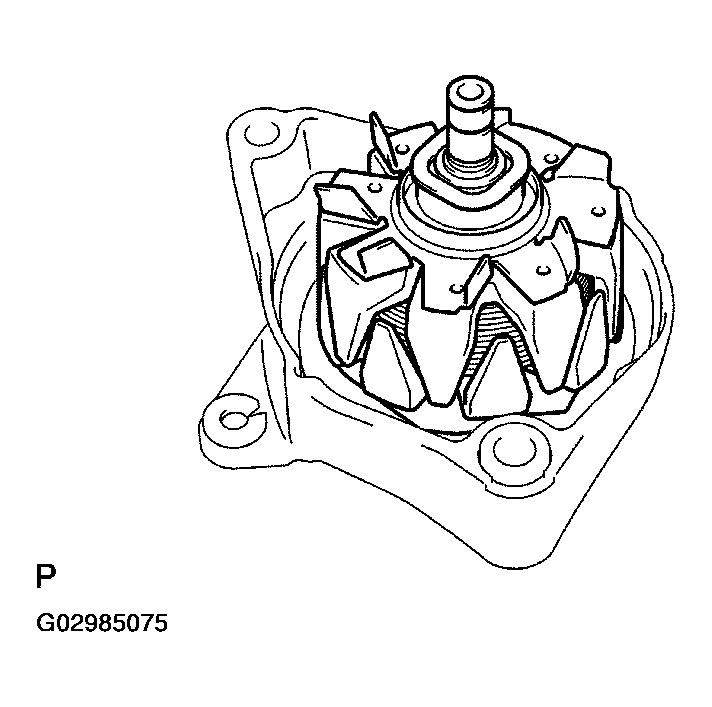

Fig 8: Locating Generator Rotor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
